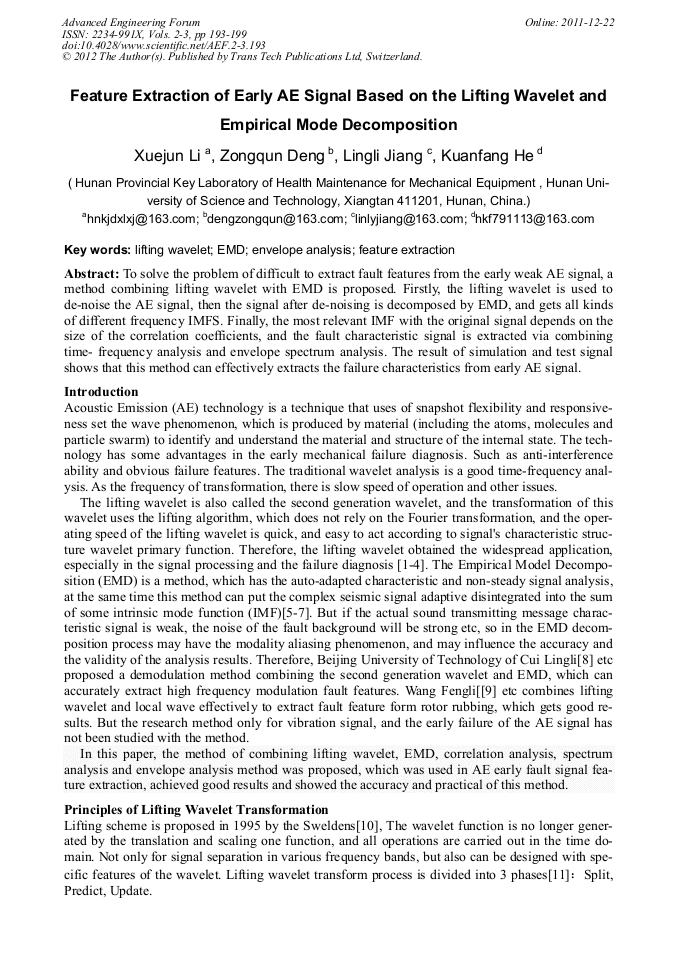

Feature Extraction of Early AE Signal Based on the Lifting Wavelet and Empirical Mode Decomposition

Abstract:

To solve the problem of difficult to extract fault features from the early weak AE signal, a method combining lifting wavelet with EMD is proposed. Firstly, the lifting wavelet is used to de-noise the AE signal, then the signal after de-noising is decomposed by EMD, and gets all kinds of different frequency IMFS. Finally, the most relevant IMF with the original signal depends on the size of the correlation coefficients, and the fault characteristic signal is extracted via combining time- frequency analysis and envelope spectrum analysis. The result of simulation and test signal shows that this method can effectively extracts the failure characteristics from early AE signal.

• Periodical: Advanced Engineering Forum (Volumes 2-3)
• Pages: 193-199
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.2-3.193
• Online since: December 2011
• Authors: Xue Jun Li, Zong Qun Deng, Ling Li Jiang, Kuan Fang He
• Keywords: Empirical Mode Decomposition (EMD), Envelope Analysis, Feature Extraction, Lifting Wavelet

References

[1] Jing Shuangxi, Li Shenghua, Hua Wei. The second generation wavelet de- noising method in the application of fault diagnosis [J]. Coal Electrical Machinery, 2007, 2: 3-5.

[2] Duan Chendong, He Zhengjia. The second generation wavelet de-noising method applies in fault diagnosis system [J]. Small Miniature Computer System, 2009, 2004, 25(7): 1341-1343.

[3] Shen Xiaoan. The ultrasonic signal de-noising technology based on lifting wavelet transform [J]. Engineering Design Journal, 2009, 16(3): 227-229.

[4] Liu Shuchun, Pan Ziwei, Song Miao. A new method research of the second generation wavelet in vibration signal de-noising [J]. Mechanical Transmission, 2008, 3: 64-68. 18-21.

[5] Sun Wensheng, Wang Fengtao, Zhang Zhixin etal. EMD noise reduction and spectrum kurtosis method in rolling bearing early fault diagnosis applications [J]. Journal of Vibration and Shock, 2010, 29(3)18-21.

[6] Gao Lixin, Wu Lijuan, Zhang Jianyu. An application in gear incipient failure diagnosis based on EMD demodulation method [J]. Journal of Beijing University of Technology, 2009, 35 (7): 876-880.

[7] Long Kai, Li Gangcheng. A method of incipient fault diagnosis for rolling bearing based on hilbert transform and weibull Distribution [J]. Science technology and Engineering, 2010, 10 (17): 4163-4167.

[8] Cui Lingli, Gao Lixin, Duan Haichen et al. Composite Fault Diagnosis Method. Based on Second Generation of Wavelet and EMD [J]. Journal of Vibration and Shock, 2008, 27(6): 1-3.

[9] Wang Fengli, Zhao Deyou. Fault feature extraction based on lifting wavelet and local wave [J]. Chinese Journal of Scientific Instrument, 2010, 31(4): 789-79 3.

[10] Sweldens W. The lifting scheme A construction of second generation wavelet constructions [J]. SIAM J. Math. Aanal. 1997, 29(2): 511-546.

DOI: 10.1137/s0036141095289051

[11] Zhang Defeng. MATLAB Wavelet Analysis [M]. Beijing: Machinery Industry Press, (2009).

[12] Cheng Junsheng, Yu Dejie, Yang Yu. Application of EMD to local rub-impact fault diagnosis in rotor systems [J]. Journal of Vibration, Measurement and Diagnosis, 2006, 26(1): 24-27.

[13] Liao Chuanjun, Luo Xiaoli, Li Xuejun. Application of wavelet packet in feature extraction of acoustic emission signal [J]. Journal of Electronic Measurement and Instrument, 2008, 22 (4): 79-85.

[14] Mittrakovic D, Grabec I Sedmak S. Simulation of AE signals and signal analysis systems [J]. Ultrasonic, 1985, 23(9): 227- 232.

DOI: 10.1016/0041-624x(85)90018-6

[15] Mei Hongbin. The Rolling bearing of vibration detection and diagnosis [M]. Beijing: Machinery Industry Press, (1996).
