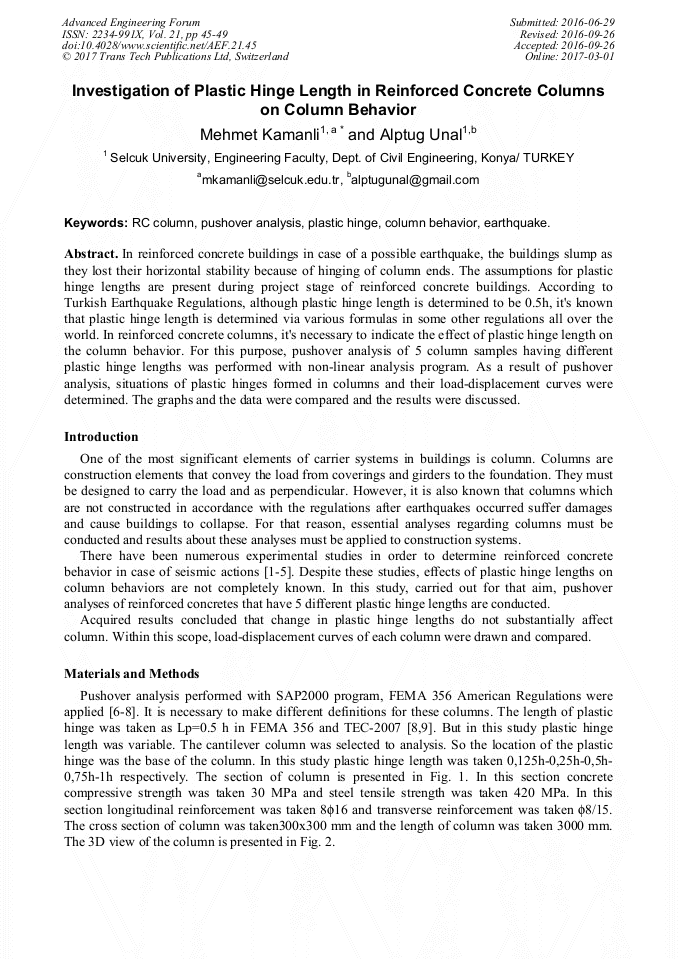

Investigation of Plastic Hinge Length in Reinforced Concrete Columns on Column Behavior

Abstract:

In reinforced concrete buildings in case of a possible earthquake, the buildings slamp as they lost their horizontal stability because of hinging of column ends. The assumptions for plastic hinge lengths are present during project stage of reinforced concrete buildings. According to Turkish Earthquake Regulations, although plastic hinge length is determined to be 0.5h, it's known that plastic hinge length is determined via various formulas in some other regulations all over the world. In reinforced concrete columns, it's necessary to indicate the effect of plastic hinge length on the column behavior. For this purpose, pushover analysis of 5 column samples having different plastic hinge lengths was performed with non-linear analysis program. As a result of pushover analysis, situations of plastic hinges formed in columns and their load-displacement curves were determined. The graphs and the data were compared and the results were discussed.

• Periodical: Advanced Engineering Forum (Volume 21)
• Pages: 45-49
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.21.45
• Online since: March 2017
• Authors: Mehmet Kamanli*, Alptug Unal
• Keywords: Column Behavior, Earthquake, Plastic Hinge, Pushover Analysis, RC Column

References

[1] Coffman HL, Marsh ML, Brown CB, (1993), Seismic Durability of Retrofitted Reinforced-Concrete Columns, J. Struct Eng-ASCE, 119, 5, 1643-61.

DOI: 10.1061/(asce)0733-9445(1993)119:5(1643)

[2] Hamilton CH, Pardoen GC, Kazanjy RP, Hose YD, (2001), Experimental And Analytical Assessment Of Simple Bridge Structures Subjected To Near-Fault Ground Motions,. Structural Engineering, 2, 8.

DOI: 10.1016/b978-008043948-8/50110-7

[3] Lehman D, Moehle J, Mahin S, Calderone A, Henry L, (2004), Experimental evaluation of the seismic performance of reinforced concrete bridge columns,. J Struct Eng- ASCE, 130, 6, 869-79.

DOI: 10.1061/(asce)0733-9445(2004)130:6(869)

[4] Saatcioglu M, Baingo D, (1999), Circular high-strength concrete columns under simulated seismic loading,. J Struct Eng-Asce, 125, 3, 272-80.

DOI: 10.1061/(asce)0733-9445(1999)125:3(272)

[5] Priestley MJN, Benzoni G, (1996), Seismic performance of circular columns with low longitudinal reinforcement ratios,. ACI Struct J, 93, 4, 474-85.

DOI: 10.14359/9706

[6] SAP2000a Version 15, CSI Company, Berkeley, California, USA.

[7] SAP2000b User Manual: CSI Company, Berkeley, California, USA.

[8] FEMA 273/356, (1996), Federal Emergency Management Agency, Guidelines for the Seismic Rehabilitation of Buildings, Redwood City, California, USA.

[9] TEC-2007, (2007), Turkish Code for the Seismic Design of Structures, Turkey.

[10] Inel, M., Ozmen, H. B., (2008), Seismic performance evaluation of school buildings in Turkey, Structural Engineering and Mechanics, 30-5, 535-558.

DOI: 10.12989/sem.2008.30.5.535
