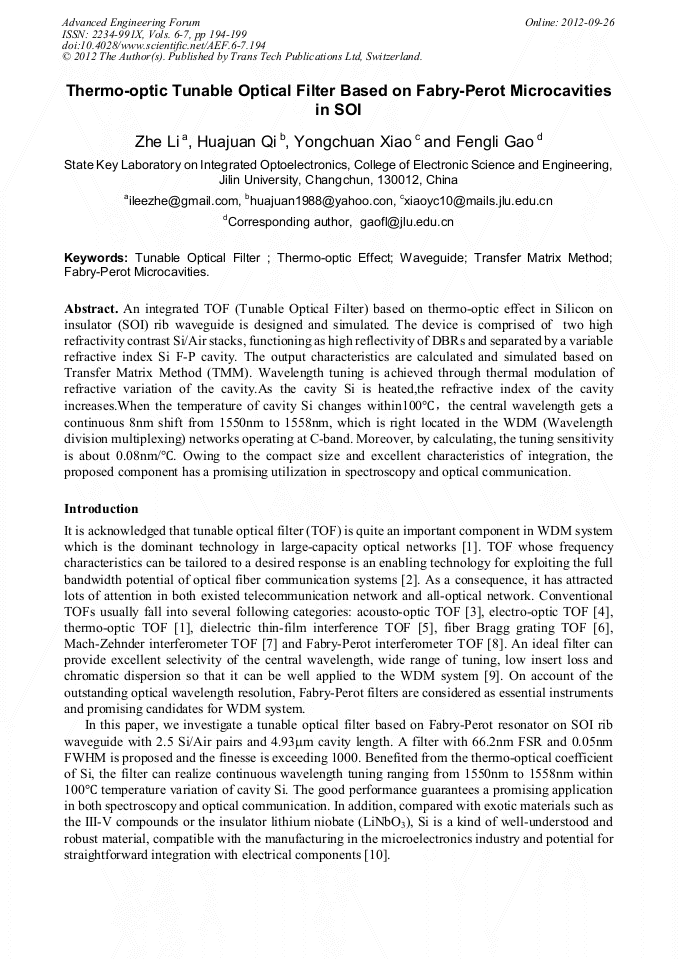

Thermo-Optic Tunable Optical Filter Based on Fabry-Perot Microcavities in SOI

Abstract:

An integrated TOF (Tunable Optical Filter) based on thermo-optic effect in Silicon on insulator (SOI) rib waveguide is designed and simulated. The device is comprised of two high refractivity contrast Si/Air stacks, functioning as high reflectivity of DBRs and separated by a variable refractive index Si F-P cavity. The output characteristics are calculated and simulated based on Transfer Matrix Method (TMM). Wavelength tuning is achieved through thermal modulation of refractive variation of the cavity.As the cavity Si is heated,the refractive index of the cavity increases.When the temperature of cavity Si changes within100°C，the central wavelength gets a continuous 8nm shift from 1550nm to 1558nm, which is right located in the WDM (Wavelength division multiplexing) networks operating at C-band. Moreover, by calculating, the tuning sensitivity is about 0.08nm/°C. Owing to the compact size and excellent characteristics of integration, the proposed component has a promising utilization in spectroscopy and optical communication.

• Periodical: Advanced Engineering Forum (Volumes 6-7)
• Pages: 194-199
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.6-7.194
• Online since: September 2012
• Authors: Zhe Li, Hua Juan Qi, Yong Chuan Xiao, Feng Li Gao
• Keywords: Fabry-Perot Microcavities, Thermo-Optic Effect, Transfer Matrix Method (TMM), Tunable Optical Filter, Waveguide

References

[1] Sung-Sik Yun and Jong-Hyun Lee 2003 J. Micromech. Microeng. 13 721.

[2] Stone J and Stulz L W 1987 Electron. Lett. 23 781–3.

[3] H. S. Kim, S. H. Yun, I. K. Kwang, and B. Y. Kim, 1997 Opt. Lett. 22, 1476–1478.

[4] A d'Alessandro, D Donisi, L De Sio, R Beccherelli, R Asquini, R Caputo, and C Umeton 2008 Opt. Express 16 9254–9260.

DOI: 10.1364/oe.16.009254

[5] Stéphane Larouche and Ludvik Martinu 2008 J. Appl. Phys. 47 C219-C230.

[6] Allan C L, Wong, Marco Giovinazzo, Hwa-Yaw Tam, Chao Lu, and Gang-Ding Peng 2010 J. Lightwave Technol. 28 898-904.

[7] Stone J and Stulz L W 1987 Electron. Lett. 23 781–3.

[8] Wooten L, Stone R L, Miles W and Bradly E M 1996 J. Lightwave Technol. 14 2530–6.

[9] Zhengxuan Li, Lilin Yi, Yan Zhang, Yi Dong, Shilin Xiao and Weisheng Hu 2012 Photonics Technology Letters, IEEE PP 1-1.

DOI: 10.1109/csndsp.2012.6292682

[10] Mutsunori Uenuma and Teruaki Motooka 2009 Opt. Lett. 34 599-601.

[11] Pogossian, S P, L Vescan and A Vonsovici 1998 Lightwave Technology Journal 16 1851-1853.

DOI: 10.1109/50.721072

[12] Weidong S, L Xiangdong, H Biqin, Z Yong, L Xu and G Peifu 2004 Optics Communications 239 153-160.

DOI: 10.1016/j.optcom.2004.05.015
