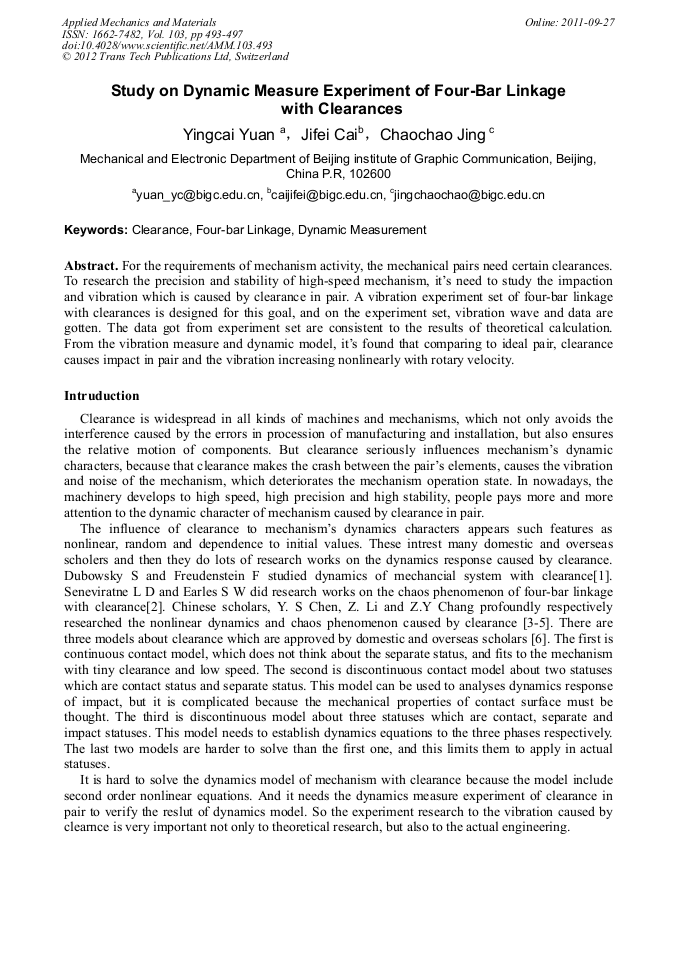

Study on Dynamic Measure Experiment of Four-Bar Linkage with Clearances

Abstract:

For the requirements of mechanism activity, the mechanical pairs need certain clearances. To research the precision and stability of high-speed mechanism, it’s need to study the impaction and vibration which is caused by clearance in pair. A vibration experiment set of four-bar linkage with clearances is designed for this goal, and on the experiment set, vibration wave and data are gotten. The data got from experiment set are consistent to the results of theoretical calculation. From the vibration measure and dynamic model, it’s found that comparing to ideal pair, clearance causes impact in pair and the vibration increasing nonlinearly with rotary velocity.

• Periodical: Applied Mechanics and Materials (Volume 103)
• Pages: 493-497
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.103.493
• Online since: September 2011
• Authors: Ying Cai Yuan, Ji Fei Cai, Chao Chao Jing
• Keywords: Clearance, Dynamic Measurement, Four-Bar Linkage

References

[1] Dubowsky S, Freudenstein F. Dynamics of Analysis of Mechanical Systems with Clearance. Part 1 Formation of Dynamic model, Part 2 Dynamic Response. ASME, Vol. 93B (1971), pp.324-329.

DOI: 10.1115/1.3427895

[2] Seneviratne L D, Earles S W. Chaotic Behavior Exhibited During Contactless in Clearance Joint of Four-bar Mechanism. MMT, Vol. 27(1992), pp.307-321.

DOI: 10.1016/0094-114x(92)90021-9

[3] Zhongyu Wang, Yuxin Wang, Ce Zhang and Mingxue Qiu. The Chaos Phenomenon of Mechanism with Clearance, Machine Science and Technology, Vol. 3 (1998), pp.345-347 (in Chinese).

[4] Yushu Chen, Quan Meng. Bifurcation in Nonlinear Rotor-bearing System. Journal of Vibration Engineering, Vol. 9(1995), pp.266-275.

[5] Zhe Li. Dynamic Research of Planar Linkage Mechanism Think about Pair's Clearance and Component's Elasticity. Beijing University of Technology (1991), (in Chinese).

[6] Yiyong Yang, Wende Jin. Dynamics of Mechanical System, edited by Tsinghua Publication, Beijing (2009), (in Chinese).

[7] Yingcai Yuan，Yilun Liu，Yan Li. The Robust Design of Four-bar Linkage with Clearance Based on Sensitivity Analysis. Applied Mechanics and Materials, Vol. 34-35(2010), pp.1656-1660.

DOI: 10.4028/www.scientific.net/amm.34-35.1656

[8] Yingcai Yuan, Yilun Liu, Li Yan. Optimization Design of the Web Press's Fold Mechanism Based on Robustness. Advanced Material Research, Vol. 174(2011), pp.277-281.

DOI: 10.4028/www.scientific.net/amr.174.277

[9] Yingcai Yuan, Yilun Liu, Yiming Wang. Nonlinear Dynamics Response of Offset Press' Fold Mechanism with Clearances. Journal of Central South University (Science and Technology), Vol. 42(2011), pp.972-976 (in Chinese).
