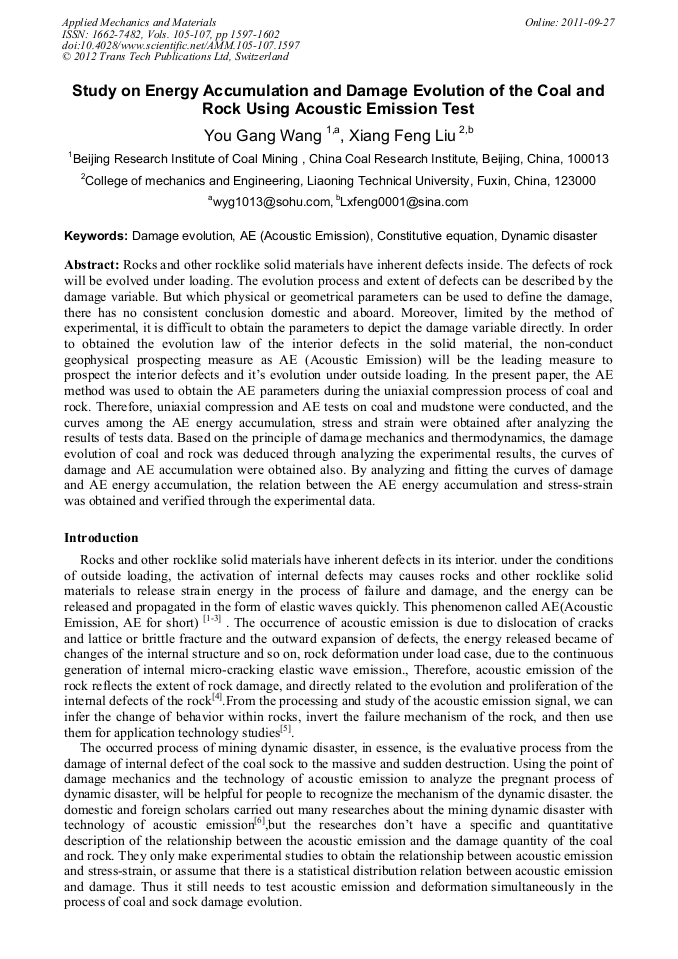

Study on Energy Accumulation and Damage Evolution of the Coal and Rock Using Acoustic Emission Test

Abstract:

Rocks and other rocklike solid materials have inherent defects inside. The defects of rock will be evolved under loading. The evolution process and extent of defects can be described by the damage variable. But which physical or geometrical parameters can be used to define the damage, there has no consistent conclusion domestic and aboard. Moreover, limited by the method of experimental, it is difficult to obtain the parameters to depict the damage variable directly. In order to obtained the evolution law of the interior defects in the solid material, the non-conduct geophysical prospecting measure as AE (Acoustic Emission) will be the leading measure to prospect the interior defects and it’s evolution under outside loading. In the present paper, the AE method was used to obtain the AE parameters during the uniaxial compression process of coal and rock. Therefore, uniaxial compression and AE tests on coal and mudstone were conducted, and the curves among the AE energy accumulation, stress and strain were obtained after analyzing the results of tests data. Based on the principle of damage mechanics and thermodynamics, the damage evolution of coal and rock was deduced through analyzing the experimental results, the curves of damage and AE accumulation were obtained also. By analyzing and fitting the curves of damage and AE energy accumulation, the relation between the AE energy accumulation and stress-strain was obtained and verified through the experimental data.

• Periodical: Applied Mechanics and Materials (Volumes 105-107)
• Pages: 1597-1602
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.105-107.1597
• Online since: September 2011
• Authors: You Gang Wang, Xiang Feng Liu
• Keywords: Acoustic Emission (AE), Constitutive Equation, Damage Evolution, Dynamic Disaster

References

[1] Katsuyama. K. FENG Xia-ting, translator. Application of AE Techniques. ( Metallurgy Industry Press, China, 1996).

[2] Y.H. Zou, G.G. Wen and Q.T. Hu: Journal of China Coal Society, Vol. 29(2004) No. 6. P. 663 (in Chinese).

[3] X.M. Peng, Y.H. Sun and A.N. Li: World Geology, Vol. 19. 2000. No. 3. P. 303 (in Chinese).

[4] S.H. Tang and Z.G. Wu: Mining Research and Development, Vol. 20. 2000 No. 1. P. 16(in Chinese).

[5] Z. l. Wu: Journal of China Coal Society, Vol. 32. 2005, No. 1. P. 27 (in Chinese).

[6] Lockner D: Int J rock Mech Min Sci Geomech Abstr. Vol. 30. 1993. No. 7. P. 893.

[7] Y. p. Qin: Chinese Journal of Rock Mechanics and Engineering, Vol. 20. 2001, No. 4. P. 560 (in Chinese).
