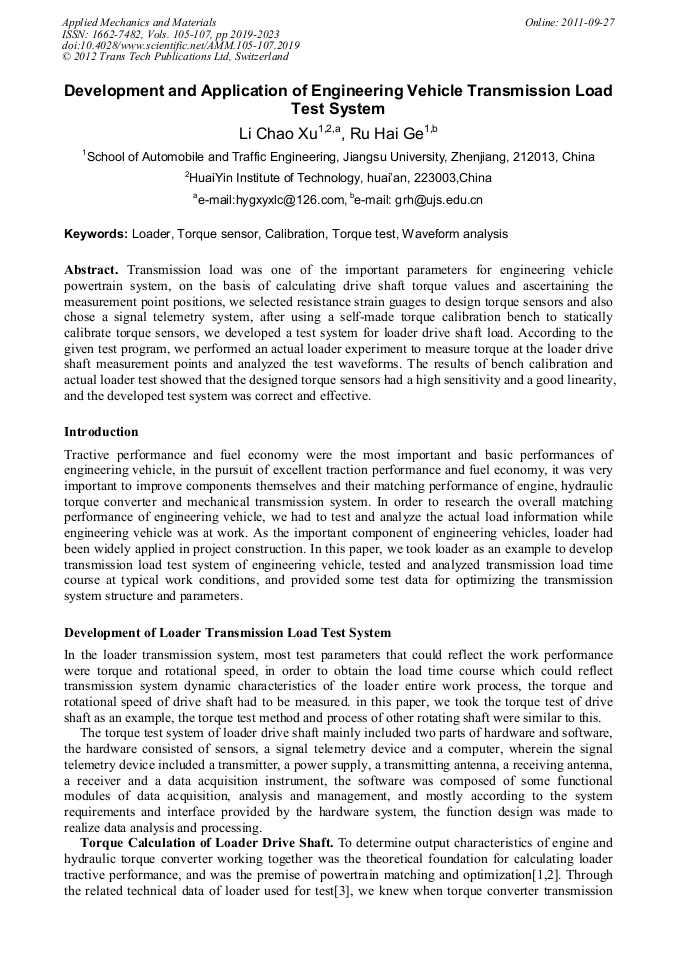

Development and Application of Engineering Vehicle Transmission Load Test System

Abstract:

Transmission load was one of the important parameters for engineering vehicle powertrain system, on the basis of calculating drive shaft torque values and ascertaining the measurement point positions, we selected resistance strain guages to design torque sensors and also chose a signal telemetry system, after using a self-made torque calibration bench to statically calibrate torque sensors, we developed a test system for loader drive shaft load. According to the given test program, we performed an actual loader experiment to measure torque at the loader drive shaft measurement points and analyzed the test waveforms. The results of bench calibration and actual loader test showed that the designed torque sensors had a high sensitivity and a good linearity, and the developed test system was correct and effective.

You might also be interested in these eBooks

Vibration, Structural Engineering and Measurement I

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 105-107)

Pages:

2019-2023

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.105-107.2019

Citation:

Cite this paper

Online since:

September 2011

Authors:

Li Chao Xu, Ru Hai Ge

Keywords:

Calibration, Loader, Torque Sensor, Torque Test, Waveform Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Dakhoul.Y.: Diesel Progress North American Edition, (2004) No. 2, p.42.

Google Scholar

[2] Murin.J.: Mechanism and Machine Theory, (2005) No. 1, p.99.

Google Scholar

[3] L. Chang, L.C. Xu and Y.C. Liu: The Engineering Vehicle Load Spectrum Test Method and Its Application (China University of Mining and Technology press, China 2011), p.34. (In Chinese).

Google Scholar

[4] H.Y. Zhang, G.M. Zhou and H. Chen: Vehicle & Power Technology, (2006) No. 1, p.1. (In Chinese).

Google Scholar

[5] L. Chen: Research on Tractive Performance Matching for Wheel Loader (MS., Jilin University, China 2005), p.43. (In Chinese).

Google Scholar

[6] H.B. Jia: Study on the Test and Generation Methods about Load Spectrum of Wheel Loader Driveline (MS., Jilin University, China 2009), p.21. (In Chinese).

Google Scholar

[7] X.T. Hou: Study on the Load Spectrum Test and Fatigue Life Estimation of Wheel Loader Axle Shaft (MS., Jilin University, China 2009), p.12. (In Chinese).

Google Scholar
