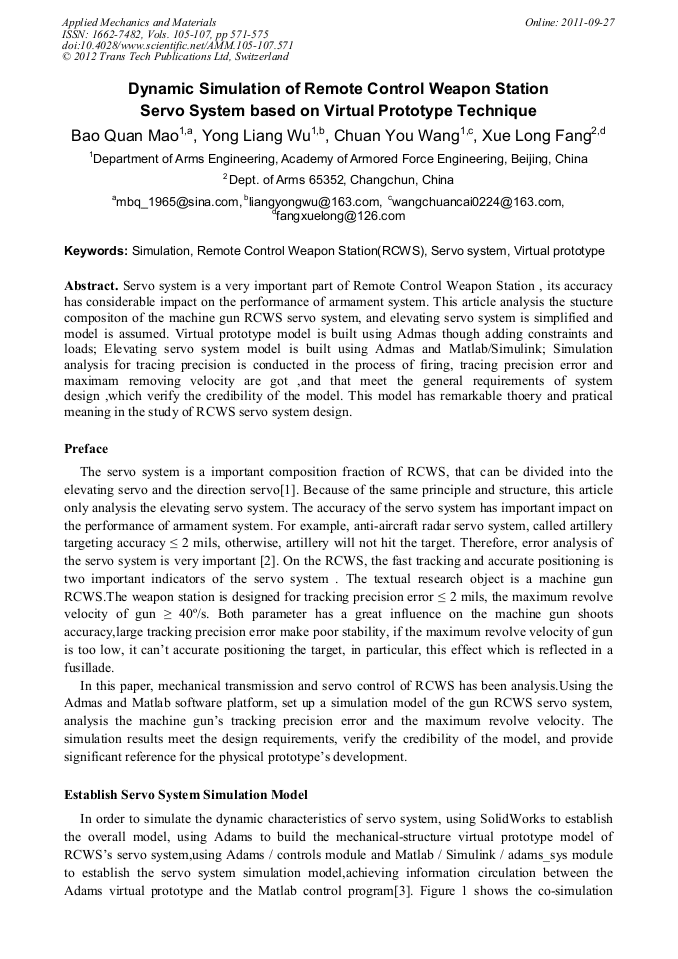

Dynamic Simulation of Remote Control Weapon Station Servo System Based on Virtual Prototype Technique

Abstract:

Servo system is a very important part of Remote Control Weapon Station , its accuracy has considerable impact on the performance of armament system. This article analysis the stucture compositon of the machine gun RCWS servo system, and elevating servo system is simplified and model is assumed. Virtual prototype model is built using Admas though adding constraints and loads; Elevating servo system model is built using Admas and Matlab/Simulink; Simulation analysis for tracing precision is conducted in the process of firing, tracing precision error and maximam removing velocity are got ,and that meet the general requirements of system design ,which verify the credibility of the model. This model has remarkable thoery and pratical meaning in the study of RCWS servo system design.
