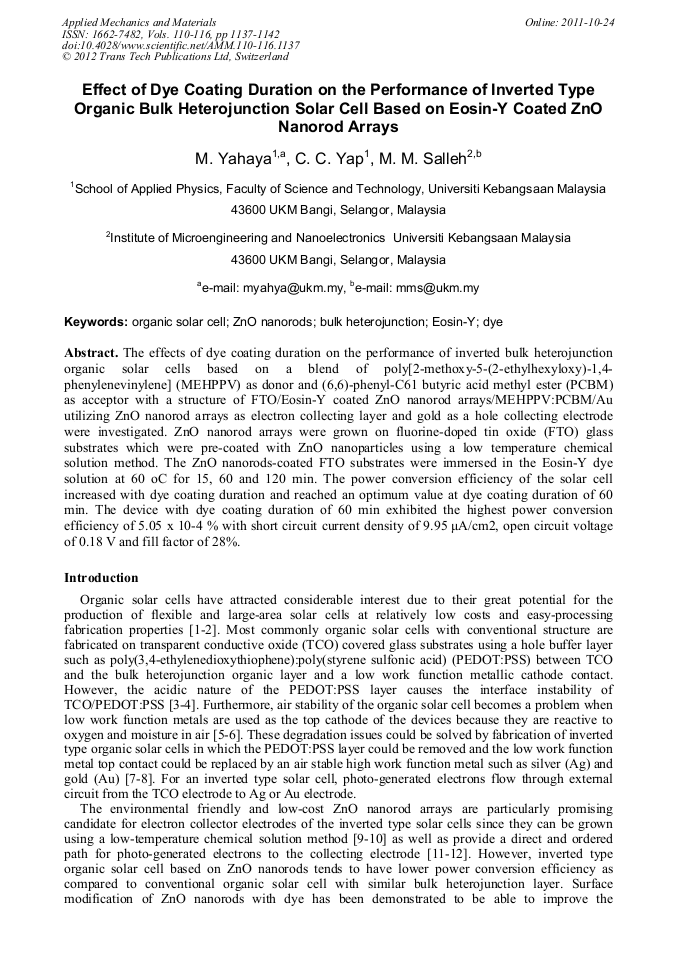

Effect of Dye Coating Duration on the Performance of Inverted Type Organic Bulk Heterojunction Solar Cell Based on Eosin-Y Coated ZnO Nanorod Arrays

Abstract:

The effects of dye coating duration on the performance of inverted bulk heterojunction organic solar cells based on a blend of poly [2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene] (MEHPPV) as donor and (6,6)-phenyl-C61 butyric acid methyl ester (PCBM) as acceptor with a structure of FTO/Eosin-Y coated ZnO nanorod arrays/MEHPPV:PCBM/Au utilizing ZnO nanorod arrays as electron collecting layer and gold as a hole collecting electrode were investigated. ZnO nanorod arrays were grown on fluorine-doped tin oxide (FTO) glass substrates which were pre-coated with ZnO nanoparticles using a low temperature chemical solution method. The ZnO nanorods-coated FTO substrates were immersed in the Eosin-Y dye solution at 60 oC for 15, 60 and 120 min. The power conversion efficiency of the solar cell increased with dye coating duration and reached an optimum value at dye coating duration of 60 min. The device with dye coating duration of 60 min exhibited the highest power conversion efficiency of 5.05 x 10-4 % with short circuit current density of 9.95 μA/cm2, open circuit voltage of 0.18 V and fill factor of 28%.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 1137-1142
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.1137
• Online since: October 2011
• Authors: Muhammad Yahaya, C.C. Yap, Muhamad Mat Salleh
• Keywords: Bulk Heterojunction, Dye, Eosin-Y, Organic Solar Cell (OSC), ZnO Nanorod

References

[1] G. Yu, J. Gao, J. C. Hummelen, F. Wudl, and A. J. Heeger, Polymer Photovoltaic Cells: Enhanced Efficiencies via a Network of Internal Donor-Acceptor Heterojunctions, Science, vol. 270, Dec 1995, pp.1789-1791.

DOI: 10.1126/science.270.5243.1789

[2] C. J. Brabec, N. S. Sariciftci, and J. C. Hummelen, Plastic Solar Cells, Adv. Funct. Mater., vol. 11, Feb 2001, pp.15-26, doi: 10. 1002/1616-3028(200102)11: 1<15: AID-ADFM15>3. 0. CO; 2-A.

DOI: 10.1002/1616-3028(200102)11:1<15::aid-adfm15>3.0.co;2-a

[3] K. Kawanoa, R. Pacios, D. Poplavskyy, J. Nelson, D. D. C. Bradley, and J. R. Durrant, Degradation of Organic Solar Cells due to Air Exposure, Sol. Energy Mater. Sol. Cells, vol. 90, Dec 2006, pp.3520-3530, doi: 10. 1016/j. solmat. 2006. 06. 041.

DOI: 10.1016/j.solmat.2006.06.041

[4] M. Jørgensen, K. Norrman, and F. C. Krebs, Stability/Degradation of Polymer Solar Cells, Sol. Energy Mater. Sol. Cells, vol. 92, July 2008, pp.686-714, doi: 10. 1016/j. solmat. 2008. 01. 005.

DOI: 10.1016/j.solmat.2008.01.005

[5] M.O. Reese, A.J. Morfa, M.S. White, N. Kopidakis, S.E. Shaheen, G. Rumbles and D.S. Ginley, Pathways for the Degradation of Organic Photovoltaic P3HT: PCBM based Devices, Sol. Energy Mater. Sol. Cells, vol. 92, July 2008, pp.746-752.

DOI: 10.1016/j.solmat.2008.01.020

[6] B. Paci, A. Generosi, V. Rossi Albertini, P. Perfetti, R. de Bettignies, and C. Sentein, Time-resolved Morphological Study of Organic Thin Film Solar Cells based on Calcium/aluminium Cathode Material, Chem. Phys. Lett., vol. 461, August 2008, pp.77-81.

DOI: 10.1016/j.cplett.2008.06.070

[7] K. Takanezawa, K. Hirota, Q. S. Wei, K. Tajima, and K. Hashimoto, Efficient Charge Collection with ZnO Nanorod Array in Hybrid Photovoltaic Devices, J. Phys. Chem. C, vol. 111, April 2007, pp.7218-7223, doi: 10. 1021/jp071418n.

DOI: 10.1021/jp071418n

[8] C. Y. Chou, J. S. Huang, C. H. Wu, C. Y. Lee, C. F. Lin, Lengthening the Polymer Solidification Time to Improve the Performance of Polymer/ZnO Nanorod Hybrid Solar Cells, Sol. Energy Mater. Sol. Cells, vol. 93, Sept 2009, pp.1608-1612.

DOI: 10.1016/j.solmat.2009.04.016

[9] L. Vayssieres, Growth of Arrayed Nanorods and Nanowires of ZnO from Aqueous Solutions, Adv. Mater., vol. 15, March 2003, pp.464-466, doi: 10. 1002/adma. 200390108.

DOI: 10.1002/adma.200390108

[10] M. Guo, P. Diao, and S. M. Cai, Hydrothermal Growth of Well-Aligned ZnO Nanorod Arrays: Dependence of Morphology and Alignment Ordering upon Preparing Conditions,   J. Solid State Chem., vol. 178, June 2005, pp.1864-1873.

DOI: 10.1016/j.jssc.2005.03.031

[11] M. Law, L. E. Greene, J. C. Johnson, R. Saykally, and P. Yang, Nanowire Dye-sensitized Solar Cells, Nat. Mater., vol. 4, June 2005, pp.455-459, doi: 10. 1038/nmat1387.

DOI: 10.1038/nmat1387

[12] C. Le´vy-Cle´ment, R. Tena-Zaera, M. A. Ryan, A. Katty, and G. Hodes, CdSe-Sensitized p-CuSCN/Nanowire n-ZnO Heterojunctions, Adv. Mater., vol. 17, Jun 2005, pp.1512-1515, doi: 10. 1002/adma. 200401848.

DOI: 10.1002/adma.200401848

[13] R. Thitima, C. Patcharee, S. Takashi, and Y. Susumu, Efficient Electron Transfers in ZnO Nanorod Arrays with N719 Dye for Hybrid Solar Cells, Solid State Electron., vol. 53, Feb 2009, pp.176-780, doi: 10. 1016/j. sse. 2008. 10. 014.

DOI: 10.1016/j.sse.2008.10.014

[14] Y. Y. Lin, Y. Y. Lee, L. W. Chang, J. J. Wu, and C. W. Chen, The Influence of Interface Modifier on the Performance of Nanostructured ZnO/polymer Hybrid Solar Cells, Appl. Phys. Lett., vol. 94, Feb 2009, p.063308, doi: 10. 1063/1. 3080203.

DOI: 10.1063/1.3080203

[15] W. J. Lee, H. Okada, A. Wakahara, and A. Yoshida, Structural and Photoelectrochemical Characteristics of Nanocrystalline ZnO Electrode with Eosin-Y, Ceram. Int., Vol. 32, 2006, pp.495-498, doi: 10. 1016/j. ceramint. 2005. 03. 030.

DOI: 10.1016/j.ceramint.2005.03.030

[16] S. Choopun, A. Tubtimtae, T. Santhaveesuk, S. Nilphai, E. Wongrat, and N. Hongsith, Zinc Oxide Nanostructures for Applications as Ethanol Sensors and Dye-sensitized Solar Cells, Appl. Surf. Sci., vol. 256, Nov 2009, pp.998-1002.

DOI: 10.1016/j.apsusc.2009.05.139

[17] B. Postels, A. Kasprzak, T. Buergel, A. Bakin, E. Schlenker, H. H. Wehmann, and A. Waag, Dye-Sensitized Solar Cells on the Basis of ZnO Nanorods, J. Korean Phys. Soc., vol. 53, July 2008, pp.115-118, doi: 10. 3938/jkps. 53. 115.

DOI: 10.3938/jkps.53.115

[18] M. Quintana, T. Marinado, K. Nonomura, G. Boschloo, and A. Hagfeldt, Organic Chromophore-sensitized ZnO Solar Cells: Electrolyte-dependent Dye Desorption and Band-edge Shifts, J. Photochem. Photobiol. A: Chem., vol. 202, Feb 2009, pp.159-163.

DOI: 10.1016/j.jphotochem.2008.11.024

[19] A. Ghicov, S. Albu, R. Hahn, D. Kim, T. Stergiopoulos, J. Kunze, C. A. Schiller, P. Falaras, and P. Schmuki, TiO2 Nanotubes in Dye-Sensitized Solar Cells: Critical Factors for the Conversion Efficiency, Chem. Asian J., vol. 4, April 2009, pp.520-525.

DOI: 10.1002/asia.200800441
