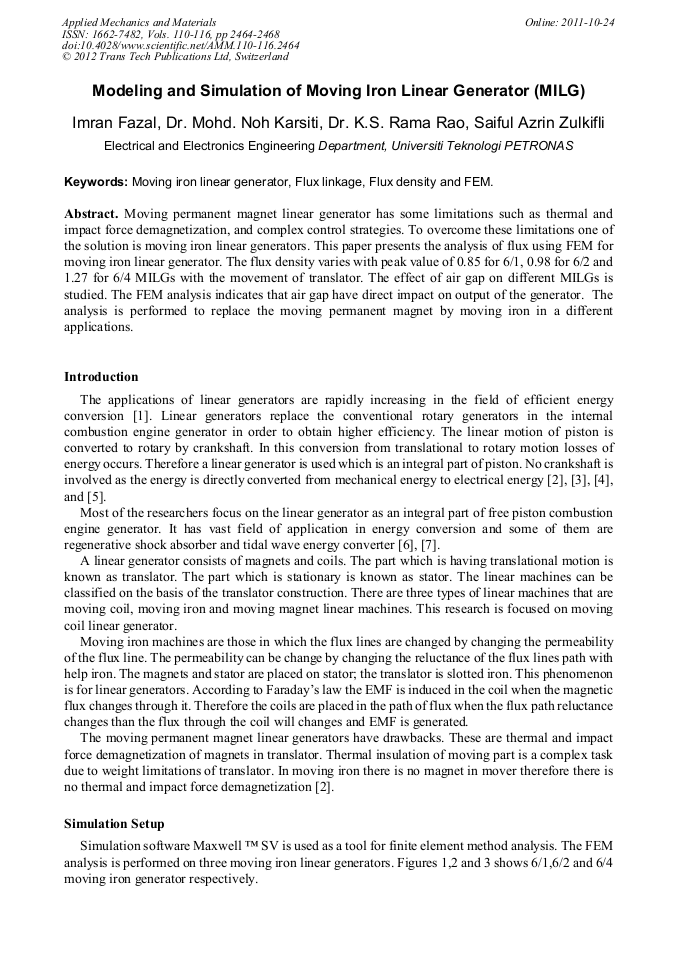

Modeling and Simulation of Moving Iron Linear Generator (MILG)

Abstract:

Moving permanent magnet linear generator has some limitations such as thermal and impact force demagnetization, and complex control strategies. To overcome these limitations one of the solution is moving iron linear generators. This paper presents the analysis of flux using FEM for moving iron linear generator. The flux density varies with peak value of 0.85 for 6/1, 0.98 for 6/2 and 1.27 for 6/4 MILGs with the movement of translator. The effect of air gap on different MILGs is studied. The FEM analysis indicates that air gap have direct impact on output of the generator. The analysis is performed to replace the moving permanent magnet by moving iron in a different applications.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 2464-2468
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.2464
• Online since: October 2011
• Authors: Imran Fazal, Mohd Noh Karsiti, K.S. Rama Rao, Saiful Azrin Zulkifli
• Keywords: Finite Element Method (FEM), Flux Density, Flux Linkage, Moving Iron Linear Generator

References

[1] I. Boldea & S. A. Nasar, Linear electric actuators and generators, Cambridge University press, New York, (1997).

[2] W. M. Arshad, A Low-Leakage Linear Transverse-Flux Machine for a Free-Piston Generator, Ph.D. dissertation, ISBN 91-7283-535-4, Royal Institute of Technology, Stockholm, (2003).

[3] W. M. Arshad, Bäckström T., Thelin P., and Sadarangani C., Integrated free-piston generators: An Overview,. IEEE NORPIE-2, Stockholm (2002).

[4] W.R. Cawthorne, Optimization of a Brushless Permanent Magnet Linear Alternator for Use With a Linear Internal Combustion Engine, PhD dissertation, College of Engineering and Mineral Resources, West Virginia University, West Virginia, (1999).

DOI: 10.33915/etd.3160

[5] V. D. Brink, and Anthonie, Patent No: WO2007/035102 FREE PISTON LINEAR GENERATOR, 29th March (2007).

[6] C. M. Stancil, G. Richardson, and G Gray, Patent number: US2008/0277939,. Linear Generator and System Capture Energy From Irregular Linear Motion,. 26 September (2005).

[7] H. Aaron and V. Meulen, Novel Control of a Permanent Magnet Linear Generator for Ocean Wave Energy Application,. Master thesis, Oregon State University (2007).

[8] I. Boldea, Variable speed generator, CRC Taylor & Francis Group press, New York (2006).

[9] S. Azrin Zulkifili, Modeling Simulation and Implementation of Rectangular Commutation for Starting of Free-Piston Linear Generator, M. Sc. dissertation, Universiti Teknologi Petronas, Malaysia (2007).
