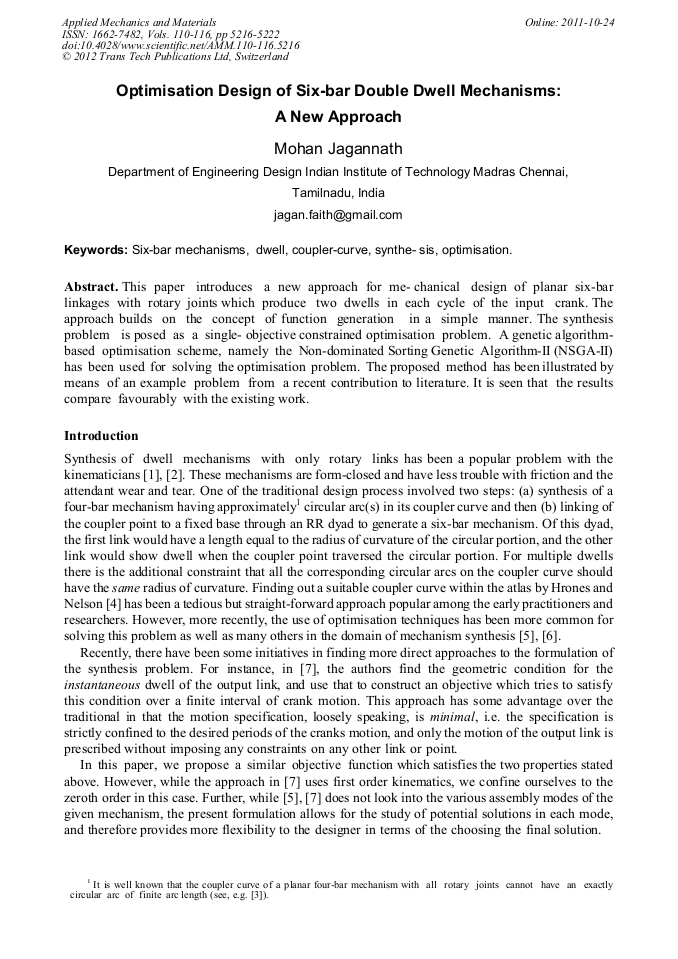

Optimisation Design of Six-Bar Double Dwell Mechanisms: A New Approach

Abstract:

This paper introduces a new approach for me-chanical design of planar six-bar linkages with rotary joints which produce two dwells in each cycle of the input crank. The approach builds on the concept of function generation in a simple manner. The synthesis problem is posed as a single-objective constrained optimisation problem. A genetic algorithm-based optimisation scheme, namely the Non-dominated Sorting Genetic Algorithm-II (NSGA-II) has been used for solving the optimisation problem. The proposed method has been illustrated by means of an example problem from a recent contribution to literature. It is seen that the results compare favourably with the existing work.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 5216-5222
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.5216
• Online since: October 2011
• Authors: Mohan Jagannath
• Keywords: Coupler-Curve, Dwell, Optimization, Six-Bar Mechanisms, Synthesis

References

[1] Sandgren, Design of single- and multiple-dwell six-link mechanisms through design optimization, Mechanism and Machine Theory, vol. 20, no. 6, p.483–490, (1985).

DOI: 10.1016/0094-114x(85)90067-9

[2] W. C. Barris, S. Kota, D. R. Riley, and A. G. Erdman, Mechanism synthesis using the workstation environment, Computer Graphics and Applications, IEEE, vol. 8, no. 2, p.39–50, March (1988).

DOI: 10.1109/38.502

[3] A. K. Mallik, A. Ghosh, and G. Dittrich, Kinematic Analysis and Synthesis of Mechanisms. CRC-Press, (1994).

[4] J. Hrones and G. Nelson, Analysis of the Four Bar Linkage. MIT Press and Wiley, (1951).

[5] Shiakolas, Koladiya, and Kebrle, On the optimum synthesis of six- bar linkages using differential evolution and the geometric centroid of precision positions technique, Mechanism and Machine Theory, vol. 40, p.319–335, September (2005).

DOI: 10.1016/j.mechmachtheory.2004.07.005

[6] N. Nariman-Zadeh, M. Felezi, A. Jamali, and M. Ganji, Pareto optimal synthesis of four-bar mechanisms for path generation, Mechanism and Machine Theory, vol. 44, no. 1, p.180–191, January (2009).

DOI: 10.1016/j.mechmachtheory.2008.02.006

[7] M. Jagannath and S. Bandyopadhyay, A new approach towards the synthesis of six-bar double dwell mechanisms, in Computational Kine- matics. Springer Berlin Heidelberg, October 2009, p.209–216.

DOI: 10.1007/978-3-642-01947-0_26

[8] K. Deb, A. Pratap, S. Agarwal, and T. Meyarivan, A fast and elitist multiobjective genetic algorithm: NSGA-II, IEEE Transactions on Evo- lutionary Computation, vol. 6, no. 2, p.182–197, April (2002).

DOI: 10.1109/4235.996017

[9] M. Jagannath, A New Methodology of Coupler Curve Based Synthesis of Planar Four-bar Mechanisms, August 2010, submitted to ASME Journal of Mechanical Design.

[10] K. Deb, Multi-Objective Optimization using Evolutionary Algorithms. John Wiley and Sons, Ltd., (2002).

[11] E. Rimon and D. E. Koditschek, Exact robot navigation using artificial potential functions, IEEE Transactions on Robotics and Automation, vol. 8, no. 5, p.501–518, (1992).

DOI: 10.1109/70.163777
