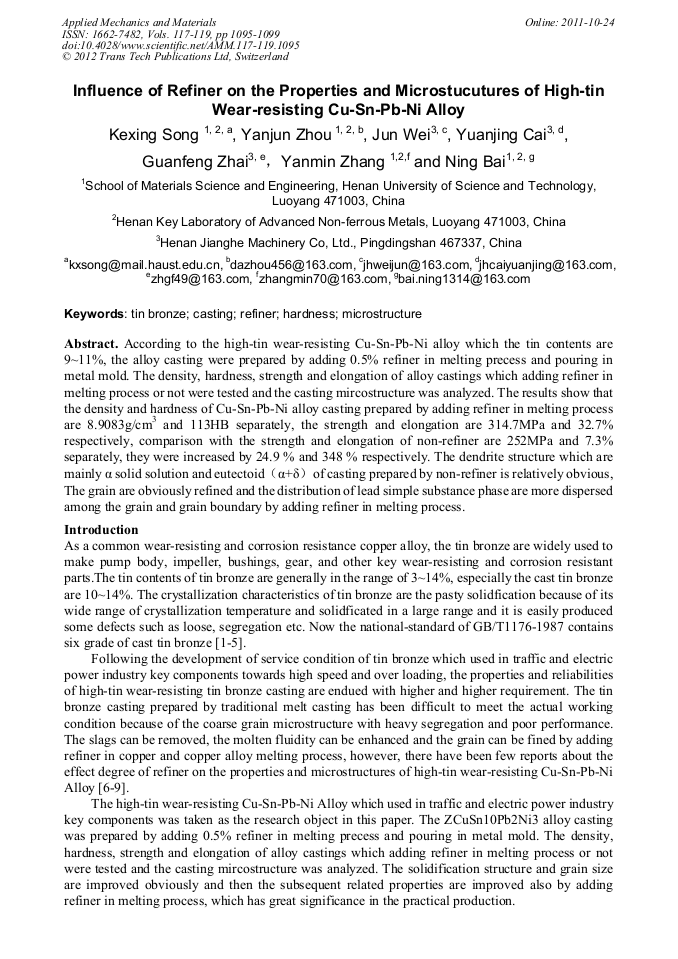

Influence of Refiner on the Properties and Microstucutures of High-Tin Wear-Resisting Cu-Sn-Pb-Ni Alloy

Abstract:

According to the high-tin wear-resisting Cu-Sn-Pb-Ni alloy which the tin contents are 9~11%, the alloy casting were prepared by adding 0.5% refiner in melting precess and pouring in metal mold. The density, hardness, strength and elongation of alloy castings which adding refiner in melting process or not were tested and the casting mircostructure was analyzed. The results show that the density and hardness of Cu-Sn-Pb-Ni alloy casting prepared by adding refiner in melting process are 8.9083g/cm³ and 113HB separately, the strength and elongation are 314.7MPa and 32.7% respectively, comparison with the strength and elongation of non-refiner are 252MPa and 7.3% separately, they were increased by 24.9 % and 348 % respectively. The dendrite structure which are mainly α solid solution and eutectoid（α+δ）of casting prepared by non-refiner is relatively obvious, The grain are obviously refined and the distribution of lead simple substance phase are more dispersed among the grain and grain boundary by adding refiner in melting process.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1095-1099
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1095
• Online since: October 2011
• Authors: Ke Xing Song, Yan Jun Zhou, Jun Wei, Yuan Jing Cai, Guan Feng Zhai, Yan Min Zhang, Ning Bai
• Keywords: Casting, Hardness, Microstructure, Refiner, TiN Bronze

References

[1] G.Z. Duo, M.X: Foundry Vol. 9 (2005), pp.75-76, In Chinese

[2] J.S. Park, C.W. Park, K.J. Lee: Materials Characterization Vol. 60 (2009), pp.1268-1275

[3] Q.S. Wang, Z.D. Wang, M.Fang, etc: Special Casting & Nonferrous Alloys Vol. 29 (2007), pp.1070-1074, In Chinese

[4] Y.X.Su, Z.H. Meng, Z.L. Zhang, etc: Foundry Vol. 52 (2003), pp.1189-1191, In Chinese

[5] H.Liu, G.B. Lin. Z.D. Wang, etc: Hot Working Technology Vol. 21 (2008), pp.37-39, In Chinese

[6] X.W. Nie: Application Technology Vol. 5 (2010), pp.24-25, In Chinese

[7] J.S. Park, D. Voyakin: Journal of Archaeological Science Vol 36 (2009), pp.622-624

[8] X.W. Nie: Foundry Vol. 1 (2006), pp.37-40, In Chinese

[9] H.L. Liu: Metallurgical Collections Vol. 1 (2004), pp.19-20, In Chinese

[10] C. S. Wang, M.Yuan, Y. H. Xiong: China University ScienceTechnology Vol 25 (1995), pp.448-453

[11] M. Aksoy, V. Kuzucu, H.Turhan: Materials Processing Technology, Vol 124 (2002), pp.113-115
