Effect of Underlay Rigidity on Breaking Behavior of Aluminum Sheet during Wedged Shearing Process

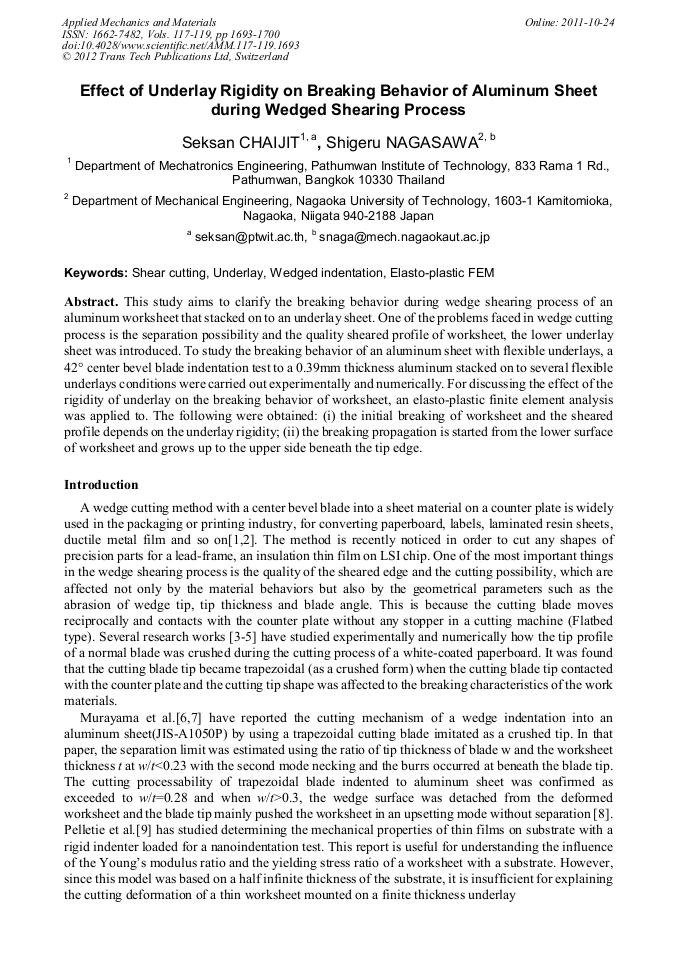

Abstract:

This study aims to clarify the breaking behavior during wedge shearing process of an aluminum worksheet that stacked on to an underlay sheet. One of the problems faced in wedge cutting process is the separation possibility and the quality sheared profile of worksheet, the lower underlay sheet was introduced. To study the breaking behavior of an aluminum sheet with flexible underlays, a 42°center bevel blade indentation test to a 0.39mm thickness aluminum stacked on to several flexible underlays conditions were carried out experimentally and numerically. For discussing the effect of the rigidity of underlay on the breaking behavior of worksheet, an elasto-plastic finite element analysis was applied to. The following were obtained: (i) the initial breaking of worksheet and the sheared profile depends on the underlay rigidity; (ii) the breaking propagation is started from the lower surface of worksheet and grows up to the upper side beneath the tip edge.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1693-1700
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1693
• Online since: October 2011
• Authors: Seksan Chaijit, Shigeru Nagasawa
• Keywords: Elasto-Plastic FEM, Shear Cutting, Underlay, Wedged Indentation

References

[1] Hesse,F. & Tenzer, H.J.: Grundlargen der Papier-verarbeitung, VEB Verlag fur Buch und Bibliotheks-wesen, (1963), pp.58-60, Leipzig.

[2] Inaba, Y.: Flatbed Diecutting and Maintenance of Diecutter (DSJ '98 Seminar text), CARTON BOX, Vol.17, No.200 (1998), pp.17-20.

[3] Nagasawa,S., Sato,H., Yamaguchi, D., Fukuzawa, Y., Katayama, I. & Yoshizawa, A.: Effect of Tip Clearance and Blade Hardness on Cutting Resistance and Tip Shape in Paperboard Die Cutting, J. Japan Soc. Technol. Plast., Vol.42, No.480(2001), pp.38-42.

[4] Nagasawa,S., Sekikawa,H., Murayama,M., Fukuzawa, Y., & Katayama,I.: Effect of Initial Tip Profile on Crushing of Center Beveled Cutter-Numerical analysis of crushing of cutting tip indented on paperboard, J. Japan Soc. Technol. Plast., (in Japanese) Vol.45, No.524(2004), pp.747-751.

[5] Nagasawa,S., Fukuzawa,Y., Yamaguchi,T., Muraya-ma, M., Yamaguchi, D. & Katayama, I.: Effect of Blade Tip Shape on Thread Dross Occurrence in Paperboard Die Cutting, J. Japan Soc. Technol. Plast., (in Japanese) Vol.43, No.498(2002), pp.50-54.

[6] Murayama,M., Nagasawa,S., Fukuzawa,Y. & Katayama, I.: Effect of sheet thickness and friction on load characteristic of crushed center bevel cutter indented to aluminum sheet, Computational Methods in Contact Mechanics VI, WIT Press(2003), pp.115-124. [7] Murayama, M., Nagasawa, S., Fukuzawa, Y. & Katayama, I: Cutting Mechanism and Load Characteristic of Trapezoidal Center Bevel Cutting Indented on Aluminum Sheet, Japan Soc. of Mech. Eng. Int., Vol.47, No.1 (2004), pp.21-28.

DOI: 10.1299/jsmelem.2003.657

[8] Chaijit, S., Nagasawa, S., Fukuzawa, Y. Murayama, M., & Katayama, I.: Effect of Tip Profile on Cutting Processability of Trapezoidal Cutting Blade Indented to Aluminum Sheet, J. Mechanic of Materials and Structures, Vol.1, No.8(2006), pp.1301-1321.

DOI: 10.2140/jomms.2006.1.1301

[9] Pelletier, H., Krier, J., Mille, P.: Characterization of mechanical properties of thin films using nanoindentaion test, Mechanics of Materials., Vol.38, Issue.12 (2006), pp.1182-1198.

DOI: 10.1016/j.mechmat.2006.02.011

[10] M.G. Cockroft, D.J. Latham: Ductility and workability of metals, Journal of Institute of Metals, Vol.96 (1968), pp.33-39.
