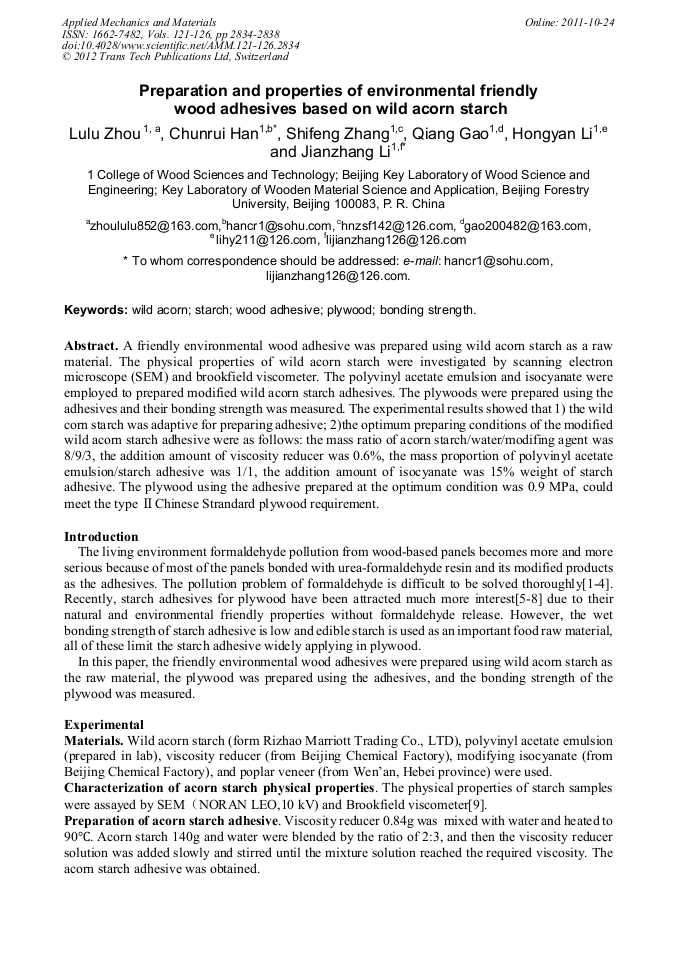

Preparation and Properties of Environmental Friendly Wood Adhesives Based on Wild Acorn Starch

Abstract:

A friendly environmental wood adhesive was prepared using wild acorn starch as a raw material. The physical properties of wild acorn starch were investigated by scanning electron microscope (SEM) and brookfield viscometer. The polyvinyl acetate emulsion and isocyanate were employed to prepared modified wild acorn starch adhesives. The plywoods were prepared using the adhesives and their bonding strength was measured. The experimental results showed that 1) the wild corn starch was adaptive for preparing adhesive; 2)the optimum preparing conditions of the modified wild acorn starch adhesive were as follows: the mass ratio of acorn starch/water/modifing agent was 8/9/3, the addition amount of viscosity reducer was 0.6%, the mass proportion of polyvinyl acetate emulsion/starch adhesive was 1/1, the addition amount of isocyanate was 15% weight of starch adhesive. The plywood using the adhesive prepared at the optimum condition was 0.9 MPa, could meet the type ⅡChinese Strandard plywood requirement.

• Periodical: Applied Mechanics and Materials (Volumes 121-126)
• Pages: 2834-2838
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.121-126.2834
• Online since: October 2011
• Authors: Lu Lu Zhou, Chun Rui Han, Shi Feng Zhang, Qiang Gao, Hong Yan Li, Jian Zhang Li
• Keywords: Bonding Strength, Plywood, Starch, Wild Acorn, Wood Adhesive

References

[1] G. E. Myers: Hydrolytic stability of cured urea-formaldehyde resins. Wood Science. Vol. 2 (1982), pp.127-138.

[2] T. J. Pratt, W. E. Johns, R. M. Rammon and W. L. Plagemann: A novel concept on the structure of cured urea-formaldehyde resin. J Adhesion. Vol. 17(1985), pp.275-295.

DOI: 10.1080/00218468508081165

[3] A. Pizzi, L. Lipshit and J. Valenzuela: Theory and practice of the preparation of low formaldehyde mission UF adhesives. Holzforschung. Vol. 48(1994), pp.254-261.

DOI: 10.1515/hfsg.1994.48.3.254

[4] Changzhen Lin, Jiyou Gu: Studies and applications circumstance about the melamine modified urea-formaldehyde resins. Adhesion in China. Vol. 22(2001), pp.27-32, in Chinese.

[5] S. Imam: A new wood adhesive. Agricultural Research. Vol. 48(2000), pp.234-237.

[6] J. Anic, C. Meyer-wegner: Starch based adhesive. U.S. Patent 5, 352, 284. (1993).

[7] Jinghong Liu, Qiaojia Lin and Guidi Yang: Application of Modified Starch Adhesive in Plywood Industry. Journal of Fujian college of forestry. Vol. 24(2004), pp.144-147, in Chinese.

[8] Yuhuan Liu, Rongsheng Ruan and Dandan Zhen: Research Situation of Starch Based Wood Adhesives. Chemistry and Adhesion. Vol. 27(2005), pp.358-362, in Chinese.

[9] YI Quan, Tianxi Xia and Yunhua Wang: Oxidized Starch Synthesized Using H2O2 as Oxizider in Dry Process and Microwave Catalysis. Journal of Jiangsu Polytechnic University. (2003), pp.12-14, in Chinese.

[10] Zhenggen Zha, Jinghua Wu: The effects on performance of corn starch adhesives degraded by α- enzyme. China adhesives. Vol. 8(1998), pp.26-29, in Chinese.

[11] Wenlin Zhou, Lili Huang: The Research on improving the water and heat resistance of Polyvinyl acetate. Hangzhou chemical industry. (1989), pp.5-7, in Chinese.
