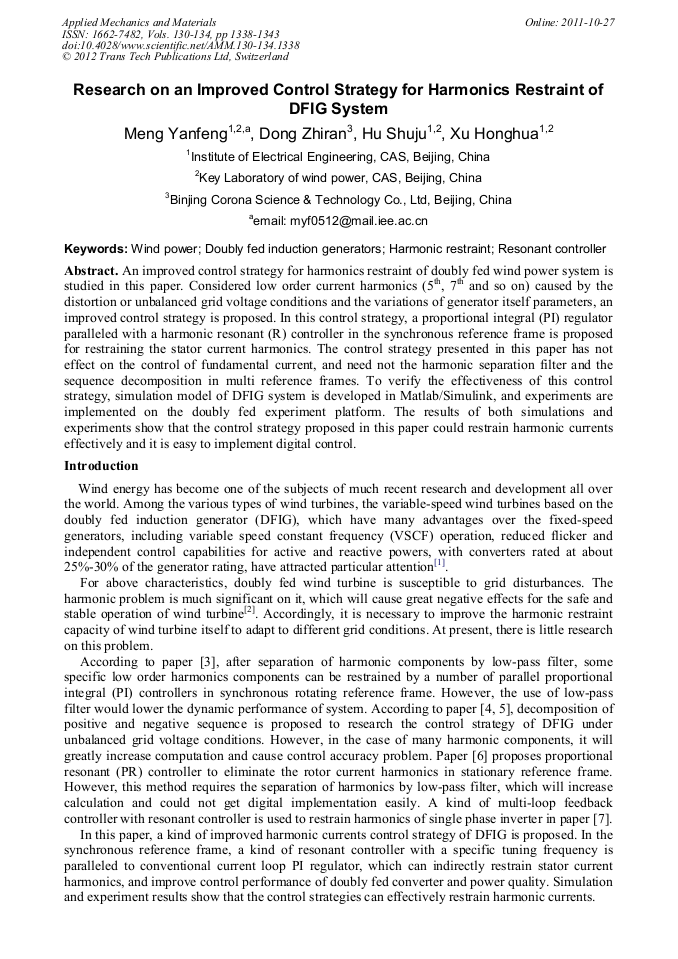

Research on an Improved Control Strategy for Harmonics Restraint of DFIG System

Abstract:

An improved control strategy for harmonics restraint of doubly fed wind power system is studied in this paper. Considered low order current harmonics (5^th, 7^th and so on) caused by the distortion or unbalanced grid voltage conditions and the variations of generator itself parameters, an improved control strategy is proposed. In this control strategy, a proportional integral (PI) regulator paralleled with a harmonic resonant (R) controller in the synchronous reference frame is proposed for restraining the stator current harmonics. The control strategy presented in this paper has not effect on the control of fundamental current, and need not the harmonic separation filter and the sequence decomposition in multi reference frames. To verify the effectiveness of this control strategy, simulation model of DFIG system is developed in Matlab/Simulink, and experiments are implemented on the doubly fed experiment platform. The results of both simulations and experiments show that the control strategy proposed in this paper could restrain harmonic currents effectively and it is easy to implement digital control.

• Periodical: Applied Mechanics and Materials (Volumes 130-134)
• Pages: 1338-1343
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.130-134.1338
• Online since: October 2011
• Authors: Yan Feng Meng, Zhi Ran Dong, Shu Ju Hu, Hong Hua Xu
• Keywords: Double Fed Induction Generation (DFIG), Harmonic Restraint, Resonant Controller, Wind Power

References

[1] Vladislav Akhmatov, Induction Generators for Wind Power [M], Multi Science Publishing Co Ltd, (2007).

[2] Zhaoan Wang, Jun Yang, Jinjun Liu, Harmonic Suppression and Reactive Power Compensation[M], Beijing, China Machine Press, (1998).

[3] C.J. Ramos, A.P. Martins, A.S. Carvalho, Rotor Current Controller with Voltage Harmonics Compensation for a DFIG Operating under Unbalanced and Distorted Stator Voltage, Industrial Electronics Society, 33rd Annual Conference of the IEEE , pp.1287-1292, 5-8 Nov. (2007).

DOI: 10.1109/iecon.2007.4459938

[4] Lie Xu, Yi Wang, Dynamic Modeling and Control of DFIG-Based Wind Turbines Under Unbalanced Network Conditions, Power Systems, IEEE Transactions on, vol. 22, pp.314-323, Feb. (2007).

DOI: 10.1109/tpwrs.2006.889113

[5] Y. Wang, L. Xu, B.W. Williams, Compensation of network voltage unbalance using doubly fed induction generator-based wind farms, Renewable Power Generation, IET , vol. 3, no. 1, pp.12-22, March (2009).

DOI: 10.1049/iet-rpg:20080007

[6] Lingling Fan, R. Kavasseri, Haiping Yin, Chanxia Zhu, Control of DFIG for Rotor Current Harmonics Elimination, " Power & Energy Society General Meeting, PES , 09. vol. 10, no. 2, pp.1-7, Dec. (2009).

DOI: 10.1109/pes.2009.5275382

[7] Qin Huang, Yaohua Li, A novel multi2loop control method with resonant controller for CVCF inverter, Advanced Technology of Electrical Engineering and Energy, vol. 24, no. 2, pp.37-40, Dec. (2005).

[8] Zixin Li, Ping Wang, Yaohua Li, Haibin Zhu, 400 Hz High-power Voltage-source Inverter With Digital Control, Proceedings of the CSEE, Vol. 29, No. 6, pp.36-42, Feb, (2009).

DOI: 10.1109/epepemc.2008.4635318
