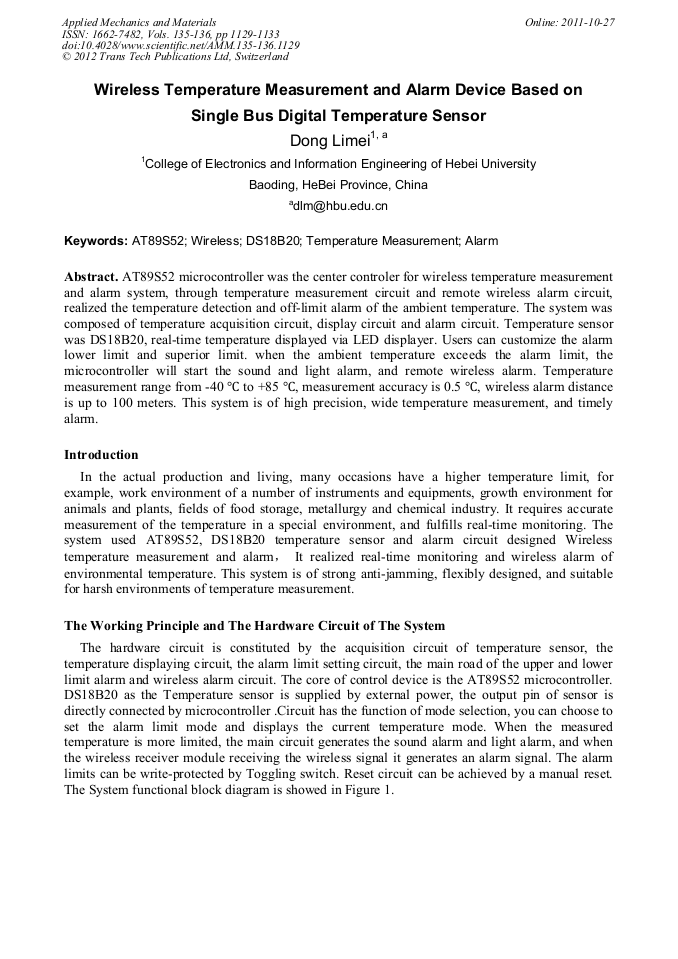

Wireless Temperature Measurement and Alarm Device Based on Single Bus Digital Temperature Sensor

Abstract:

AT89S52 microcontroller was the center controler for wireless temperature measurement and alarm system, through temperature measurement circuit and remote wireless alarm circuit, realized the temperature detection and off-limit alarm of the ambient temperature. The system was composed of temperature acquisition circuit, display circuit and alarm circuit. Temperature sensor was DS18B20, real-time temperature displayed via LED displayer. Users can customize the alarm lower limit and superior limit. when the ambient temperature exceeds the alarm limit, the microcontroller will start the sound and light alarm, and remote wireless alarm. Temperature measurement range from -40 °C to +85 °C, measurement accuracy is 0.5 °C, wireless alarm distance is up to 100 meters. This system is of high precision, wide temperature measurement, and timely alarm.

• Periodical: Applied Mechanics and Materials (Volumes 135-136)
• Pages: 1129-1133
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.135-136.1129
• Online since: October 2011
• Authors: Li Mei Dong
• Keywords: Alarm, AT89S52, DS18B20, Temperature Measurement, Wireless

References

[1] LiuLvshan, LiuJianqun, and LiShiyong, Temperature Control System Based On AT89S52 Single Chip Microcomputer, Microcomputer Information, vol. 23, no. 6-2, pp.98-100, May (2007).

[2] LouLanmiao, LiGuangfei, The 51 series Microcontroller Design Examples, CA: BeiHang University Press, (2003).

[3] DS18B20 Programmable Resolution 1-Wire Digital Thermometer, http: /www. maxim-ic. com, (2008).

[4] DALLAS, DS18B20 Data Manual, (2007).

[5] ZhangYingchun, MaoXindong, Research & Design of Multi-channel Circulating Temperature Detecting System by DS18B20 Networking Based on GSM Module, Electrical Automation, vol. 31, no. 1, pp.60-61, Jan. (2007).

[6] ZhangXin, HuangQiu, and TangBin, Development of an IntelligentTemperature Alarm System, Techniques of Automation and Applications, vol. 28, no. 7, pp.103-105, April (2007).

[7] MaZhongmei, The SCM C Language Program Design, CA: BeiHang University Press, (2007).

[8] SunShuxia, HeJianjun, and XiaoYangchun, C/C + + Programming Tutorial, CA: Publishing House of Electronics Industry, (2005).

[9] PanGuofeng, HePing, TianFeng, Distributed Temperature Measuring and Alarming System Based on CAN Bus,. Journal of Hebei University of Technology, Vol. 33, No. 2, pp.55-56, Jan. (2010).

[10] LiHailing, WangHangyu, Design of digital thermometer based on AT89C51 & DS18B20,. International Electronic Elements, No. 11, pp.82-84, April. (2008).
