Dynamic Modeling and Dynamic Characteristic Analysis of a New Concept Stratospheric V-Shaped Airship

Abstract:

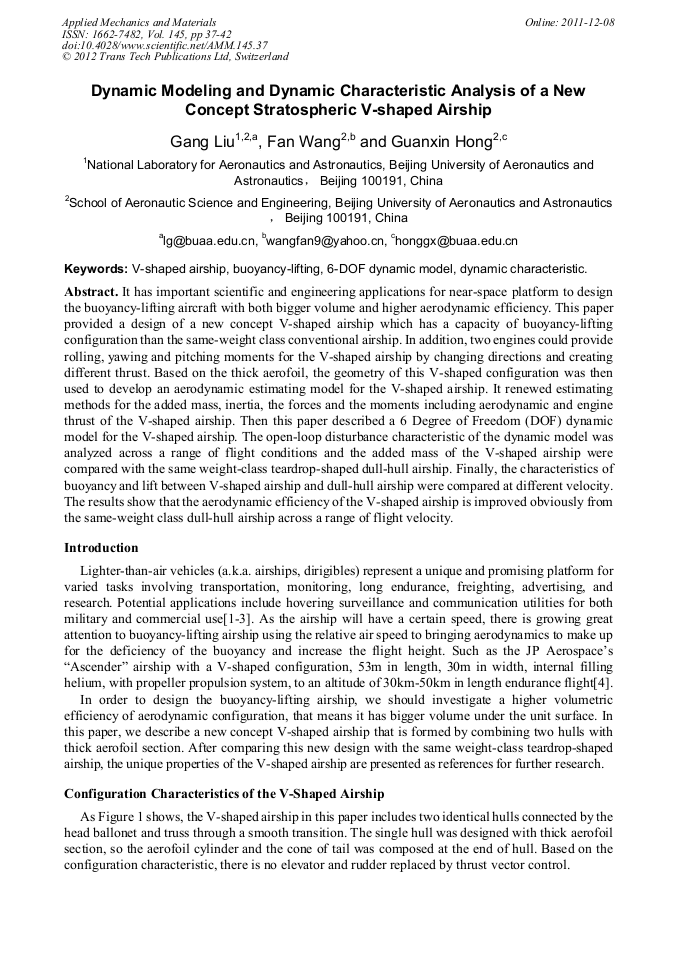

It has important scientific and engineering applications for near-space platform to design the buoyancy-lifting aircraft with both bigger volume and higher aerodynamic efficiency. This paper provided a design of a new concept V-shaped airship which has a capacity of buoyancy-lifting configuration than the same-weight class conventional airship. In addition, two engines could provide rolling, yawing and pitching moments for the V-shaped airship by changing directions and creating different thrust. Based on the thick aerofoil, the geometry of this V-shaped configuration was then used to develop an aerodynamic estimating model for the V-shaped airship. It renewed estimating methods for the added mass, inertia, the forces and the moments including aerodynamic and engine thrust of the V-shaped airship. Then this paper described a 6 Degree of Freedom (DOF) dynamic model for the V-shaped airship. The open-loop disturbance characteristic of the dynamic model was analyzed across a range of flight conditions and the added mass of the V-shaped airship were compared with the same weight-class teardrop-shaped dull-hull airship. Finally, the characteristics of buoyancy and lift between V-shaped airship and dull-hull airship were compared at different velocity. The results show that the aerodynamic efficiency of the V-shaped airship is improved obviously from the same-weight class dull-hull airship across a range of flight velocity.

• Periodical: Applied Mechanics and Materials (Volume 145)
• Pages: 37-42
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.145.37
• Online since: December 2011
• Authors: Gang Liu, Fan Wang, Guan Xin Hong
• Keywords: 6-DOF Dynamic Model, Buoyancy-Lifting, Dynamic Characteristic, V-Shaped Airship

References

[1] David K. Schmidt: Journal of Guidance, Control, and Dynamics. Vol. 30 (2007), p.540.

[2] Joseph B Mueller, Michael A. Paluszek and Yiyuan Zhao: Development of an Aerodynamic Model and Control Law Design for a High Altitude Airship. AIAA 3rd Unmanned Unlimited, Technical Conference, Chicago, USA (2004).

DOI: 10.2514/6.2004-6479

[3] David K. Schmidt, James Stevens and Jason Roney: Journal of Aircraft. Vol. 44 (2007), p.611.

[4] John Marchel Powell, U.S. Patent 7, 614, 586 B2. (2009).

[5] Yuwen Li and Meyer Nahon: Journal of Guidance, Control, and Dynamics. Vol. 30 (2007), p.1691.

[6] Editorial office of manual of aerodynamics: Manual of aerodynamics: part 2 (National Defence Industrial Press, Beijing, China 1982).

[7] George R. Doyle Jr. and Jerome J. Vorachek: Investigation of Stability Characteristics of Tethered Balloon Systems, Goodyear Aerospace Corporation, AFCRL-71-0406, Akron (1971).

[8] Li Zhuang and Zeng Hengfa: Computational Methods Study on Added Mass of Stratospheric Platform Airship. Proceedings of 2007 China Lighter-Than-Air Vehicles Conference, Beijing, China(2007).

[9] Li Hang, Liu Gang and Hong Guanxin: Dynamic Modeling and Longitudinal Stability Analysis of a Stratospheric Dual-Hull Airship. 11th AIAA Aviation Technology, Integration, and Operations (ATIO) Conference, Virginia, USA(2011).

DOI: 10.2514/6.2011-6995
