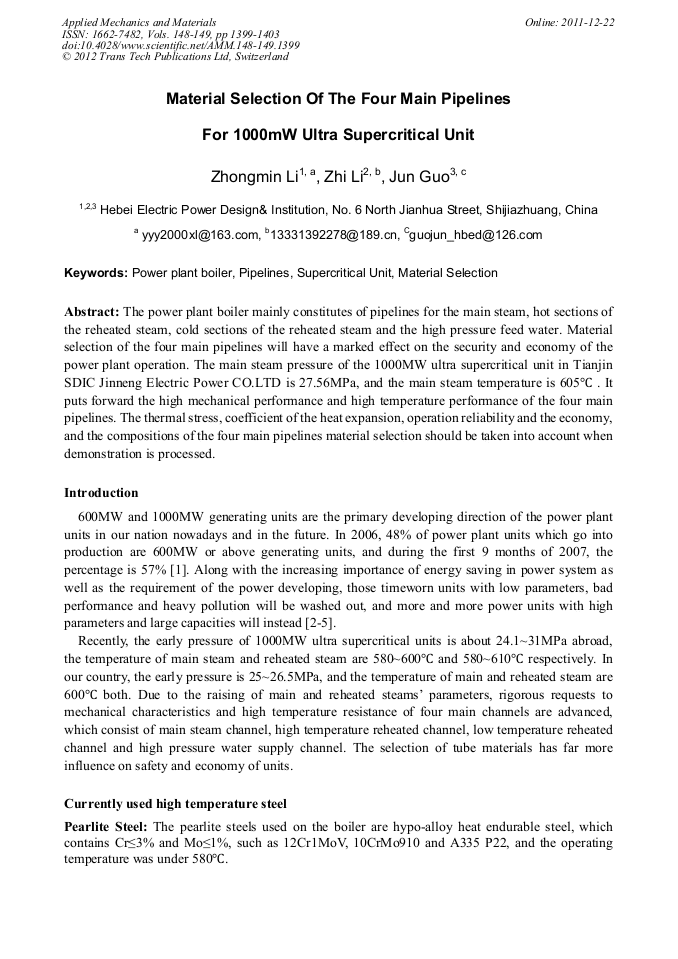

Material Selection of the Four Main Pipelines for 1000mW Ultra Supercritical Unit

Abstract:

The power plant boiler mainly constitutes of pipelines for the main steam, hot sections of the reheated steam, cold sections of the reheated steam and the high pressure feed water. Material selection of the four main pipelines will have a marked effect on the security and economy of the power plant operation. The main steam pressure of the 1000MW ultra supercritical unit in Tianjin SDIC Jinneng Electric Power CO.LTD is 27.56MPa, and the main steam temperature is 605°C. It puts forward the high mechanical performance and high temperature performance of the four main pipelines. The thermal stress, coefficient of the heat expansion, operation reliability and the economy, and the compositions of the four main pipelines material selection should be taken into account when demonstration is processed.

You might also be interested in these eBooks

Mechanical Engineering, Materials and Energy

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 148-149)

Pages:

1399-1403

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.148-149.1399

Citation:

Cite this paper

Online since:

December 2011

Authors:

Zhong Min Li, Zhi Li, Jun Guo

Keywords:

Material Selection, Pipeline, Power Plant Boiler, Supercritical Unit

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] XU Hai-yan. Oriental 1000MW characteristics of ultra-supercritical boiler technology: Dongfang Boiler. (2) (2007), pp.1-9.

Google Scholar

[2] Li Hu. 1000MW Ultra-supercritical units advanced design and analysis of economic operation: Electrical equipment. (2007), 8(12) pp.16-19.

Google Scholar

[3] Wu Chun-lin. Domestic 1000MW-class ultra-supercritical unit temperature steam pipe material selection recommendations: Power Equipment. 19(2) (2005), pp.104-107.

Google Scholar

[4] Chung Lee Act, Han Kegang. Huaneng Yuhuan Power Plant 4 × 1000MW Ultra-supercritical boiler steel unit: Thermal power generation. 35(12) (2006), pp.78-79.

Google Scholar

[5] Hua Hongyuan, et al. 1000MW Ultra-supercritical boiler design to explore: Dongfang Electric comment. 19(2) (2005), pp.59-62.

Google Scholar

[6] Hu, Zhang Feng. 1000MW Ultra-supercritical unit 2953t / h boiler design characteristics and production practice: Electrical equipment. 8(5) (2007), pp.6-10.

Google Scholar

[7] Yang Jinfa, Huang S. Zouxian Power Plant 1000MW Ultra-supercritical boiler system design and structural characteristics: Boiler Manufacturing. (3) (2007), pp.9-13.

Google Scholar
