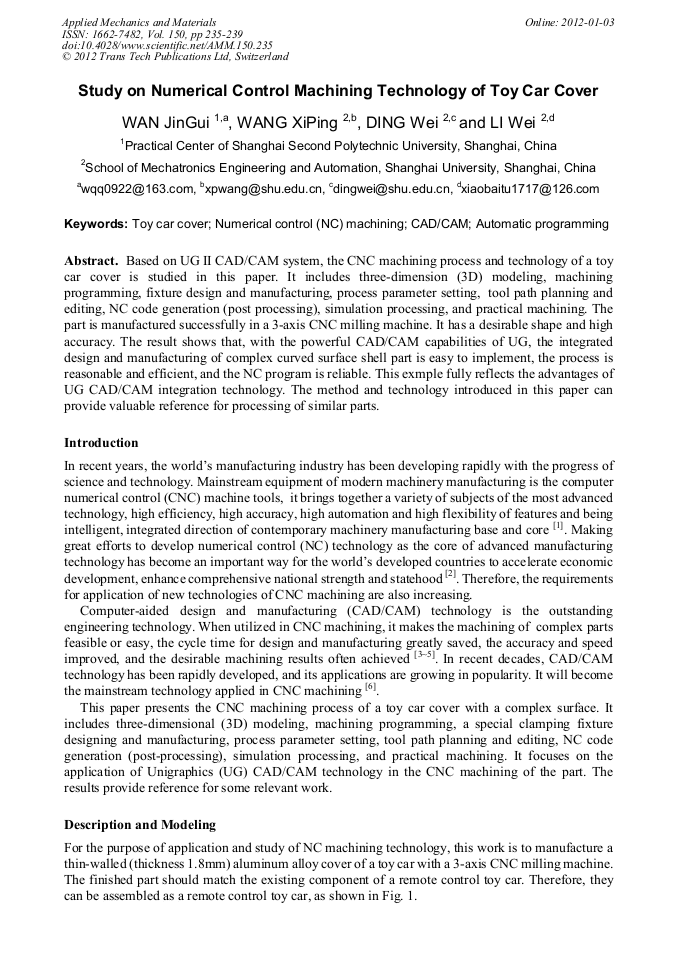

Study on Numerical Control Machining Technology of Toy Car Cover

Abstract:

Based on UG II CAD/CAM system, the CNC machining process and technology of a toy car cover is studied in this paper. It includes three-dimension (3D) modeling, machining programming, fixture design and manufacturing, process parameter setting, tool path planning and editing, NC code generation (post processing), simulation processing, and practical machining. The part is manufactured successfully in a 3-axis CNC milling machine. It has a desirable shape and high accuracy. The result shows that, with the powerful CAD/CAM capabilities of UG, the integrated design and manufacturing of complex curved surface shell part is easy to implement, the process is reasonable and efficient, and the NC program is reliable. This exmple fully reflects the advantages of UG CAD/CAM integration technology. The method and technology introduced in this paper can provide valuable reference for processing of similar parts.

• Periodical: Applied Mechanics and Materials (Volume 150)
• Pages: 235-239
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.150.235
• Online since: January 2012
• Authors: Jin Gui Wan, Xi Ping Wang, Wei Ding, Wei Li
• Keywords: Automatic Programming, CAD/CAM, Numerical Control (NC) Machining, Toy Car Cover
