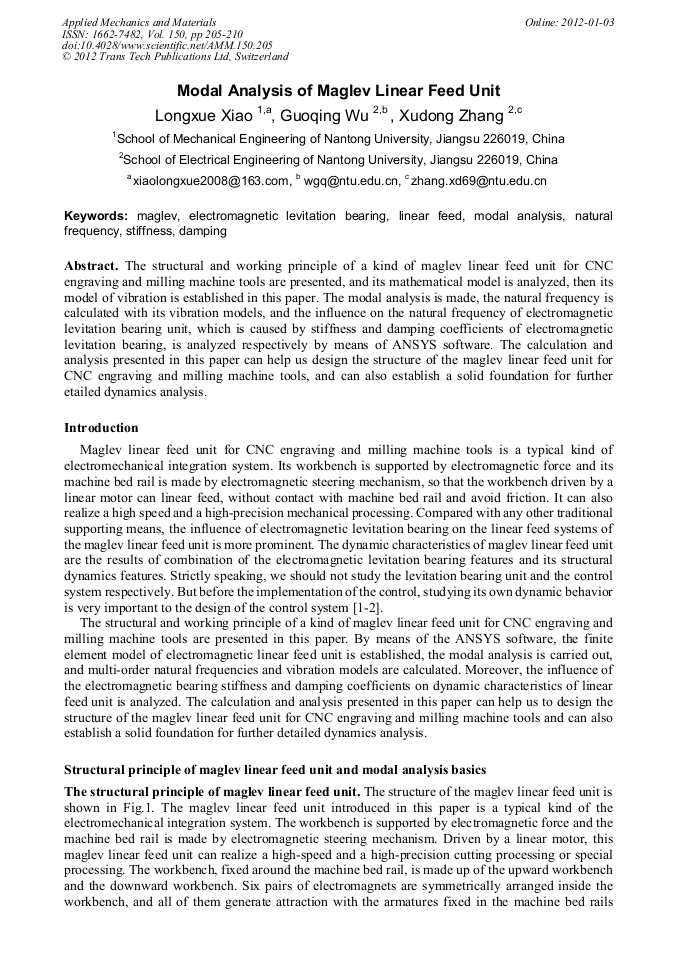

Modal Analysis of Maglev Linear Feed Unit

Abstract:

The structural and working principle of a kind of maglev linear feed unit for CNC engraving and milling machine tools are presented, and its mathematical model is analyzed, then its model of vibration is established in this paper. The modal analysis is made, the natural frequency is calculated with its vibration models, and the influence on the natural frequency of electromagnetic levitation bearing unit, which is caused by stiffness and damping coefficients of electromagnetic levitation bearing, is analyzed respectively by means of ANSYS software. The calculation and analysis presented in this paper can help us design the structure of the maglev linear feed unit for CNC engraving and milling machine tools, and can also establish a solid foundation for further etailed dynamics analysis.

• Periodical: Applied Mechanics and Materials (Volume 150)
• Pages: 205-210
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.150.205
• Online since: January 2012
• Authors: Long Xue Xiao, Guo Qing Wu, Xu Dong Zhang
• Keywords: Damping, Electromagnetic Levitation Bearing, Linear Feed, MagLev, Modal Analysis, Natural Frequency, Stiffness

References

[1] Y.F. Hu, Z.D. Zhou and Z.F. Jiang: Basic theory and application of magnetic bearings(China Machine Press, China 2006).

[2] X.B. Li: Rotor Dynamics Analysis of grinder Spindle system Supported with AMB(Ph. M., Hefei University of Technology, China 2009), pp.7-11.

[3] X.P. Wang, L.J. Zhu: Chinese Journal of Mechanical Engineering, 37(2001) 7-12. (In Chinese).

[4] X.P. Wang: Chinese Journal of Applied Mechanical, 14(1997) 95-100 . (In Chinese).

[5] G.Q. Wu, J.L. Zhou and X. D Zhang, et al: Key Engineering Materials, 392-394(2009)761-766.

[6] G.Q. Wu: Magnetic Suspension Supporting System and Its Control Technology Used for Numerical Control Machine(Ph.D., Shanghai University, China 2006), pp.10-14.
