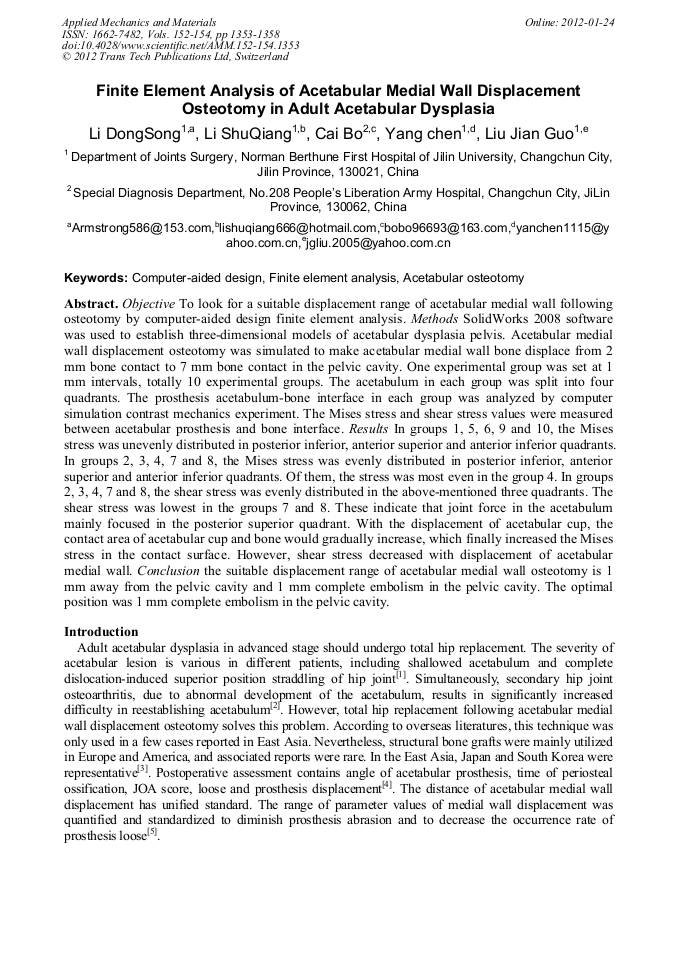

Finite Element Analysis of Acetabular Medial Wall Displacement Osteotomy in Adult Acetabular Dysplasia

Dong Song Li; Shu Qiang Li; Bo Cai; Chen Yang; Jian Guo Liu

doi:10.4028/www.scientific.net/AMM.152-154.1353

Paper Titles

Study on Adaptive Control of Restrained Cantilever Pipe Conveying Fluid
p.1325

The Research to Hydrocyclone Desander of Sand Removing Based on Crude Oil
p.1336

Mode Analysis on the Car Body of Special Gondola Car for Coal
p.1342

Computer-Aided Design and Simulated-Mechanical Study of Individualized Femoral Prosthesis
p.1347

Finite Element Analysis of Acetabular Medial Wall Displacement Osteotomy in Adult Acetabular Dysplasia
p.1353

Study on Integration Architecture of Product Design and Manufacturing Based on Knowledge Engineering
p.1359

Research on Feature Edge Detection Method of Large-Size Components Based on Machine Vision
p.1367

Development and Application of a New Type Rock Drill with Hydraulic Rotary Cutting and Pneumatic Impacting
p.1373

The Propulsion Mechanism with Logarithmic Spiral Profile Shaft Connection
p.1377

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 152-154Finite Element Analysis of Acetabular Medial Wall...

Finite Element Analysis of Acetabular Medial Wall Displacement Osteotomy in Adult Acetabular Dysplasia

Abstract:

Objective To look for a suitable displacement range of acetabular medial wall following osteotomy by computer-aided design finite element analysis. Methods SolidWorks 2008 software was used to establish three-dimensional models of acetabular dysplasia pelvis. Acetabular medial wall displacement osteotomy was simulated to make acetabular medial wall bone displace from 2 mm bone contact to 7 mm bone contact in the pelvic cavity. One experimental group was set at 1 mm intervals, totally 10 experimental groups. The acetabulum in each group was split into four quadrants. The prosthesis acetabulum-bone interface in each group was analyzed by computer simulation contrast mechanics experiment. The Mises stress and shear stress values were measured between acetabular prosthesis and bone interface. Results In groups 1, 5, 6, 9 and 10, the Mises stress was unevenly distributed in posterior inferior, anterior superior and anterior inferior quadrants. In groups 2, 3, 4, 7 and 8, the Mises stress was evenly distributed in posterior inferior, anterior superior and anterior inferior quadrants. Of them, the stress was most even in the group 4. In groups 2, 3, 4, 7 and 8, the shear stress was evenly distributed in the above-mentioned three quadrants. The shear stress was lowest in the groups 7 and 8. These indicate that joint force in the acetabulum mainly focused in the posterior superior quadrant. With the displacement of acetabular cup, the contact area of acetabular cup and bone would gradually increase, which finally increased the Mises stress in the contact surface. However, shear stress decreased with displacement of acetabular medial wall. Conclusion the suitable displacement range of acetabular medial wall osteotomy is 1 mm away from the pelvic cavity and 1 mm complete embolism in the pelvic cavity. The optimal position was 1 mm complete embolism in the pelvic cavity.
