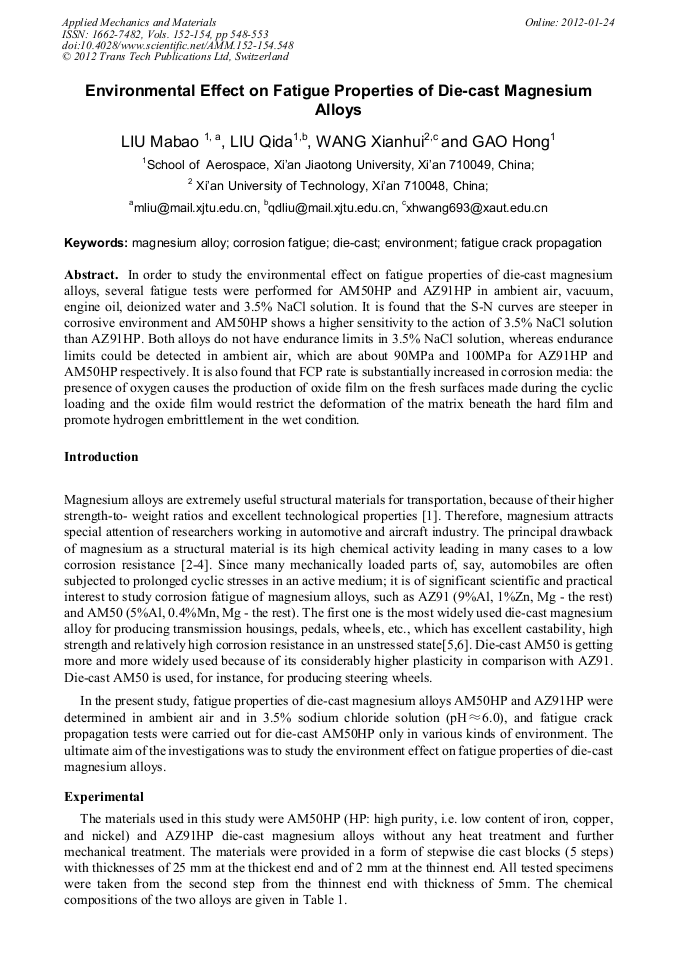

Environmental Effect on Fatigue Properties of Die-Cast Magnesium Alloys

Abstract:

In order to study the environmental effect on fatigue properties of die-cast magnesium alloys, several fatigue tests were performed for AM50HP and AZ91HP in ambient air, vacuum, engine oil, deionized water and 3.5% NaCl solution. It is found that the S-N curves are steeper in corrosive environment and AM50HP shows a higher sensitivity to the action of 3.5% NaCl solution than AZ91HP. Both alloys do not have endurance limits in 3.5% NaCl solution, whereas endurance limits could be detected in ambient air, which are about 90MPa and 100MPa for AZ91HP and AM50HP respectively. It is also found that FCP rate is substantially increased in corrosion media: the presence of oxygen causes the production of oxide film on the fresh surfaces made during the cyclic loading and the oxide film would restrict the deformation of the matrix beneath the hard film and promote hydrogen embrittlement in the wet condition.

• Periodical: Applied Mechanics and Materials (Volumes 152-154)
• Pages: 548-553
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.152-154.548
• Online since: January 2012
• Authors: Ma Bao Liu, Qi Da Liu, Xian Hui Wang, Hong Gao
• Keywords: Corrosion Fatigue, Die Cast, Environment, Fatigue Crack Propagation, Magnesium Alloy

References

[1] W.E. Smith, Structure and Properties of Engineering Alloys. McGraw-Hill, New York, 1993, pp.537-619.

[2] U.C. Nwaogu, C. Blawert, N. Scharnagl, W. Dietzel, K.U. Kainer, Effects of organic acid pickling on the corrosion resistance of magnesium alloy AZ31 sheet, Corros. Sci. 52 (2010) 2143-2154.

DOI: 10.1016/j.corsci.2010.03.002

[3] B.L. Mordike, T. Ebert, Magnesium: Properties and Applications Potential, Mater. Sci. Eng. A 302 (2001) 37-45.

[4] M.B. Liu, J. Lei, Y.X. Gao, Corrosion Fatigue of Die-cast Magnesium Alloys, J. Aeronaut. Mater. 27 (2007) 76-80.

[5] A. Eliezer, M. Gutmane, E. Abramov, Y.A. Unigovski, Corrosion fatigue of die-cast and extruded magnesium alloys, J. Light Met. 2 (2001) 179-186.

DOI: 10.1016/s1471-5317(01)00011-6

[6] E.M. Gutman, A. Eliezer, Y. Unigovski, E. Abramov, Mechanoelectrochemical behavior and creep corrosion of magnesium alloys, Mat. Sci. Eng. A 302 (2001) 63-67.

DOI: 10.1016/s0921-5093(00)01355-1

[7] R.I. Stephens, C.D. Schrader, B. Leasek, Corrosion Fatigue of AZ91E-T6 Cast Magnesium Alloy in a 3.5 Percent NacL Aqueous Environment, J. Eng. Mat. and Technol. 117 (1995) 293-298.

DOI: 10.1115/1.2804542

[8] M.F. Horstemeyer, N. Yang, K. Gall, High cycle fatgiue of a die cast AZ91E-T4 magnesium alloy, Acta Mater. 52 (2004) 1327-1336.

DOI: 10.1016/j.actamat.2003.11.018

[9] J. KOPP, Ph.D Thesis, University of Erlangen-Nûrnberg (1996).

[10] G.E. Dieter, Mechanical Metallurgy, SI Metric Edition, McGraw-Hill, London, 1988.

[11] S.D. Henry, G.M. Davidson, S.R. Lampman, F. Reidenbach, R.L. Boring, W.W. Scott, Fatigue Data Book: Light Structural Alloys, Materials Park, OH: ASM International (1995)126-129.

[12] H. Mayer, M. Papakyriscou, B. Zettl, S.E. Stanzl-Tschegg, Influence of porosity on the fatigue limit of die cast magnesium and aluminium alloys, Int. J. Fatigue 25 (2003) 245-256.

DOI: 10.1016/s0142-1123(02)00054-3

[13] Z.B. Sajuri, Y. Miyashita, Y. Mutoh, High cycle fatigue mechanisms in a cast AM60B magnesium alloy, J. Jpn. Inst. Light Metal 52 (2002) 161-166.

[14] H. Mayer, H. Lipowsky, M. Papakyriacou, R. Rösch, A. Stich, S. Stanzl-Tschegg, Application of ultrasound for fatigue testing of lightweight alloys, Fatigue Fract. Engng. Mater. Struct. 22 (1999) 591-599.

DOI: 10.1046/j.1460-2695.1999.00205.x

[15] N.M. Grinberg, Fatigue of magnesium alloy MA12-T6, Int. J. Fatigue 4 (1982) 83-95.

[16] J.L. Tzou, S. Suresh, R.O. Ritchie, Fatigue crack propagation in oil environments—Part I, Acta Metall. 33 (1985)105-116.

DOI: 10.1016/0001-6160(85)90224-x
