Experimental Investigation of Mechanical Characteristics of Parallel Polygonal Line Groove Multilayer Winding Drum

Abstract:

The characteristics and mechanism of parallel polygonal line groove multilayer winding drum were investigated by an experimental approach. Strain-electricity method was used to test the stress of the cylinder body and the end plates of the drum. Experimental results show that the distribution of the axial bending stress on cylinder body is symmetric in the radial symmetry section. The largest axial bending stress appears in the symmetry plane; however the minimum stress is in the sections close to the end plates on both sides. The axial bending stress of the cylinder body is found to grow with the number of layers wrapped around the drum increasing, while the increment of the stress decreases. When the layer number of the wire rope increases from 4 to 5, the increment of the stress is less than 3 [MPa].

You might also be interested in these eBooks

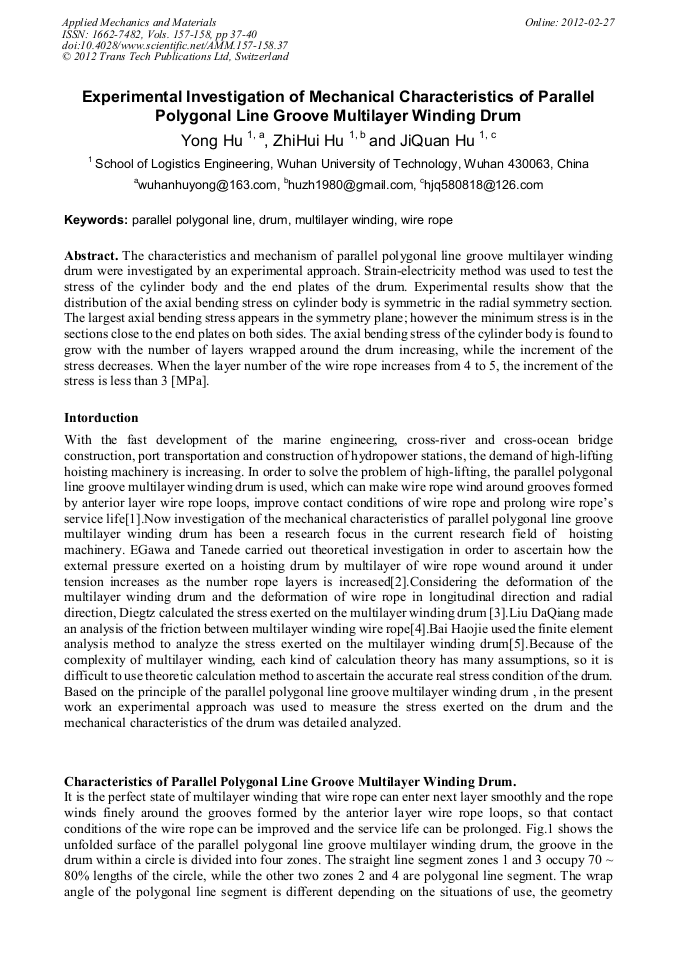

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 157-158)

Pages:

37-40

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.157-158.37

Citation:

Cite this paper

Online since:

February 2012

Authors:

Yong Hu, Zhi Hui Hu, Ji Quan Hu

Keywords:

Drum, Multi-Layer Winding, Parallel Polygonal Line, Wire Rope

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Yan Liangguo , Liu Xiaoxing. Analysis and Study of Wire rope Reel of Crane [J]. Machinery, 31（2004）47-48.

Google Scholar

[2] TadaShi Taneda. and Motoharu Egawa External Pressure Produced by Multi-layers of Rope Wound about a Hoisting Drum [J]. The Japan Society of Mechanical Engineers, 1（1958）133-138.

DOI: 10.1299/jsme1958.1.133

Google Scholar

[3] Diegtz P., Translator Shen JingBao. Determination of Dimension and Calculation of Bearing Capacity of Signal Layer and Multilayer Winding Drum [J]. Technology of Oversea Hoisting and Conveying Machinery, 5（1981）21-25.

Google Scholar

[4] Liu DaQiang, Xu HongZe, Guo YongXing. Analysis of Friction between Multilayer Winding Wire Rope [J]. Hoisting and Conveying Machinery, 4（2003）23-24.

Google Scholar

[5] Bai HaoJie,Tang DaFang,Dong ChengLing,Jiang LiZhang. Finite Element Analysis of Drum of Mine Winch [J]. Mining Machinery,39 (2011) 59-62.

Google Scholar
