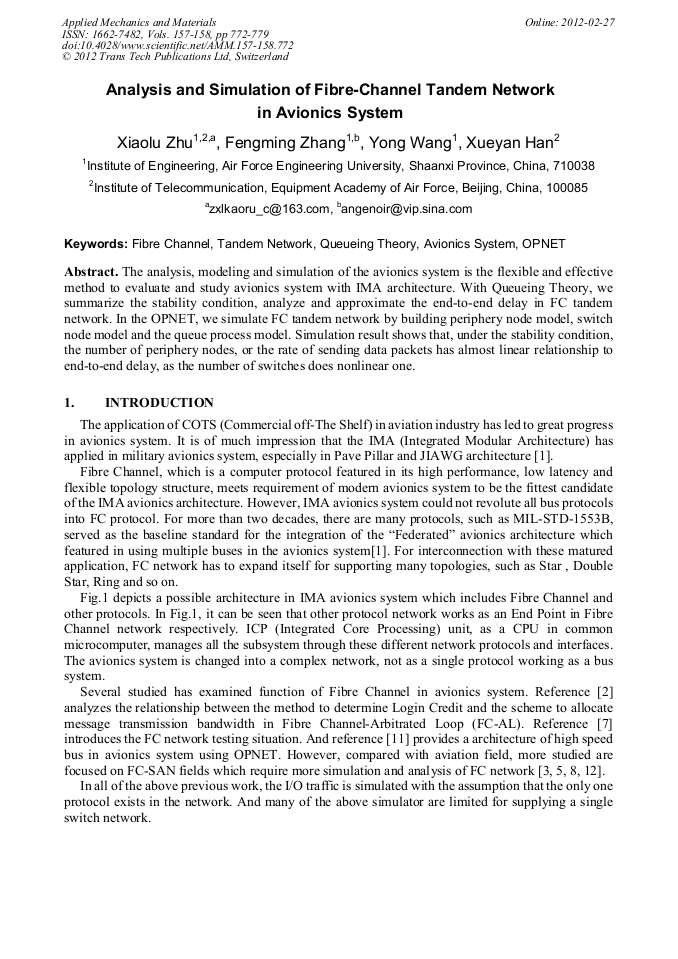

Analysis and Simulation of Fibre-Channel Tandem Network in Avionics System

Abstract:

The analysis, modeling and simulation of the avionics system is the flexible and effective method to evaluate and study avionics system with IMA architecture. With Queueing Theory, we summarize the stability condition, analyze and approximate the end-to-end delay in FC tandem network. In the OPNET, we simulate FC tandem network by building periphery node model, switch node model and the queue process model. Simulation result shows that, under the stability condition, the number of periphery nodes, or the rate of sending data packets has almost linear relationship to end-to-end delay, as the number of switches does nonlinear one.

• Periodical: Applied Mechanics and Materials (Volumes 157-158)
• Pages: 772-779
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.157-158.772
• Online since: February 2012
• Authors: Xiao Lu Zhu, Feng Ming Zhang, Yong Wang, Xue Yan Han
• Keywords: Avionics System, Fibre Channel, OPNET, Queueing Theory, Tandem Network

References

[1] Ian Moir, Allan Seabridge, Military Avionics Systems. John Wiley & Sons Ltd. (2006).

[2] Lin Qiang, Xiong Huagang, Zhang Qishan Credit determination for flow control in FC-AL, IEEE Trans (2004).

DOI: 10.1109/dasc.2004.1390798

[3] Joshua Staley, Suresh Muknahallipatna, Howard Johnson. Fibre Channel based Storage Area Network Modeling using OPNET for Large Fabric Simulations: Preliminary Work. 32nd IEEE Conference on Local Computer Networks, pp.234-236 (2006).

DOI: 10.1109/lcn.2007.51

[4] Wemke van der Weij, Queueing Networks with Shared Resources . (2009).

[5] Chao-Yang Wang, Feng Zhou, Yao-Long Zhu, Chong Tow Chong, Bo Hou, and Wei-Ya Xi, Simulation and Analysis of FC Network, Proceedings of the 28th Annual IEEE International Conference on Local Computer Networks (LCN'03) IEEE, (2003).

DOI: 10.1109/lcn.2003.1243142

[6] Izhak Rbin, Jing Ling, Delay Analysis of All-Optical Packet Switching Ring and Bus communications Networks, (2000).

DOI: 10.1109/glocom.2001.965847

[7] Gary Warden, Bi H Fleissner, Fibre Channel Testing For Avionic Applications. IEEE AUTOTESTCON, pp.583-589, (2004).

DOI: 10.1109/autest.2004.1436958

[8] David H.C. Du, Tai-Sheng Chang, Jenwei Hsieh, Sangyup Shim, Yuewei Wang, Two Emerging Serial Storage Interfaces for Supporting Digital Libraries: Serial Storage Architecture (SSA) and Fiber Channel- Arbitrated Loop (FC-AL), Multimedia Tools and Applications, (2000).

DOI: 10.1007/0-306-47020-9_5

[9] Lenard Kleinrock, Queueing Systems. John Wiley & Sons Inc., (1975).

[10] Fibre Channel - Physical and Signaling Interface Amendment 2 (FC-PH), May 24, (1999).

[11] Haowei Bai, Allalaghatta Pavan, Brian Van Voorst, Design of a Next Generation High-Speed Data Bus, 1st Space Exploration Conference: Continuing the Voyage of Discovery, Orlando, Florida, AIAA 2005-2638, (2005).

DOI: 10.2514/6.2005-2638

[12] Timothy J. Brothers, Suresh Muknahallipatna, Jerry C. Hamann , Fibre Channel Switch Modeling at Fibre Channel-2 Level for Large Fabric Storage Area Network Simulations using OMNeT++: Preliminary Results, 32nd IEEE Conference on Local Computer Networks , pp.191-199, (2003).

DOI: 10.1109/lcn.2007.50

[13] Larry L. Peterson & Bruce S. Davie, Computer Networks: A Systems Approach, Elsevier Science (USA), (2003).
