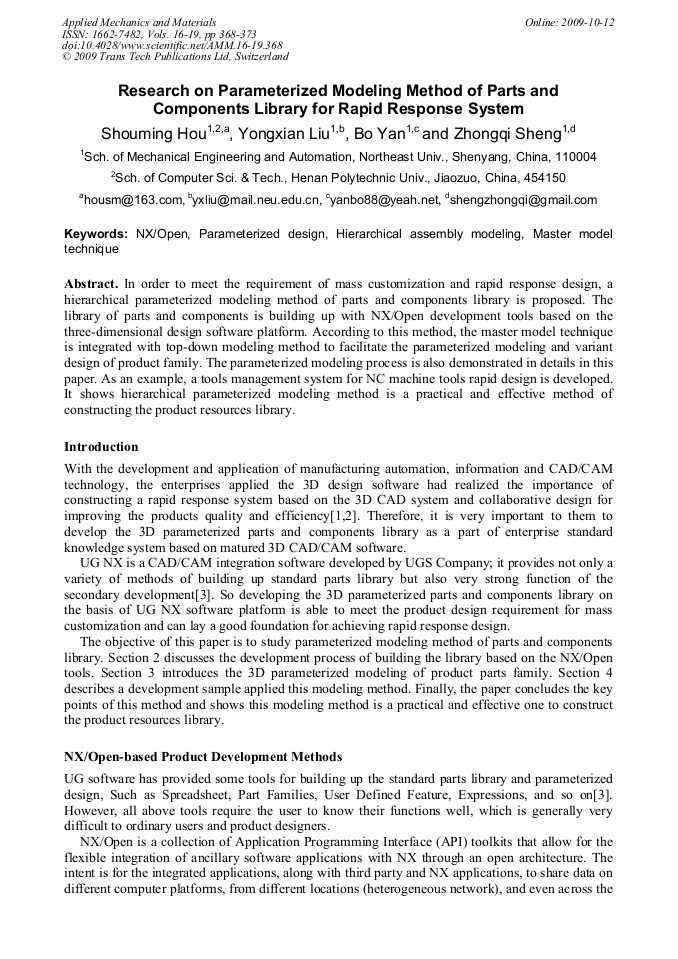

Research on Parameterized Modeling Method of Parts and Components Library for Rapid Response System

Abstract:

In order to meet the requirement of mass customization and rapid response design, a hierarchical parameterized modeling method of parts and components library is proposed. The library of parts and components is building up with NX/Open development tools based on the three-dimensional design software platform. According to this method, the master model technique is integrated with top-down modeling method to facilitate the parameterized modeling and variant design of product family. The parameterized modeling process is also demonstrated in details in this paper. As an example, a tools management system for NC machine tools rapid design is developed. It shows hierarchical parameterized modeling method is a practical and effective method of constructing the product resources library.

You might also be interested in these eBooks

e-Engineering & Digital Enterprise Technology VII

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 16-19)

Pages:

368-373

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.16-19.368

Citation:

Cite this paper

Online since:

October 2009

Authors:

Shou Ming Hou, Yong Xian Liu, Bo Yan, Zhong Qi Sheng

Keywords:

Hierarchical Assembly Modeling, Master Model Technique, NX/Open, Parameterized Design
