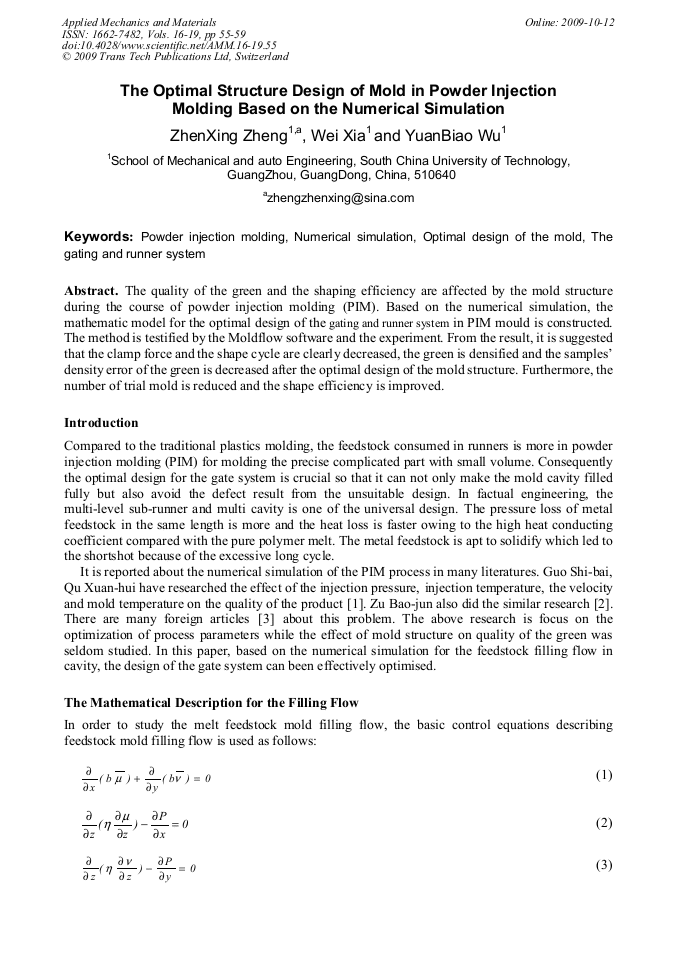

The Optimal Structure Design of Mold in Powder Injection Molding Based on the Numerical Simulation

Abstract:

The quality of the green and the shaping efficiency are affected by the mold structure during the course of powder injection molding (PIM). Based on the numerical simulation, the mathematic model for the optimal design of the gating and runner system in PIM mould is constructed. The method is testified by the Moldflow software and the experiment. From the result, it is suggested that the clamp force and the shape cycle are clearly decreased, the green is densified and the samples’ density error of the green is decreased after the optimal design of the mold structure. Furthermore, the number of trial mold is reduced and the shape efficiency is improved.

• Periodical: Applied Mechanics and Materials (Volumes 16-19)
• Pages: 55-59
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.16-19.55
• Online since: October 2009
• Authors: Zhen Xing Zheng, Wei Xia, Yuan Biao Wu
• Keywords: Gating System, Numerical Simulation, Optimal Design of the Mold, Powder Injection Molding (PIM), Runner System

References

[1] S.B. Guo, X.H. Qu, B.H. Duan, X.B. He and M.L. Qin: Journal of Materials Engineering (in Chinese). Vol. 31 (2004), pp.32-36.

[2] B.J. Zhu: Powder Injection Molding of Tungsten Cemented Carbide (Ph.D., Central South university, China, 2002), pp.28-35.

[3] C.A. Hieber and S.F. Shen: Journal of Non-Newton Fluid Mech, Vol. 41 (1980) No. 7, pp.1-32.

[4] Sh. Ch. Yu: The Technology of Optimal Design for the Rubber and Plastic Mold (The Publication of the Chemical Industry, China, 1997), pp.52-65.

[5] Pye RGW: Injection Mould Design (John Wily & Sons Inc, New York, 1989), pp.69-79. Fig. 4 the comparison of the predicted pressure profile and the tested profile.
