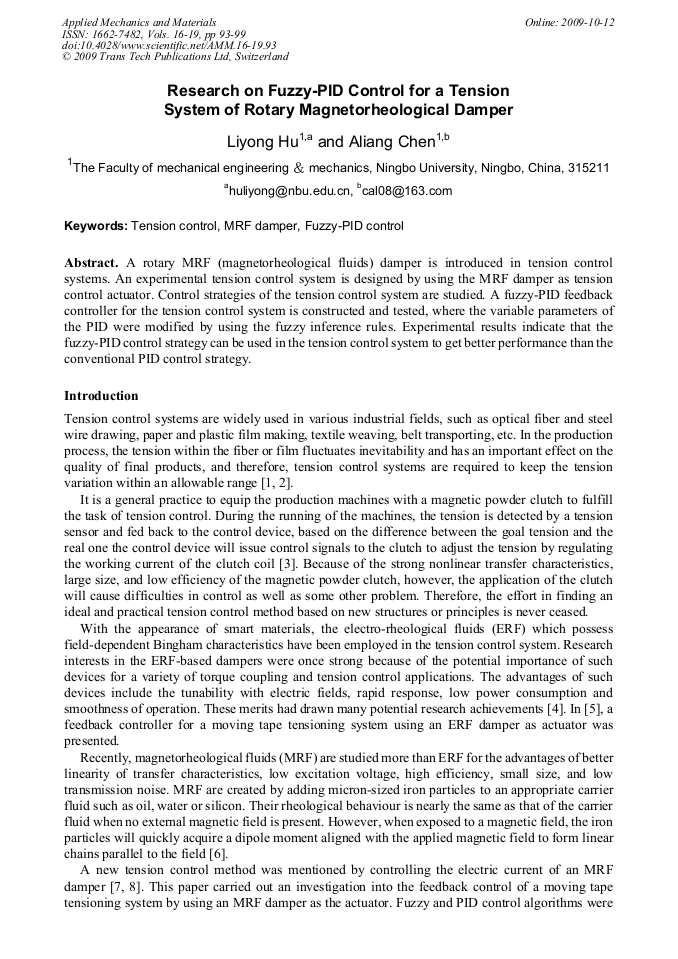

Research on Fuzzy-PID Control for a Tension System of Rotary Magnetorheological Damper

Abstract:

A rotary MRF (magnetorheological fluids) damper is introduced in tension control systems. An experimental tension control system is designed by using the MRF damper as tension control actuator. Control strategies of the tension control system are studied. A fuzzy-PID feedback controller for the tension control system is constructed and tested, where the variable parameters of the PID were modified by using the fuzzy inference rules. Experimental results indicate that the fuzzy-PID control strategy can be used in the tension control system to get better performance than the conventional PID control strategy.

• Periodical: Applied Mechanics and Materials (Volumes 16-19)
• Pages: 93-99
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.16-19.93
• Online since: October 2009
• Authors: Li Yong Hu, A Liang Chen
• Keywords: Fuzzy PID-Control, MRF Damper, Tension Control

References

[1] L.P. Zhao and D.B. Gao: Study on a Typical Tension Control System, Mechanism & Electron (2006) No. 11, pp.5-7. (In Chinese).

[2] C.X. Wang and et al.: Chinese Journal of Scientific Instrument, Vol. 21 (2000) No. 4, pp.407-409. (In Chinese).

[3] M.T. Huang: Xi'an University of Science & Technology Journal, Vol. 19 (1999) No. 2, pp.173-175, (In Chinese).

[4] J.E. Stangroom: Proc. of the 2nd International Conference on ER Fluids (Raleigh, NC 1990). pp.419-425.

[5] S. B. Choi, C.C. Cheong and G.W. Kim: Feedback Control of Tension in a Moving Tape Using an ER Brake Actuator, Mechatronics, Vol. 7 (1997) No. 1, pp.53-66.

DOI: 10.1016/s0957-4158(96)00035-9

[6] W.H. Li and et al.: Materials Science and Engineering, A333 (2002), pp.368-376. 0 200 400 600 800 1000 Fig. 7 Tension output based on Fuzzy-PID and conventional PID congtrol.

[7] Z.B. Chen and et al: Journal of Harbin Institute of Technology, Vol. 39 (2007) No. 11, pp.1732-1736.

[8] L.Y. Hu, D. Zheng and et al.: Proceedings of the 5th China-Japan Conference on Mechatronics (Atsugi, Japan, August 23-25, 2008), Vol. 1, pp.191-193.

[9] H.Q. Su and D. Zheng: Design and FEM Analysis of MRF Based Rotary Damper, Journal of Ningbo University (NSEE), Vol. 20 (2008) No. 4, pp.547-551. (In Chinese).

[10] Y.H. Chen, C.T. Wang and et al.: Application of Fuzzy-intelligent Control on Winding System, Machinery Design & Manufacture, (2006) No. 7, pp.146-148.

[11] W.H. Li, H. Du and N.Q. Guo: Materials Science and Engineering A, Vol. 371 (2004) pp.9-15.

[12] Y.H. Chen and et al: Machinery Design & Manufacture, (2006) No. 7, pp.146-148.
