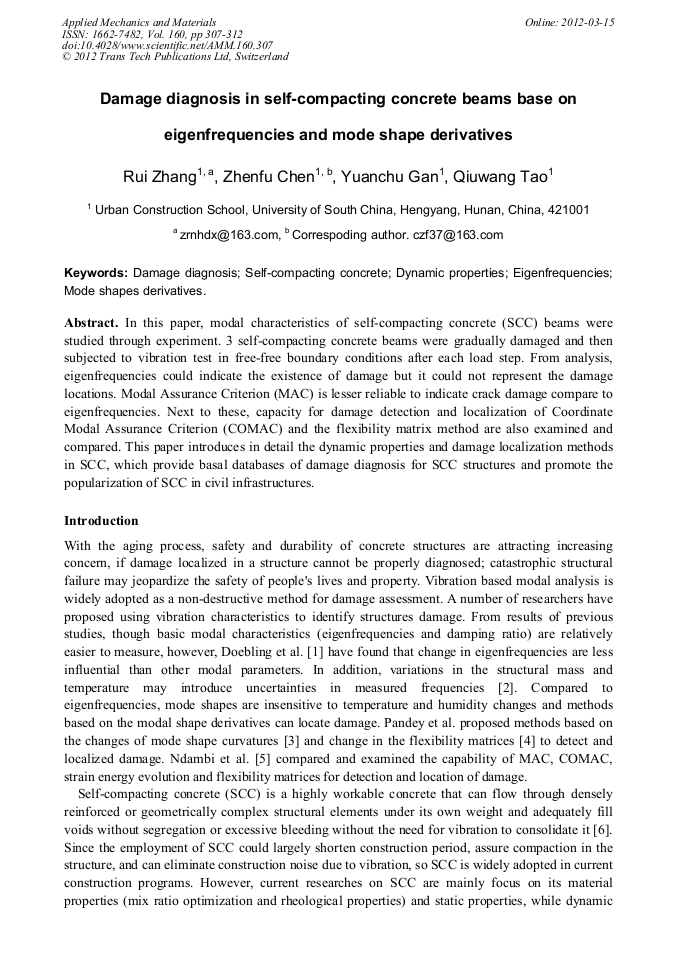

Damage Diagnosis in Self-Compacting Concrete Beams Base on Eigenfrequencies and Mode Shape Derivatives

Abstract:

In this paper, modal characteristics of self-compacting concrete (SCC) beams were studied through experiment. 3 self-compacting concrete beams were gradually damaged and then subjected to vibration test in free-free boundary conditions after each load step. From analysis, eigenfrequencies could indicate the existence of damage but it could not represent the damage locations. Modal Assurance Criterion (MAC) is lesser reliable to indicate crack damage compare to eigenfrequencies. Next to these, capacity for damage detection and localization of Coordinate Modal Assurance Criterion (COMAC) and the flexibility matrix method are also examined and compared. This paper introduces in detail the dynamic properties and damage localization methods in SCC, which provide basal databases of damage diagnosis for SCC structures and promote the popularization of SCC in civil infrastructures.

• Periodical: Applied Mechanics and Materials (Volume 160)
• Pages: 307-312
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.160.307
• Online since: March 2012
• Authors: Rui Zhang, Zhen Fu Chen, Yuan Chu Gan, Qiu Wang Tao
• Keywords: Damage Diagnosis, Dynamic Propertry, Eigenfrequencies, Mode Shapes Derivatives, Self-Compacting Concrete (SCC)

References

[1] Doebling SW, Farrar CR, Prime MB. A summary review of vibration-based damage identification methods. Shock Vibr Digest 1998; 30(2): 91_105.

DOI: 10.1177/058310249803000201

[2] Xia Y, Hao H, Zanardo G, Deeks A. Long term vibration monitoring of an RC slab: Temperature and humidity effect. Eng Struct 2006; 28: 441_52.

DOI: 10.1016/j.engstruct.2005.09.001

[3] Pandey AK, Biswas M, Samman MM. Damage detection from changes in curvature mode shapes. J Sound Vib 1991; 145(2): 321_32.

DOI: 10.1016/0022-460x(91)90595-b

[4] Pandey AK, Biswas M. Damage detection in structures using changes in flexibility. J Sound Vib 1994; 169(1): 3_17.

[5] Ndambi J-M, Vantomme J, Harri K. Damage assessment in reinforced concrete beams using eigenfrequencies and mode shape derivatives. Eng Struct 2002; 24: 501_15.

DOI: 10.1016/s0141-0296(01)00117-1

[6] Schutter, G.D. (2005). Guidelines for Testing Fresh Self-compacting Concrete. Growth Contract No. GRD-2000-30024.

[7] Allemang RJ, Brown DL. A correlation coefficient for modal vector analysis. In: Proceedings of the 1st international modal analysis conference. 1982. p. 110_6.

[8] Neda Baghiee, M. Reza Esfahani, Kazem Moslem. Studies on damage and FRP strengthening of reinforced concrete beams by vibration monitoring, Eng Struct, 2009; pp.875-893.

DOI: 10.1016/j.engstruct.2008.12.009

[9] Levine N A J, Ewins D J. Spatial correlation of mode shapes, the coordinate modal assurance criterion (COMAC) [C]. Proceedings of the 6th International Modal Analysis Conference, 1988: 690-695.
