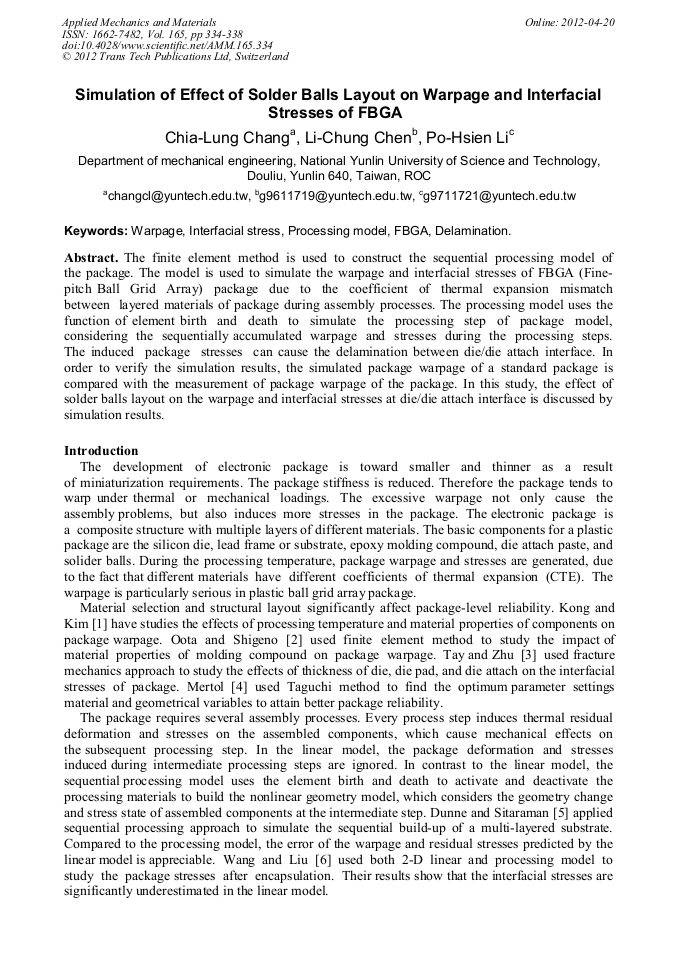

Simulation of Effect of Solder Balls Layout on Warpage and Interfacial Stresses of FBGA

Abstract:

The finite element method is used to construct the sequential processing model of the package. The model is used to simulate the warpage and interfacial stresses of FBGA (Fine-pitch Ball Grid Array) package due to the coefficient of thermal expansion mismatch between layered materials of package during assembly processes. The processing model uses the function of element birth and death to simulate the processing step of package model, considering the sequentially accumulated warpage and stresses during the processing steps. The induced package stresses can cause the delamination between die/die attach interface. In order to verify the simulation results, the simulated package warpage of a standard package is compared with the measurement of package warpage of the package. In this study, the effect of solder balls layout on the warpage and interfacial stresses at die/die attach interface is discussed by simulation results.

• Periodical: Applied Mechanics and Materials (Volume 165)
• Pages: 334-338
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.165.334
• Online since: April 2012
• Authors: Chia Lung Chang, Li Chung Chen, Po Hsien Li
• Keywords: Delamination, FBGA, Interfacial Stress, Processing Model, Warpage

References

[1] J.W.Y. Kong, J.K. Kim: Warpage in Plastic Packages: Effects of Process Conditions, Geometry and Materials. IEEE Transactions on Electronics Packaging Manufacturing Vol. 26 (2003), pp.245-252.

DOI: 10.1109/tepm.2003.820806

[2] K. Oota, K. Shigeno: Development of Molding Compounds for BGA. Electronic Components and Technology Conference (1995), pp.78-85.

DOI: 10.1109/ectc.1995.514365

[3] A.A.O. Tay, H. Zhu: A Numerical Study of the Effect of Die, Die Pad and Die Attach Thickness on Thin Plastic Packages. Electronic Components and Technology Conference (2002), pp.199-204.

DOI: 10.1109/ectc.2002.1008095

[4] A. Mertol: Optimization of High Pin Count Cavity-up Enhanced Plastic Ball Grid Array (EPBGA) Package for Robust Design. IEEE Transactions on Computers, Packaging, and Manufacturing Technology Vol. 20 (1997), pp.376-388.

DOI: 10.1109/96.641505

[5] R.C. Dunne, S.K. Sitaraman: Process Modeling for Sequential Build-Up of Multi-Layered Structures. Electronic Components and Technology Conference (1998), pp.353-361.

DOI: 10.1109/ectc.1998.678718

[6] J.J. Wang, S. Liu: Sequential Processing Mechanics Modeling for a Model IC Package. IEEE Componerts Packaging and Manufacturing Technology Society Vol. 20 (1997), pp.335-342.

DOI: 10.1109/3476.650966

[7] L.L. Mercado, H. Wieser, T. Hauck: Mold Delamination and Die Fracture Analysis of Mechatronic Packages. Electronic Components and Technology Conference (2001), pp.903-910.

DOI: 10.1109/ectc.2001.927902
