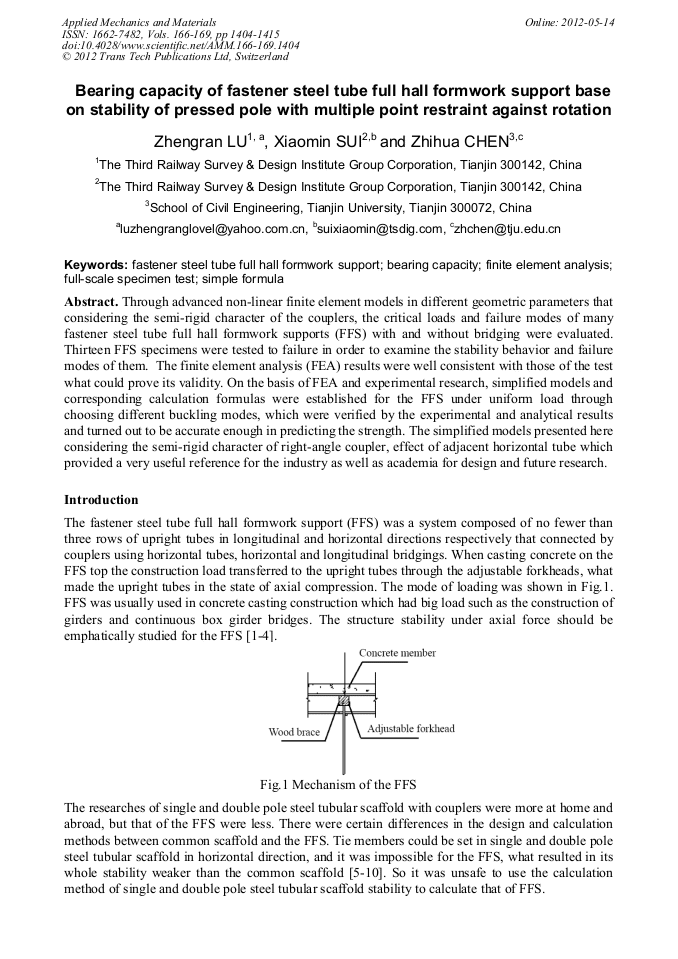

Bearing Capacity of Fastener Steel Tube Full Hall Formwork Support Base on Stability of Pressed Pole with Multiple Point Restraint against Rotation

Abstract:

Through advanced non-linear finite element models in different geometric parameters that considering the semi-rigid character of the couplers, the critical loads and failure modes of many fastener steel tube full hall formwork supports (FFS) with and without bridging were evaluated. Thirteen FFS specimens were tested to failure in order to examine the stability behavior and failure modes of them. The finite element analysis (FEA) results were well consistent with those of the test what could prove its validity. On the basis of FEA and experimental research, simplified models and corresponding calculation formulas were established for the FFS under uniform load through choosing different buckling modes, which were verified by the experimental and analytical results and turned out to be accurate enough in predicting the strength. The simplified models presented here considering the semi-rigid character of right-angle coupler, effect of adjacent horizontal tube which provided a very useful reference for the industry as well as academia for design and future research.

• Periodical: Applied Mechanics and Materials (Volumes 166-169)
• Pages: 1404-1415
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.166-169.1404
• Online since: May 2012
• Authors: Zheng Ran Lu, Xiao Min Sui, Zhi Hua Chen
• Keywords: Bearing Capacity, Fastener Steel Tube Full Hall Formwork Support, Finite Element Analysis (FEA), Full-Scale Specimen Test, Simple Formula

References

[1] AO Hong-fei, LI Guo-qiang. Analysis of Ultimate Load-Bearing Capacity for Independent Tube-and-Coupler Scaffold[J]. Building Construction, 2003, 25 (3): 214～217(in Chinese)

[2] AO Hong-fei, LI Guo-qiang. Investigation of overall load-bearing stability capacity of tube-and-couple scaffolds[J]. Chinese Quarterly of Mechanics, 2004, 25(2):213-218(in Chinese)

[3] Liu Jianmin, Li Huimin. Analysis of the factors influencing buckling load of steel tubular formwork support with couplers[J]. Industrial Construction, 2005, 35(S1): 758-760(in Chinese)

[4] J.L. Peng, A. D. E. Pan, W. F. Chen. Approximate analysis method for modular tubular falsework[J]. Journal of Structural Engineering, ASCE , 2001, 3(127):256-263.

[5] Xie Nan, Wang Yong. Study on load-carrying capacity of super high supports for formwork[J]. Engineering Mechanics, 2008, 25 Sup(1): 148-153(in Chinese)

[6] Wang Yong. Safety analysis of ultra-high fastener-style tubular steel formwork support[D]. Beijing: Beijing Jiaotong University, 2007(in Chinese)

[7] J.L. Peng, A.D. Pan, D.V. Rosowsky et al, High clearance scaffold systems during construction-I Structural modeling and modes of failure[J]. Engineering Structures, 1996, 18(3): 247-257

DOI: 10.1016/0141-0296(95)00144-1

[8] J.L. Peng, A.D. Pan, D.V. Rosowsky et al, High clearance scaffold systems during construction-II Structural modeling and modes of failure[J]. Engineering Structures, 1996, 18(3): 258-267

DOI: 10.1016/0141-0296(95)00145-x

[9] Jui-Lin Peng, Structural Modeling and Design Considerations for Double-Layer Shoring Systems[J]. Journal of Construction Engineering and Management, ASCE, 2004, 130(3): 368-377

DOI: 10.1061/(asce)0733-9364(2004)130:3(368)

[10] Weesner L.B., Jones H.L.. Experimental and analytical capacity of frame scaffolding[J]. Engineering Structures, 2001, 23(6): 592-599

DOI: 10.1016/s0141-0296(00)00087-0

[11] W F Chen. Stability Design of Semi—rigid Frame[J], John Wi1ey& Sons, 1996, 4(5): 37-48

[12] Chan S.L., Zhou Z.H., Chen W.F.. Stability analysis of semirigid steel Scaffolding[J]. Engineering Structures, 1995, 17(8): 568-574

DOI: 10.1016/0141-0296(95)00011-u

[13] Sang-SupLee, Tae-SupMoon. Moment-rotation model of semi-rigid connections with angles[J], Engineering Structure, 2002, 3(24): 227-237

DOI: 10.1016/s0141-0296(01)00066-9

[14] Nethercot DA.. Unified classification system for beam-to-column connections[J], Journal of Constructional Steel Research, 1998, 45(1): 39-65

DOI: 10.1016/s0143-974x(97)00064-3

[15] Hongbo Liu, Qiuhong Zhao, Xiaodun Wang, et al. Experimental and analytical studies on the stability of structural steel tube and coupler scaffolds without X-bracing[J]. Engineering Structures, 2010, 32(4):1002-1015

DOI: 10.1016/j.engstruct.2009.12.027

[16] Sang-SupLee, Tae-SupMoon. Moment-rotation model of semi-rigid connections with angles[J]. Engineering Structure, 2002, 3(24): 227-237

DOI: 10.1016/s0141-0296(01)00066-9

[17] N. Kishi, W. F. Chen, Y. Goto. Effective length factor of columns in semirigid and unbraced frames[J]. Journal of Structural Engineering, ASCE , 1997, 3(55):313-320.

DOI: 10.1061/(asce)0733-9445(1997)123:3(313)
