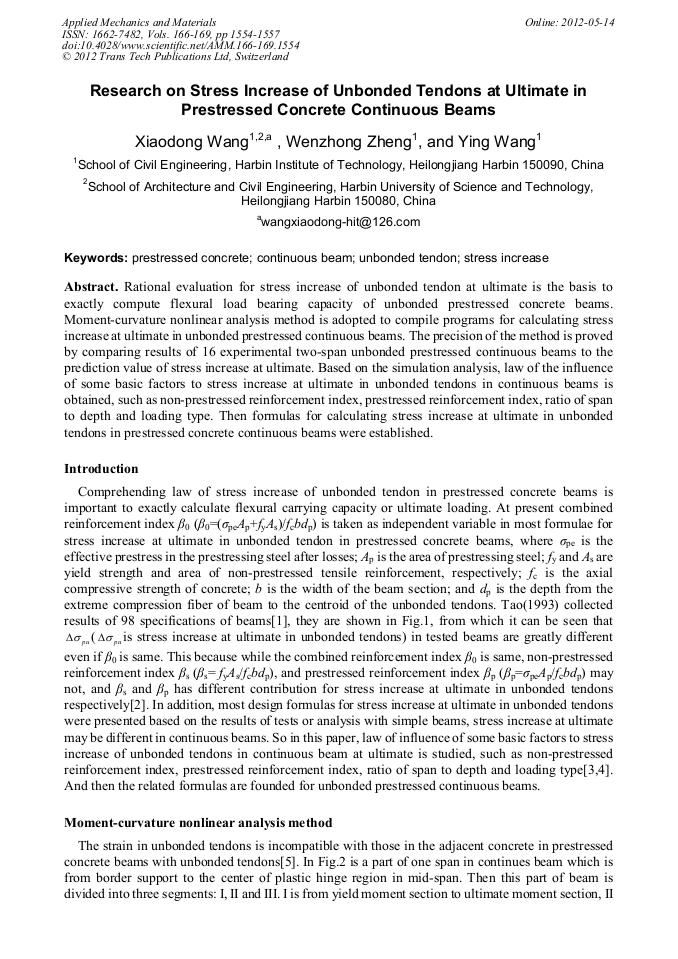

Research on Stress Increase of Unbonded Tendons at Ultimate in Prestressed Concrete Continuous Beams

Xiao Dong Wang; Wen Zhong Zheng; Ying Wang

doi:10.4028/www.scientific.net/AMM.166-169.1554

Paper Titles

Fatigue Life Prediction of Corroded RC Beams Strengthened with CFRP under Repeated Loads
p.1534

Improved Computing Method for Row Number of Bend-up Bars in Reinforced Concrete Beams
p.1540

Analysis on Rationality of Deformation Resistance Structural Component Ring Beam
p.1544

Calculation Method Investigation on Jacketing Reinforcement of RC Eccentric Compressive Column Subjected to Fire
p.1548

Research on Stress Increase of Unbonded Tendons at Ultimate in Prestressed Concrete Continuous Beams
p.1554

Study of Strain Monitoring in a Construction of House Rectification
p.1558

Experimental Study on Confinement Effectiveness of Different CFRP Hybridized Methods in Retrofitting Shear Deficient HSC Columns
p.1565

Investigation on Vibration Reduction Effects of a New Vibration Isolation Module for Pier Foundation
p.1574

Experimental Research on the Performance of Fiber Reinforced Plasterboard Filled with Concrete under Eccentric Axial Load
p.1578

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 166-169Research on Stress Increase of Unbonded Tendons at...

Research on Stress Increase of Unbonded Tendons at Ultimate in Prestressed Concrete Continuous Beams

Abstract:

Rational evaluation for stress increase of unbonded tendon at ultimate is the basis to exactly compute flexural load bearing capacity of unbonded prestressed concrete beams. Moment-curvature nonlinear analysis method is adopted to compile programs for calculating stress increase at ultimate in unbonded prestressed continuous beams. The precision of the method is proved by comparing results of 16 experimental two-span unbonded prestressed continuous beams to the prediction value of stress increase at ultimate. Based on the simulation analysis, law of the influence of some basic factors to stress increase at ultimate in unbonded tendons in continuous beams is obtained, such as non-prestressed reinforcement index, prestressed reinforcement index, ratio of span to depth and loading type. Then formulas for calculating stress increase at ultimate in unbonded tendons in prestressed concrete continuous beams were established.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 166-169)

Pages:

1554-1557

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.166-169.1554

Citation:

Cite this paper

Online since:

May 2012

Authors:

Xiao Dong Wang, Wen Zhong Zheng, Ying Wang

Keywords:

Continuous Beam, Prestressed Concrete, Stress Increase, Unbonded Tendon

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] X.K. Tao, Unbonded Prestressed Concrete Structure Design and Construction, Earthquake Publishing Company, Beijing, China,1993(in Chinese).

Google Scholar

[2] Y. Wang, X.D. Wang, W.Z. Zheng, Journal of Building Structures. Vol.29 (2008) 40-48 (in Chinese).

Google Scholar

[3] N.D. Ariyawardena, Design of precast prestressed concrete members using external prestressing. PCI Journal. 2002, 47(2):84-91.

DOI: 10.15554/pcij.03012002.84.94

Google Scholar

[4] S.Barakat, K. Bani-Hani, Multi-objective reliability- based optimization of prestressed concrete beams. Structural Safety, 2004，26(3):311-342.

DOI: 10.1016/j.strusafe.2003.09.001

Google Scholar

[5] A.E. Naaman, F.M, Stress at Ultimate in Unbonded Prestressing Tendons: Part1-Evalutaion of the state-of-art. ACI Structural Journal, 1991, 88(5):683-692.

Google Scholar

[6] M.H. Harajli, Effect of Span-depth Ratio on the Ultimate Steel Stress in Unbonded Prestressed Concrete Member. ACI Structural Journal. 1990, 87(8): 305~312.

DOI: 10.14359/2631

Google Scholar
