Contrast Analysis on Deformation Characteristic of Urban Subway Tunnel Excavation by Numerical Simulation and Field Measurement

Abstract:

Under the particular geological conditions of clay and sandy soil interbed, through numerical analysis and field monitoring, the surface settlement, horizontal deformation and the stress distribution were analyzed after the tunnel excavation in a metro station in Beijing, China. There are differences of surface deformation whether the backfill grouting behind arch during tunnel excavation. While the backfill grouting behind arch, the ground surface settlement and the horizontal displacement reach 9.36 mm and 2.16 mm respectively. But while no backfill grouting behind arch, the ground surface settlement and the horizontal displacement are 14.51 mm and 8.85 mm respectively. The maximum ground settlement induced by tunnel excavation is directly proportional to ground loss ratio. When the ground loss ratio is 1%, the result is well consistent with the field measurement value and the numerical simulation result.

You might also be interested in these eBooks

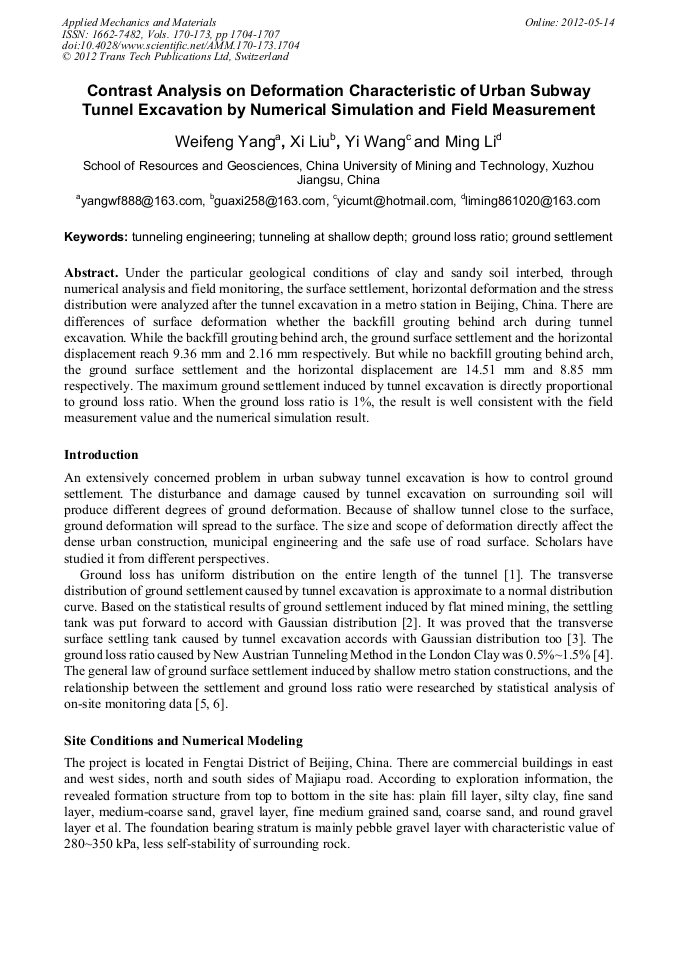

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 170-173)

Pages:

1704-1707

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.170-173.1704

Citation:

Cite this paper

Online since:

May 2012

Authors:

Wei Feng Yang, Xi Liu, Yi Wang, Ming Li

Keywords:

Ground Loss Ratio, Ground Settlement, Tunneling at Shallow Depth, Tunneling Engineering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.B. Peck: Deep Excavations and Tunneling in Soft Ground, Proceedings of 7th International Conference on Soil Mechanics and Foundation Engineering, Mexico City (1969), pp.225-290.

Google Scholar

[2] F. Martos: Concerning an Approximate Equation of the Subsidence Trough and Its Time Factors, International Strata Control Congress, Leipzig (1958), pp.191-205.

Google Scholar

[3] B. Schmidt: Settlements and Ground Movements Associated with Tunneling in Soils, University of Illinois (1969).

Google Scholar

[4] R.J. Mair: Settlement Effects of Bored Tunnels, Proceedings of International Symposium on Geotechnical Aspects of Underground Construction in Soft Ground. London (1996), pp.43-53.

Google Scholar

[5] H.J. Zhang, W.G. Qiu and Q. Wang: Railway Engineering (2009), pp.64-67. (In Chinese)

Google Scholar

[6] T. Wang, W.N. Liu and C.M. Zhang: Chinese Journal of Rock Mechanics and Engineering (2007), pp.1855-1861. (In Chinese)

Google Scholar
