Numerical Simulation of Heat Transfer Characteristics of Dimpled Plate

Abstract:

Designed a new type of plate heat exchanger-dimpled plate heat exchanger, then conducted a three-dimensional numerical simulation on flow, heat transfer and resistance characteristics of 15 kinds of different sizes dimpled plate heat exchangers by Fluent software，obtains the impact of the dimples geometric parameters such as dimple diameter, dimple spacing, dimple height on the heat transfer and flow characteristics. The results show that in different Reynolds number, dimple diameter, dimple spacing and dimple height on the effect of the dimple plate heat transfer efficiency is quite similar, and the impact becomes increasingly evident with the Reynolds numbers increasing. The combined effect of plate heat exchanger is best when dimple diameter, dimple spacing, dimple height are separately 12mm, 21mm, 4mm in the 15 kinds of different combination dimpled plates.

You might also be interested in these eBooks

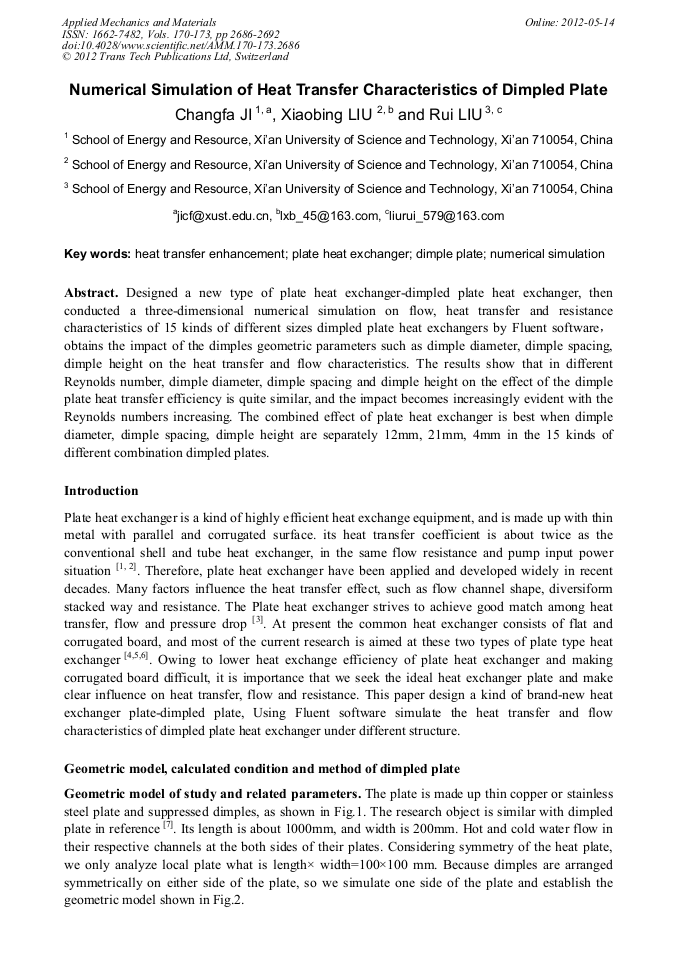

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 170-173)

Pages:

2686-2692

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.170-173.2686

Citation:

Cite this paper

Online since:

May 2012

Authors:

Chang Fa Ji, Xiao Bing Liu, Rui Liu

Keywords:

Dimple Plate, Heat Transfer Enhancement, Numerical Simulation, Plate Heat Exchanger

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wenquan Tao. Numerical Heat Transfer. In Chinese. Xi 'an Jiaotong University Publications, Xi'an, (2001)

Google Scholar

[2] Meizhong Shi, zhongzheng Wang. Theory and Design of Heat exchanger. In Chinese. Southeast University Publications, Nanjing (2002)

Google Scholar

[3] Yasar Islamoglu, Cem Parmaksizoglu. Applied Thermal Engineering, Vol.18(2003), pp.979-987

Google Scholar

[4] Chuanshan Dai. In Chinese. District heating,Vol.29 (1995), p.46~47

Google Scholar

[5] Ning Qu. Analysis of heat transfer and flow in plate heat exchangers. In Chinese. Shangdong University, Jinan (2005)

Google Scholar

[6] Zhihao Ji, Guanqing Wang, Jie Liu, Bangchun Wen. In Chinese. Journal of hydrodynamics. Vol.19 (2004), p.26~30

Google Scholar

[7] Xiaoxia WANG. The experimental research of heat transfer characteristics in dimples plate. In Chinese. Xi'an University of Science and Technology，Xi'an (2008)

Google Scholar

[8] Wenquan Tao. Advances in Computational Heat Transfer. In Chinese. Science Publications, Beijing (2000)

Google Scholar

[9] Debin Huang, Xianhe Deng, Huawei Xing. In Chinese. Journal Of Chemical Engineering Of Chinese Universities.Vol. 17(2003), pp.146-150

Google Scholar
