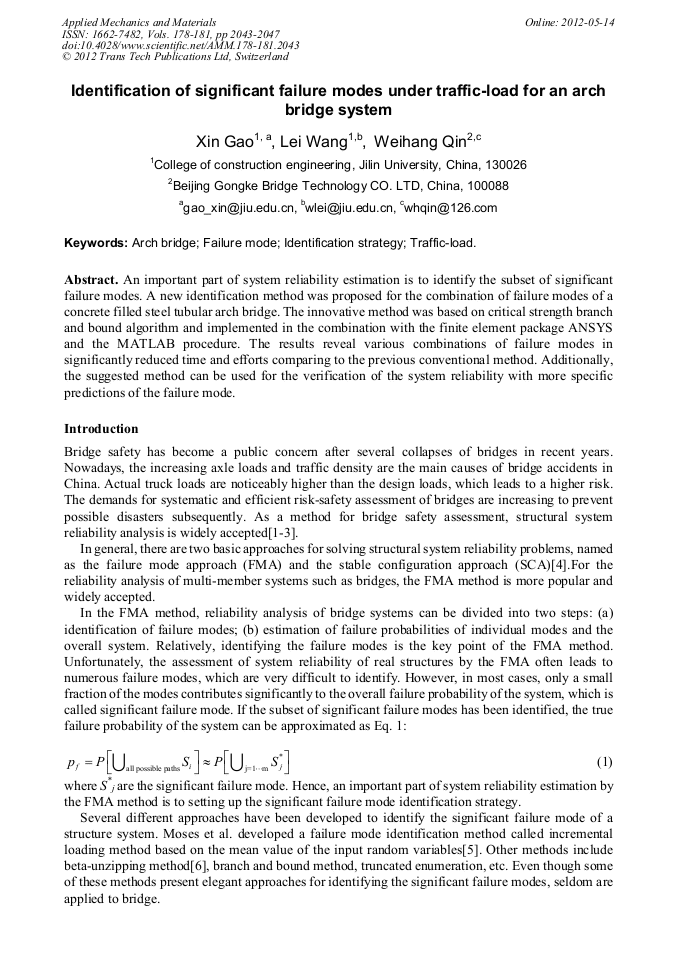

Identification of Significant Failure Modes under Traffic-Load for an Arch Bridge System

Abstract:

An important part of system reliability estimation is to identify the subset of significant failure modes. A new identification method was proposed for the combination of failure modes of a concrete filled steel tubular arch bridge. The innovative method was based on critical strength branch and bound algorithm and implemented in the combination with the finite element package ANSYS and the MATLAB procedure. The results reveal various combinations of failure modes in significantly reduced time and efforts comparing to the previous conventional method. Additionally, the suggested method can be used for the verification of the system reliability with more specific predictions of the failure mode.

You might also be interested in these eBooks

Sustainable Environment and Transportation

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 178-181)

Pages:

2043-2047

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.178-181.2043

Citation:

Cite this paper

Online since:

May 2012

Authors:

Xin Gao, Lei Wang, Wei Hang Qin

Keywords:

Arch Bridge, Failure Mode, Identification Strategy, Traffic-Load

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. S. Nowak. System Reliability Models for Bridge Structures. Bulletin of the Polish Academy of Sciences: Technical Sciences. 2004,(52):321-328

Google Scholar

[2] N. Wang, C. O'Malley, B. R. Ellingwood, et al. Bridge Rating Using System Reliability Assessment. I: Assessment and Verification by Load Testing. Journal of Bridge Engineering. 2011,(16):854-862

DOI: 10.1061/(asce)be.1943-5592.0000172

Google Scholar

[3] N. Wang, B. R. Ellingwood & A.-H. Zureick. Bridge Rating Using System Reliability Assessment. Ii: Improvements to Bridge Rating Practices. Journal of Bridge Engineering. 2011,(16):863-871

DOI: 10.1061/(asce)be.1943-5592.0000171

Google Scholar

[4] S. T. Quek. Structural System Reliability by the Method of Stable Configuration. In. University of Illinois at Urbana-Champaign, United States, Illinois (1987)

Google Scholar

[5] F. Moses & M. R. Rashedi. Application of System Reliability to Structural Safety. In Proceedings, 4th International Conference - Applications of Statistics and Probability in Soil and Structural Engineering. Pitagora Editrice, Bologna, Italy, Florence, Italy 1983pp. 573-584

Google Scholar

[6] P. Thoft-Christensen & Y. Murotsu. Application of Structural Systems Reliability Theory. Springer-Verlag:(1986)

DOI: 10.1007/978-3-642-82764-8

Google Scholar

[7] Cong. Dong. Development on Modern Reliability Analysis Theory of Structural Systems and It's Applications. Science Press:2001. (In Chinese)

Google Scholar

[8] F. Moses. System Reliability Developments in Structural Engineering. Structure Safety. 1982,(1):3-13

Google Scholar

[9] Weimin. Yan. Data Structures. 1 ed. Tsinghua:2000. (In Chinese)

Google Scholar

[10] Baochun Chen. Concrete Filled Steel Tube Arch Bridge. 2 ed. China Communications Press:2007. (In Chinese)

Google Scholar
