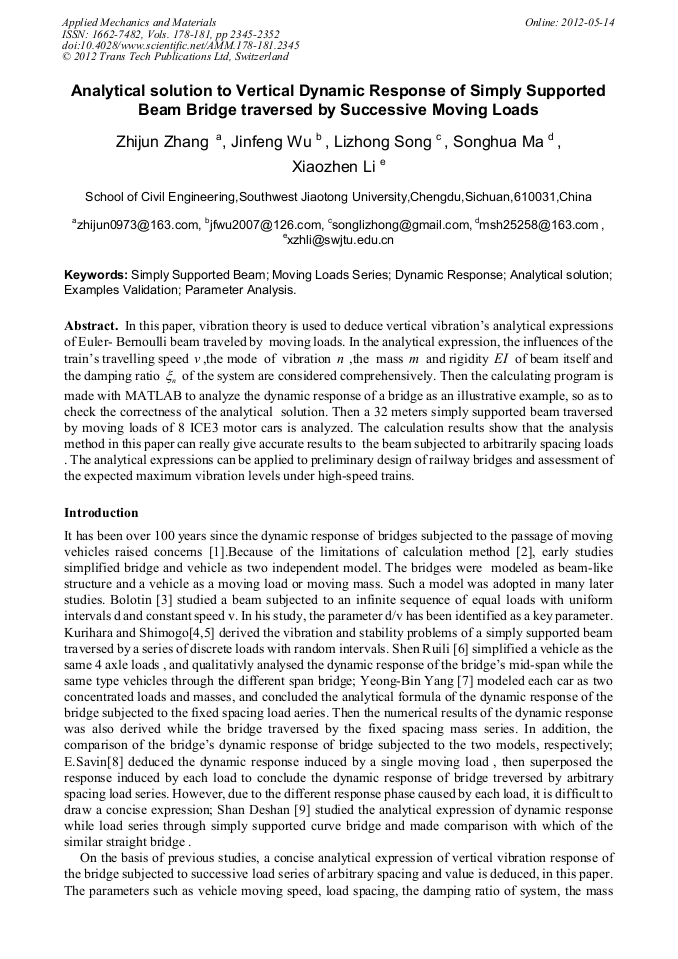

Analytical Solution to Vertical Dynamic Response of Simply Supported Beam Bridge Traversed by Successive Moving Loads

Abstract:

In this paper, vibration theory is used to deduce vertical vibration’s analytical expressions of Euler- Bernoulli beam traveled by moving loads. In the analytical expression, the influences of the train’s travelling speed ,the mode of vibration ,the mass and rigidity of beam itself and the damping ratio of the system are considered comprehensively. Then the calculating program is made with MATLAB to analyze the dynamic response of a bridge as an illustrative example, so as to check the correctness of the analytical solution. Then a 32 meters simply supported beam traversed by moving loads of 8 ICE3 motor cars is analyzed. The calculation results show that the analysis method in this paper can really give accurate results to the beam subjected to arbitrarily spacing loads . The analytical expressions can be applied to preliminary design of railway bridges and assessment of the expected maximum vibration levels under high-speed trains.

• Periodical: Applied Mechanics and Materials (Volumes 178-181)
• Pages: 2345-2352
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.178-181.2345
• Online since: May 2012
• Authors: Zhi Jun Zhang, Jin Feng Wu, Li Zhong Song, Song Hua Ma, Xiao Zhen Li
• Keywords: Analytical Solution, Dynamic Response, Examples Validation, Moving Loads Series, Parameter Analysis, Simply Supported Beam

References

[1] Li Xiaozhen. Studies on theory and applicatiobn of train-bridge system coupling vibration in high -speed railway [D]. Chengdu: Southwest Jiaotong University, 2000（in Chinese）

[2] Li Xiaozhen,Qiang Shizhong. State-of-the-art review and trend of studies on vehicle-bridge interaction [J].Journal of the China Railway Society,2002,24(5):112-119.(in Chinese)

[3] Bolotin, V. V. The dynamic stability of elastic systems [J]. HoldenDay, San Francisco, CA, 1964.

[4] Kurihara, M. and Shimogo, T. Vibration of an elastic beam subjected to discrete moving loads. [J]. Mech. Design, ASME 1978, 100(7): 514-519.

DOI: 10.1115/1.3453960

[5] Kurihara, M. and Shimogo, T. Stability of a simply supported beam subjected to randomly spaced moving loads. [J]. Mech. Design, ASME 1978, 100(7): 507-513. (in Chinese)

DOI: 10.1115/1.3453959

[6] Shen Ruili. Research of vertical vibration response of simple supported beam bridge on high speed railways [J]. China Railway Science, 1996, 17(3): 24-34. (in Chinese)

[7] Y.-B. YANG, J.-D. YAU and L.-C. HSU. 1997 Engineering Structures 19, 936-944. Vibration of Simple Beams due to Trains Moving at High Speeds. (in Chinese)

DOI: 10.1016/s0141-0296(97)00001-1

[8] E.Savin.2001 Journal of Sound and Vibration 248(2), 267-288. Dynamic Amplification Factor and Response Spectrum for the Evaluation of Vibrations of Beams Under Successive Moving Loads.

DOI: 10.1006/jsvi.2001.3787

[9] Shan De-shan, Li Qiao. Dynamic Response of simple supported Curved-beam under successive moving loads [J]. Journal of Chongqing Jiaotong Institute , 2001,20(1):6-18 . (in Chinese)

[10] Li Guohao. Stability and vibration of bridge structures (Revised Edition) [M]. Beijing: China Railway Press, 2010.3. 291-300. (in Chinese)

[11] Ray Clough , Joseph Penzien ; Wang Guangyuan etc translate . Dynamics of Structures/[America] [M]. 2nd ed (Revised Edition). Beijing: Higher Education Press, 2006.11.
