Design and Simulation of a Pipeline Analog-to-Digital Converter

Abstract:

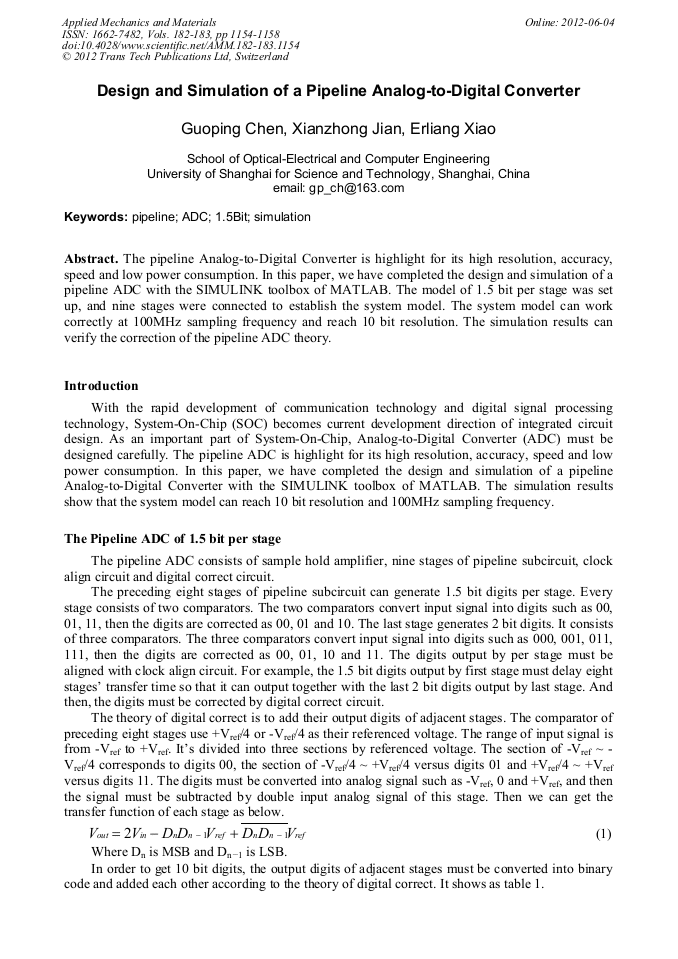

The pipeline Analog-to-Digital Converter is highlight for its high resolution, accuracy, speed and low power consumption. In this paper, we have completed the design and simulation of a pipeline ADC with the SIMULINK toolbox of MATLAB. The model of 1.5 bit per stage was set up, and nine stages were connected to establish the system model. The system model can work correctly at 100MHz sampling frequency and reach 10 bit resolution. The simulation results can verify the correction of the pipeline ADC theory.
