Effects of Accelerated Aging Period of Time at 180°C on Tensile Property of Plain Woven Fabric/Epoxy Resin Laminated Composites

Lei Lei Song; Quan Rong Liu; Jia Lu Li

doi:10.4028/www.scientific.net/AMM.182-183.76

Paper Titles

Synthesis of Pure Bi₁₂SiO₂₀ Powder by Molten Salt Method
p.52

Damage Behavior of Foam Core Sandwich Composites Subjected to Quasi-Static Indentation Testing
p.57

Study on the Impact Damage Characteristic of the Ex-Situ Toughened Composite Laminates
p.65

Flexible Characteristics of Novel OLED Materials
p.72

Effects of Accelerated Aging Period of Time at 180°C on Tensile Property of Plain Woven Fabric/Epoxy Resin Laminated Composites
p.76

A Study on Polarization Experiment and Mechanical Behavior for PVDF Film
p.80

The Effects of Fiber Volume Fraction on the Experiment Modal Behavior of 0°/90° Carbon Fiber Plain Woven Fabric/Epoxy Resin Composites
p.85

Bending Properties of Four-Layer Biaxial Weft Knitted Fabric Reinforced Composite Materials
p.89

Tailoring of Thermal Transition Temperature and Toughening of Shape Memory Epoxy Polymer
p.93

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 182-183Effects of Accelerated Aging Period of Time at...

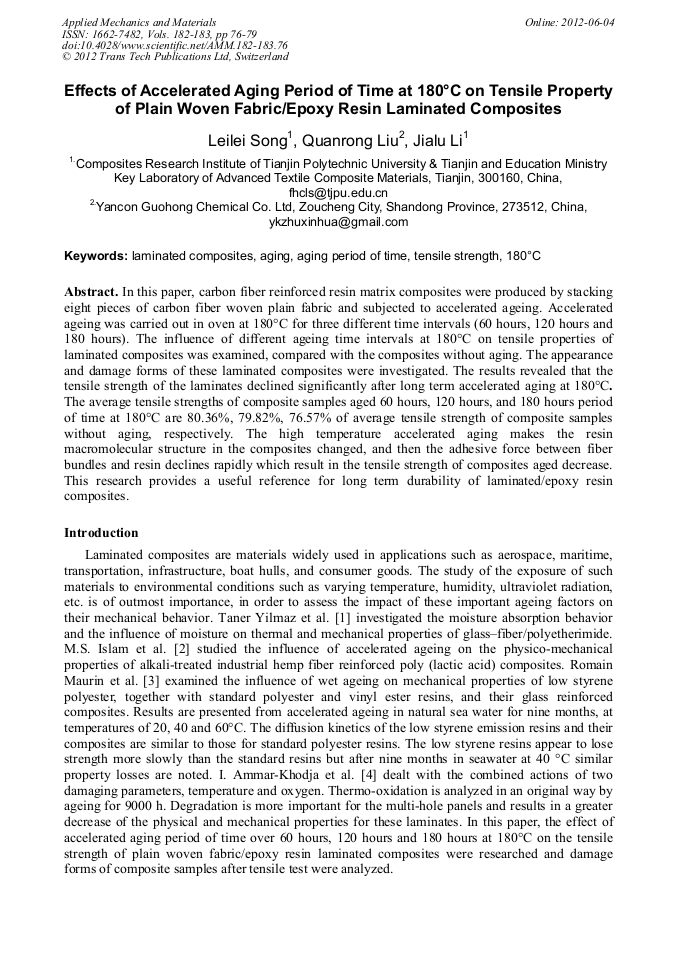

Effects of Accelerated Aging Period of Time at 180°C on Tensile Property of Plain Woven Fabric/Epoxy Resin Laminated Composites

Abstract:

In this paper, carbon fiber reinforced resin matrix composites were produced by stacking eight pieces of carbon fiber woven plain fabric and subjected to accelerated ageing. Accelerated ageing was carried out in oven at 180°C for three different time intervals (60 hours, 120 hours and 180 hours). The influence of different ageing time intervals at 180°C on tensile properties of laminated composites was examined, compared with the composites without aging. The appearance and damage forms of these laminated composites were investigated. The results revealed that the tensile strength of the laminates declined significantly after long term accelerated aging at 180°C. The average tensile strengths of composite samples aged 60 hours, 120 hours, and 180 hours period of time at 180°C are 80.36%, 79.82%, 76.57% of average tensile strength of composite samples without aging, respectively. The high temperature accelerated aging makes the resin macromolecular structure in the composites changed, and then the adhesive force between fiber bundles and resin declines rapidly which result in the tensile strength of composites aged decrease. This research provides a useful reference for long term durability of laminated/epoxy resin composites.
