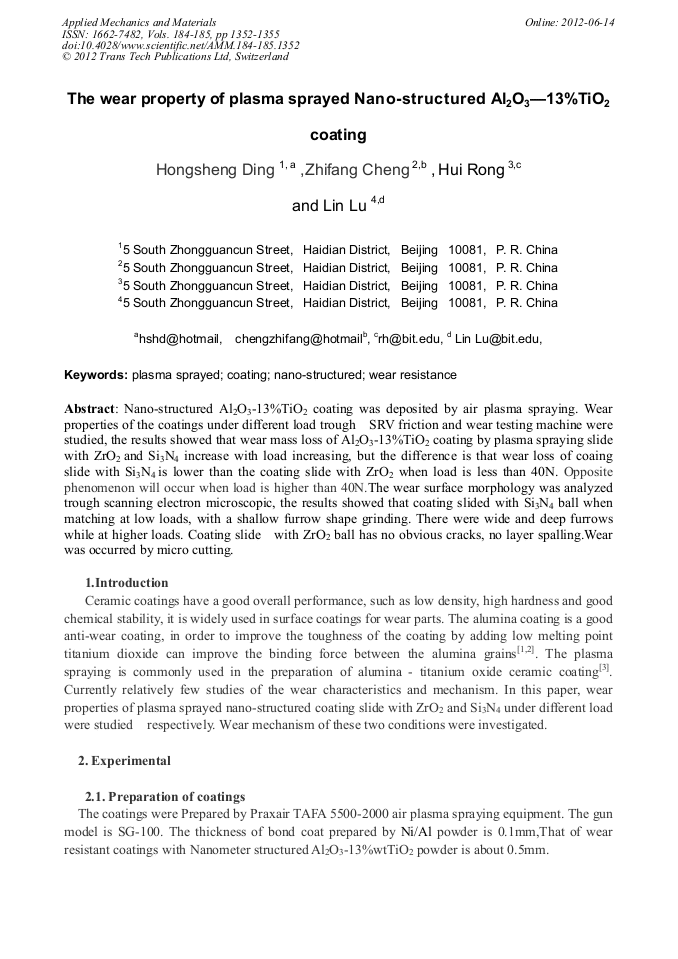

The Wear Property of Plasma Sprayed Nano-Structured Al₂O₃-13%TiO₂ Coating

Abstract:

Nano-structured Al2O3-13%TiO2 coating was deposited by air plasma spraying. Wear properties of the coatings under different load trough SRV friction and wear testing machine were studied, the results showed that wear mass loss of Al2O3-13%TiO2 coating by plasma spraying slide with ZrO2 and Si3N4 increase with load increasing, but the difference is that wear loss of coaing slide with Si3N4 ¬is lower than the coating slide with ZrO2 when load is less than 40N. Opposite phenomenon will occur when load is higher than 40N.The wear surface morphology was analyzed trough scanning electron microscopic, the results showed that coating slided with Si3N4 ball when matching at low loads, with a shallow furrow shape grinding. There were wide and deep furrows while at higher loads. Coating slide with ZrO2 ball has no obvious cracks, no layer spalling.Wear was occurred by micro cutting.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 1352-1355
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.1352
• Online since: June 2012
• Authors: Hong Sheng Ding, Zhi Fang Cheng, Hui Rong, Lin Lu
• Keywords: Coating, Nano-Structured, Plasma Sprayed, Wear Resistance

References

[1] E. Otterstein,G. Karapetyan,R. Nicula,M. Stir, C. Schick, and E. Burkel. Sol -gel synthesis and characterization of fine-grained ceramics in the alumina–titania system [J]. Thermochim. Acta, 2008, 468: 10-14.

DOI: 10.1016/j.tca.2007.11.023

[2] Lei M K, Li P. Wear and corrosion resistance of Al ion implanted AZ31 magnesium alloy[J]. Surface &Coatings Technology , 2007, 201: 5182 - 5185.

DOI: 10.1016/j.surfcoat.2006.07.091

[3] Fauchais P, Montavon G, Vardelle M, et al. Developments in direct current plasma spraying[J] . Surface and Coatings Technology, 2006, 201(5): 1908-(1921).

DOI: 10.1016/j.surfcoat.2006.04.033

[4] D.M. Ibrahim, and Y.M. Abu-Ayana. Preparation and characterization of ultrafine alumina via sol-gel polymeric route [J] . Mater. Chem. Phys. 2008, 111(2-3): 326-330.

DOI: 10.1016/j.matchemphys.2008.04.023

[5] R. Ianos,I. Lazu, and C. Picurariu. The influence of combustion synthesis conditions on the a-Al2O3 powder preparation [J]. J. Mater. Sci., 2009, 44(4): 1016-1023.

[6] Y Wang, S Lim, J L Luo, et al. Tribological and corrosion behaviors of Al2O3 polymer nanocomposite coatings[J]. Wear, 2006, 137(33): 231-240.

DOI: 10.1016/j.wear.2005.06.013

[7] Gadow R, Kern F, Killinger A. Manufacturing Technologies for nanocomposite ceramic structural materials and coatings[J] . Materials Science and Engineering B, 2008, 148 (1-3): 58- 64.

DOI: 10.1016/j.mseb.2007.09.066

[8] Wang Y, TianW, Yang Y. Thermal shock behavior of nanostructured and conventional Al2O3 /13wt%TiO2 coatings fabricated by plasma sprayin g[ J] . Surface and Coatings Technology, 2007, 201(18): 7746- 7754.

DOI: 10.1016/j.surfcoat.2007.03.015

[9] Parco M, Zhao L D, Zwick J, et al. Investigation of HVOF spraying on magnesium alloys[J]. Surf Coat Technol, 2006, 201(6): 3269-3274.

DOI: 10.1016/j.surfcoat.2006.06.047

[10] Babu S S, Martuk antke R P, David AS. Toward prediction of microstructural evolution during laser surface alloying[J]. Metal lurgical and Materials Transaction , 2002, 22(9): 1189-1200.

DOI: 10.1007/s11661-002-0220-4
