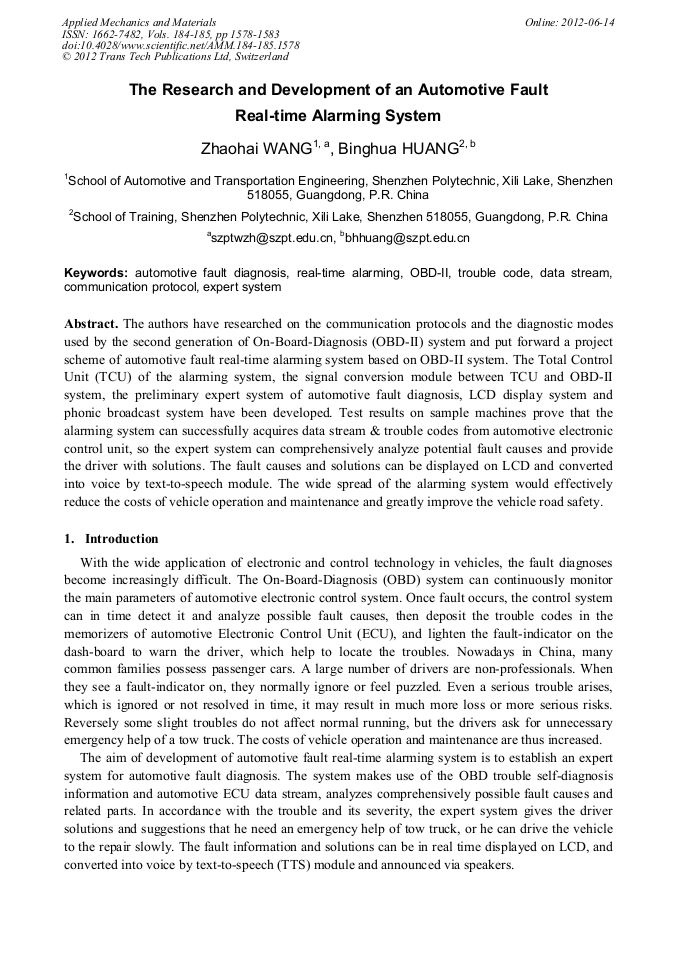

The Research and Development of an Automotive Fault Real-Time Alarming System

Abstract:

The authors have researched on the communication protocols and the diagnostic modes used by the second generation of On-Board-Diagnosis (OBD-II) system and put forward a project scheme of automotive fault real-time alarming system based on OBD-II system. The Total Control Unit (TCU) of the alarming system, the signal conversion module between TCU and OBD-II system, the preliminary expert system of automotive fault diagnosis, LCD display system and phonic broadcast system have been developed. Test results on sample machines prove that the alarming system can successfully acquires data stream & trouble codes from automotive electronic control unit, so the expert system can comprehensively analyze potential fault causes and provide the driver with solutions. The fault causes and solutions can be displayed on LCD and converted into voice by text-to-speech module. The wide spread of the alarming system would effectively reduce the costs of vehicle operation and maintenance and greatly improve the vehicle road safety.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 1578-1583
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.1578
• Online since: June 2012
• Authors: Zhao Hai Wang, Bing Hua Huang
• Keywords: Automotive Fault Diagnosis, Communication Protocol, Data Stream, Expert System, OBD-II, Real-Time Alarming, Trouble Code

References

[1] R. S. Cox. Introduction to OBD- II System (Chinese edition). China Machine Press. (2006).

[2] Atmel Company. 8-Bit AVR Micro-controller with 16K Bytes in-system Programmable Flash Datasheet.

[3] ELM Electronics Company. ELM 327 OBD to RS232 Interpreter Datasheet. (2006).

[4] AnHui USTC iflytek Co., Ltd. XF-S4240 Speech Synthesis Module Development Guide. (2007).

[5] E/E Diagnostic Test Modes. SAE J1979.

[6] Wen Shen, Weiqian Zhan. The Entry Guidance Of C Language about AVR Microcontroller. Tsinghua University Press, (2003).

[7] OBDII SCAN TOOL. SAE J1978.

[8] John Van Gilder. On-Board Diagnostics (OBD) History and Current Status. Shanghai International Symposium on Automotive Electronics and Advanced Technology. (2005).

[9] Tu Vi-Minh. Status On-Board Diagnostics and Challenges from Supplier Perspective. Shanghai International Symposium on Automotive Electronics and Advanced Technology. (2005).

[10] Jeffey S., Hepburn, Douglas A. A Review of the Dual EGO Sensor Method for OBD-ⅡCatalyst Efficiency Monitoring. SAE 942057, (1994).

[11] Martin Klenk, Winfried Moser, Werner Mueller, et al. Misfire Detection by Evaluating Crankshaft Speed—A Means to Comply with OBD-Ⅱ. SAE 930399, (1993).

DOI: 10.4271/930399

[12] Youngkyo Chung, Choongsik Bae, Sangmin Choi. Application of a Wide Range Oxygen Sensor for the Misfire Detection. SAE1999-01-1485.
