Tribological Behavior of Graphite Encapsulated Nickel Nanoparticles Formed by Ball-Milling and Annealing Method

Abstract:

Graphite encapsulated nickel nanoparticles were prepared by ball-milling and subsequent annealing a mixture of expanded graphite and nickel powders. The products were characterized by transmission electron microscope (TEM), and their tribological behavior used as lubricating additive was investigated by using a high-temperature tribo-tester. The morphology of the worn tribo-surfaces was observed by scanning electron microscope (SEM). The results show that as-prepared graphite encapsulated nickel nanoparticles with a size range of 10-150 nm have a marked anti-friction and wear resistance effect, and the larger the applied load, the lower the friction coefficient and the wear severity.

You might also be interested in these eBooks

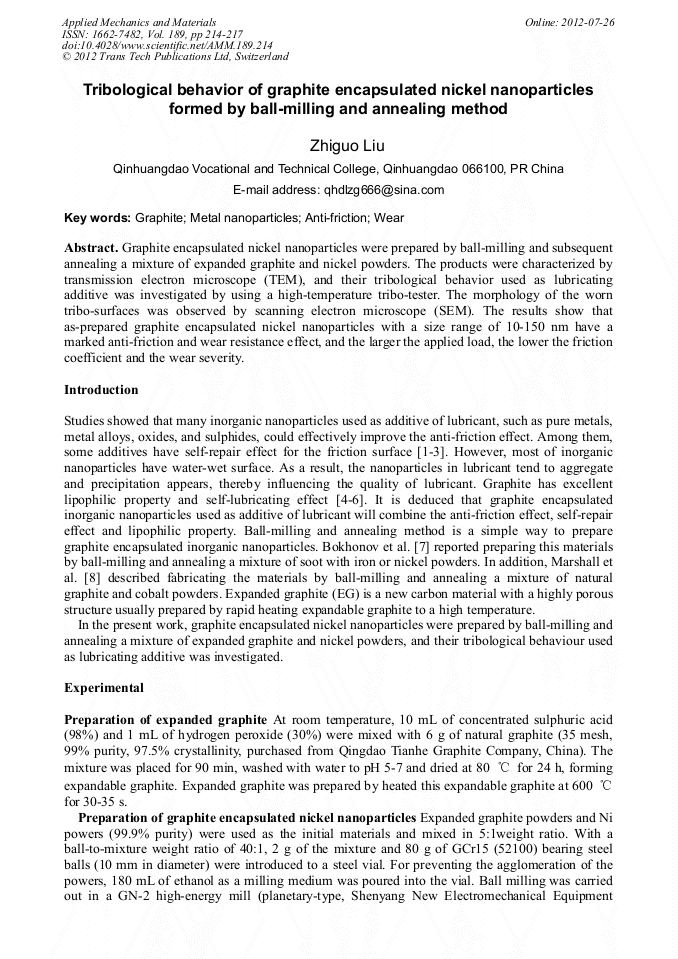

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 189)

Pages:

214-217

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.189.214

Citation:

Cite this paper

Online since:

July 2012

Authors:

Zhi Guo Liu

Keywords:

Anti-Friction, Graphite, Metal Nanoparticle, Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H.Z. Wo, K.H. Hu, X.G. Hu, Tribological properties of MoS2 nanoparticles as additive in machine oil, Tribology24 (2004) 33-37.

Google Scholar

[2] J.X. Zhang, K. Liu, X.G. Hu, Effect of ultra-dispersed diamond nanoparticles as additive on the tribological properties of 15W/30 engine oil, Tribology, 2002, 22 (2002) 44-48.

Google Scholar

[3] J. F. Zhou, Z.J. Zhang, X.B. Wang, Investigation of the tri-bological behavior of oil-soluble Cu nanoparticles as additive in liquid paraffin, Tribology 20 (2000) 123-126.

Google Scholar

[4] H.D. Huang, J. P. Tu, L.P. Gan, T. Z. Zou, C.Z. Li, X.B. Zhao, Preparation and tribological properties of graphite nanosheets as additive in liquid paraffin, Tribology 25(2005) 312-316.

Google Scholar

[5] F. Li, F. Y. Yan, L. G. Yu, The tribological behaviors of copper-coated graphite filled PTFE composites, Wear 237 (2000) 33-38.

DOI: 10.1016/s0043-1648(99)00303-8

Google Scholar

[6] L. P. Ning, J.B. Wang, Effect of copper and graphite on the mechanical and tribological properties of Fe-based oil-containing self-lubricating composites, Tribology 21(2001) 335-339.

Google Scholar

[7] B. Bokhonov, M. Korchagin, The formation of graphite encapsulated metal nanoparticles during mechanical activation and annealing of soot with iron and nickel, J. Alloys Compd. 333 (2002) 308-320.

DOI: 10.1016/s0925-8388(01)01741-8

Google Scholar

[8] P. M. Craig, A. W. Michael, Ball milling and annealing graphite in the presence of cobalt, Carbon 42 (2004) 2179-2186.

DOI: 10.1016/j.carbon.2004.04.028

Google Scholar
