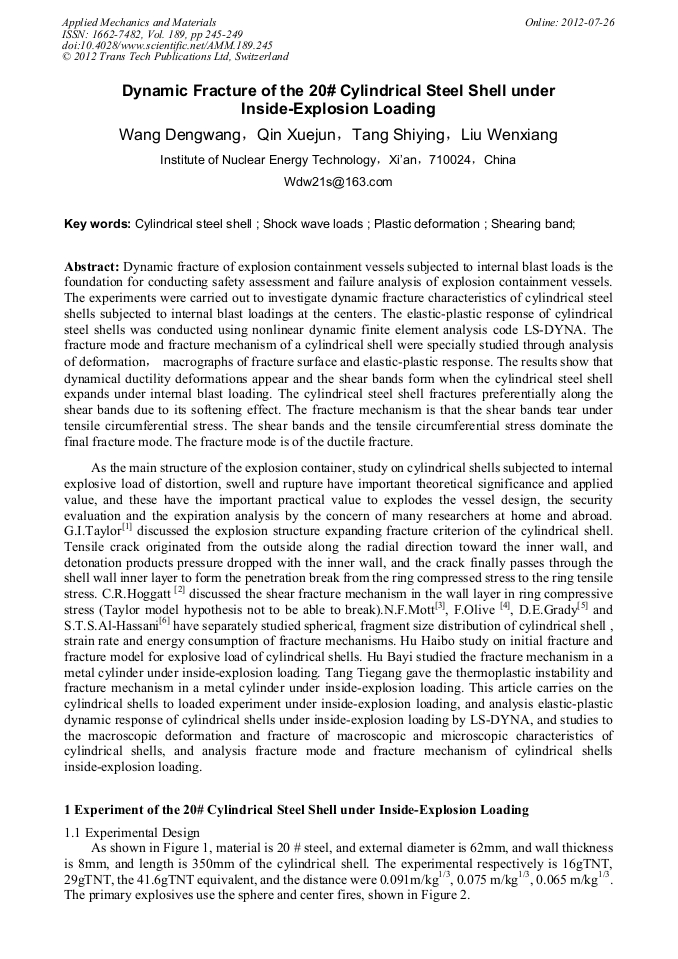

Dynamic Fracture of the 20# Cylindrical Steel Shell under Inside-Explosion Loading

Abstract:

Dynamic fracture of explosion containment vessels subjected to internal blast loads is the foundation for conducting safety assessment and failure analysis of explosion containment vessels. The experiments were carried out to investigate dynamic fracture characteristics of cylindrical steel shells subjected to internal blast loadings at the centers. The elastic-plastic response of cylindrical steel shells was conducted using nonlinear dynamic finite element analysis code LS-DYNA. The fracture mode and fracture mechanism of a cylindrical shell were specially studied through analysis of deformation， macrographs of fracture surface and elastic-plastic response. The results show that dynamical ductility deformations appear and the shear bands form when the cylindrical steel shell expands under internal blast loading. The cylindrical steel shell fractures preferentially along the shear bands due to its softening effect. The fracture mechanism is that the shear bands tear under tensile circumferential stress. The shear bands and the tensile circumferential stress dominate the final fracture mode. The fracture mode is of the ductile fracture.

• Periodical: Applied Mechanics and Materials (Volume 189)
• Pages: 245-249
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.189.245
• Online since: July 2012
• Authors: Deng Wang Wang, Xue Jun Qin, Shi Ying Tang, Wen Xiang Liu
• Keywords: Cylindrical Steel Shell, Plastic Deformation, Shearing Band, Shock Wave Loads

References

[1] Taylor G I. Scientific Paper of G. I. Taylor( Ⅲ，No. 44) [M] . London : Cambridge University Press ， (1963).

[2] Hoggatt C R ， Recht R F. Fracture behavior of tubular bombs[J ] . Journal of Applied Physics , 1968 ， 30 : 315～321.

[3] Mott N F. Fragmentation of shell cases[A] . Proceedings of Research Society[C] . London : [ s. n. ] ， 1947 ，189 : 300—308.

[4] Olive F ， Nicaud A ， Marilleau J ， et al. Rupture behaviour of metals in explosive expansion[J ] . Institute of Physics Conference Series ，1979 ，47 : 242 —252.

[5] Grady D E ， Hightower M M. Fracture of a 4140 steel cylinder under high explosive loading[R] . Sandia National Laboratories Report ， Sand29020882C ， (1990).

[6] Al2Hassani S T S ， Johnson W. The dynamics of the fragmentation process for spherical shells containing explosives[J ] . International Journal of Mechanics Science ， 1969 ，11 : 545 —549.
