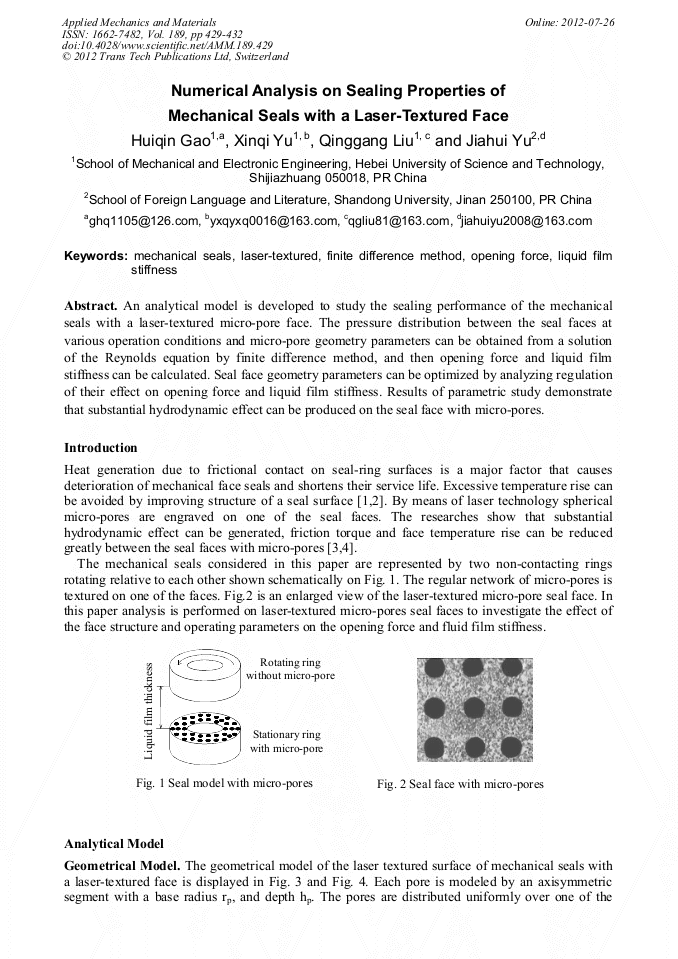

Numerical Analysis on Sealing Properties of Mechanical Seals with a Laser-Textured Face

Abstract:

An analytical model is developed to study the sealing performance of the mechanical seals with a laser-textured micro-pore face. The pressure distribution between the seal faces at various operation conditions and micro-pore geometry parameters can be obtained from a solution of the Reynolds equation by finite difference method, and then opening force and liquid film stiffness can be calculated. Seal face geometry parameters can be optimized by analyzing regulation of their effect on opening force and liquid film stiffness. Results of parametric study demonstrate that substantial hydrodynamic effect can be produced on the seal face with micro-pores.

• Periodical: Applied Mechanics and Materials (Volume 189)
• Pages: 429-432
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.189.429
• Online since: July 2012
• Authors: Hui Qin Hao, Xin Qi Yu, Qing Gang Liu, Jia Hui Yu
• Keywords: Finite Difference Method (FDM), Laser-Textured, Liquid Film Stiffness, Mechanical Seal, Opening Force

References

[1] T. Lai, Development of non-connecting non-leaking spiral groove liquid face seals, Lubrication Engineering. 50 (1994) 625-631.

[2] Y. Kligerman, I. Etsion, Analysis of the Hydrodynamic Effects in a Surface Textured Circumferential Gas Seal, Tribology Transactions. 44(2001) 472-478.

DOI: 10.1080/10402000108982483

[3] X.Q. Yu, M.H. Liu and ZH.H. Wang, Experimental Investigation on friction performance of Mechanical Seals with a Laser-textured Seal Face, Materials Science Forum. 532 (2006)81-84.

DOI: 10.4028/www.scientific.net/msf.532-533.81

[4] X.Q. Yu, P.Y. Peng and H.Q. Gao, Analysis of the Hydrodynamic Effect in Laser-Textured Mechanical Seal Faces, Advanced Materials Research. 97 (2010) 4505-4508.

DOI: 10.4028/www.scientific.net/amr.97-101.4505

[5] P.R. Yang, Numerical analysis for fluid lubrication, Defence Industry Press, Beijng, 1998 (In Chinese).
