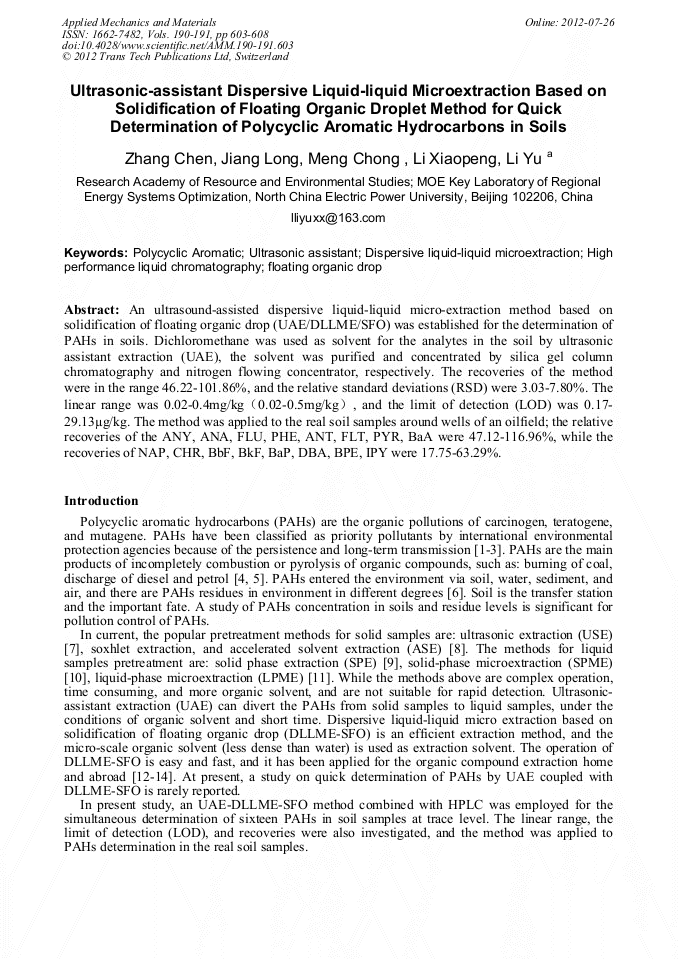

Ultrasonic-Assistant Dispersive Liquid-Liquid Microextraction Based on Solidification of Floating Organic Droplet Method for Quick Determination of Polycyclic Aromatic Hydrocarbons in Soils

Abstract:

An ultrasound-assisted dispersive liquid-liquid micro-extraction method based on solidification of floating organic drop (UAE/DLLME/SFO) was established for the determination of PAHs in soils. Dichloromethane was used as solvent for the analytes in the soil by ultrasonic assistant extraction (UAE), the solvent was purified and concentrated by silica gel column chromatography and nitrogen flowing concentrator, respectively. The recoveries of the method were in the range 46.22-101.86%, and the relative standard deviations (RSD) were 3.03-7.80%. The linear range was 0.02-0.4mg/kg（0.02-0.5mg/kg）, and the limit of detection (LOD) was 0.17-29.13µg/kg. The method was applied to the real soil samples around wells of an oilfield; the relative recoveries of the ANY, ANA, FLU, PHE, ANT, FLT, PYR, BaA were 47.12-116.96%, while the recoveries of NAP, CHR, BbF, BkF, BaP, DBA, BPE, IPY were 17.75-63.29%.

• Periodical: Applied Mechanics and Materials (Volumes 190-191)
• Pages: 603-608
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.190-191.603
• Online since: July 2012
• Authors: Chen Zhang, Long Jiang, Chong Meng, Xiao Peng Li, Yu Li
• Keywords: Dispersive Liquid-Liquid Microextraction, Floating Organic Drop, High Performance Liquid Chromatography (HPLC), Polycyclic Aromatic, Ultrasonic Assistant

References

[1] J. L. Durant, W. F. Busby, A. L. Lafleur, B. W. Penman, and C. L. Crespi. Human cell mutagenicity of oxygenated, nitrated and unsubstituted polycyclic aromatic hydrocarbons associated with urban aerosols. Mutation Research, 2006, 37: 123-157.

DOI: 10.1016/s0165-1218(96)90103-2

[2] Wang Xuetong, Jia Ying, Sun Yangzhao, Jiang Yufeng, Wang Fei, Wu Minghong, Sheng Guoying, Jiamo Fu, Distribution, possible source and ecological risk assessment of polycyclic aromatic hydrocarbons in river sediments from a typical contaminated area, Environmental Science, 2010 (31). (in Chinese).

[3] M. Oliva, M. L. González de Canales, C. Gravato, L. Guilhermino, and J. A. Perales. Biochemical effects and polycyclic aromatic hydrocarbons (PAHs) in senegal sole (Solea senegalensis) from a Huelva estuary (SW Spain). Ecotoxicology and Environmental Safety, 2010, 73: 1842-1851.

DOI: 10.1016/j.ecoenv.2010.08.035

[4] S. Gan, E. V. Lau, and H. K. Ng. Remediation of soils contaminated with polycyclic aromatic hydrocarbons (PAHs). Journal of Hazardous Materials, 2009, 172: 532-549.

DOI: 10.1016/j.jhazmat.2009.07.118

[5] W. H. Li, Y. Z. Tian, G. L. Shi, C. S. Guo, X. Li, and Y. C. Feng. Concentrations and sources of PAHs in surface sediments of the Fenhe reservoir and watershed, China. Ecotoxicology and Environmental Safety, 2012, 75: 198-206.

DOI: 10.1016/j.ecoenv.2011.08.021

[6] Jiang Jinhua, Chen Tao, Determination of 39 polybrominated diphenyl ethers in coastal sediments by ultrasonic extraction coupled with gas chromatography-mass spectrometry, Chinese Journal of Analytical Chemistry, 2009(37). (in Chinese).

DOI: 10.3724/sp.j.1123.2012.08020

[7] Liu Meihua, Qiu Bin, Chen Guonan, and Chen Xi, Determination of estrogens in wastewater by ultrasound-assisted ionic liquid dispersive liquid-phase microextraction coupled with high performance liquid chromatography, Analysis and Testing Technology and Instruments, 2009 (15). (in Chinese).

DOI: 10.3724/sp.j.1123.2012.09003

[8] Tong Ling, Zhou Ruize, Wu Shuqi, and Zhang Lingjin, Determination of polycyclic aromatic hydrocarbons in corn using accelerated solvent extraction and gel permeation chromatography with gas chromatography-mass spectrometry, Chinese Journal of Analytical Chemistry, 2009(37). (in Chinese).

DOI: 10.3724/sp.j.1096.2011.00067

[9] Li Xianguo, Yan Guofang, Zhou Xiao, Guo Xinyun, Wang Yan, and Liu Jinyan, Determination of polycyclic aromatic hydrocarbons in seawater using solid phase extraction-high performance liquid chromatography with fluorescent detection, Periodical of Ocean University of China, 2009 (39). (in Chinese).

DOI: 10.1007/s11802-012-1846-5

[10] S. Díez, J. M. Bayona. Determination of Hg and organomercury species following SPME: A review. Talanta, 2008, 77: 21-27.

DOI: 10.1016/j.talanta.2008.06.027

[11] C. Magdalini, P. Elefteria, M. Dionissios, and K. Nicolas. Analysis of polycyclic aromatic hydrocarbons in wastewater trearment plant effluent using hollow fiber liquid-phase microextraction. Chemosphere, 2005, 60: 690-698.

DOI: 10.1016/j.chemosphere.2005.01.040

[12] Liu, X. Du, C. Zhang, Y. Lei, Q Gao, and Y. Li. Determination of estrogenic hormones in water samples using high performance liquid-liquid micro-extraction method based on solidification of floating organic drop and pre-column derivatization. Fresenius Environmental Bulletin, 2011, 20: 1075-1083.

[13] Xu, Z. Ding, L. Lv, D. Song, and Y. Feng. A novel dispersive liquid-liquid microextraction based on solidification of floating organic droplet method for determination of polycyclic aromatic hydrocarbons in aqueous samples. Analytica Chimica Acta, 2009, 636: 28-33.

DOI: 10.1016/j.aca.2009.01.028

[14] M. Leong, S. Huang. Dispersive liquid-liquid microextraction method based on solidification of floating organic drop combined with gas chromatography with electron-capture or mass spectrometry detection. Journal of Chromatography A, 2008, 1211: 8-12.

DOI: 10.1016/j.chroma.2008.09.111

[15] Li Yu, Du Xianyuan, Zhang Chen, Liu Jianlin, and Li Xingchun, Optimization of rapid extraction technique for PAHs in soils based on response surface plot, Guangdong Agricultural Sciences, 2011(23). (in Chinese).
