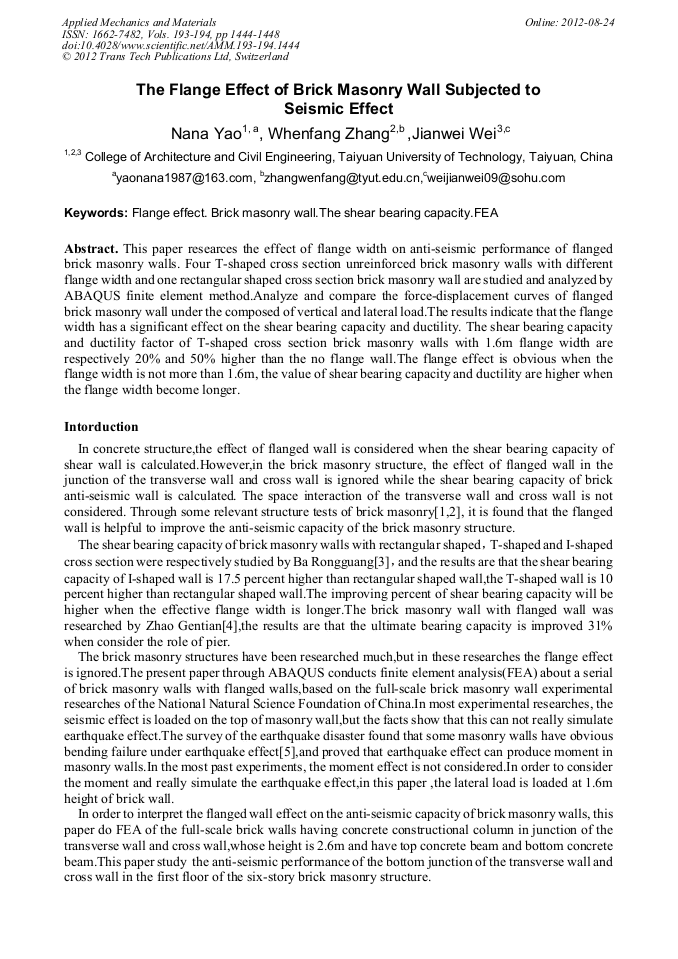

The Flange Effect of Brick Masonry Wall Subjected to Seismic Effect

Abstract:

This paper researces the effect of flange width on anti-seismic performance of flanged brick masonry walls. Four T-shaped cross section unreinforced brick masonry walls with different flange width and one rectangular shaped cross section brick masonry wall are studied and analyzed by ABAQUS finite element method.Analyze and compare the force-displacement curves of flanged brick masonry wall under the composed of vertical and lateral load.The results indicate that the flange width has a significant effect on the shear bearing capacity and ductility. The shear bearing capacity and ductility factor of T-shaped cross section brick masonry walls with 1.6m flange width are respectively 20% and 50% higher than the no flange wall .The flange effect is obvious when the flange width is not more than 1.6m, the value of shear bearing capacity and ductility are higher when the flange width become longer.

• Periodical: Applied Mechanics and Materials (Volumes 193-194)
• Pages: 1444-1448
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.193-194.1444
• Online since: August 2012
• Authors: Na Na Yao, Wen Fang Zhang, Jian Wei Wei
• Keywords: Brick Masonry Wall, Finite Element Analysis (FEA), Flange Effect, Shear Bearing Capacity

References

[1] Chukwuma G. Ekwueme，Mukund Srinivasan and Gary C. Hart:Effect of Flanged Walls on The Seismic Performance of Tall Buildings.The Structural Design of Tall Buildings. 263-277（1997).

DOI: 10.1002/(sici)1099-1794(199712)6:4<263::aid-tal101>3.0.co;2-2

[2] Marwan T. Shedid，Wael W. El-Dakhakhni, M.ASCE and Robert G. Drysdale:Characteristics of Rectangular, Flanged, and End-Confined Reinforced Concrete Masonry Shear Walls for Seismic Design.Structural Engineering.1470-1482(2010).

DOI: 10.1061/(asce)st.1943-541x.0000253

[3] Ba Rongguang: The Calculation about the Shear Bearing Capacity of Unreinforced and Reinforced Masonry Wall.The Journal of Architecture Structure. 41-48 (1985).

[4] Zhao Gentian and Zhou Jie: The Research of Transverse Wall and Pier WorkingTogether to Resist the Shear Force.The Supplement of Engineering Mechanics.839-842(2000).

[5] Zhang Wenfang: Researches on In-plane Flexural Destruction Modes and Earthquake Resistant Advantages by way of Representative Examples.The journal of civil engineering.130-135(2010).

[6] Lv Weirong and Shi Chuxian: Constitutive Relationship of Brick Masonry. The Journal of Architecture Structure .77-79(2006).
