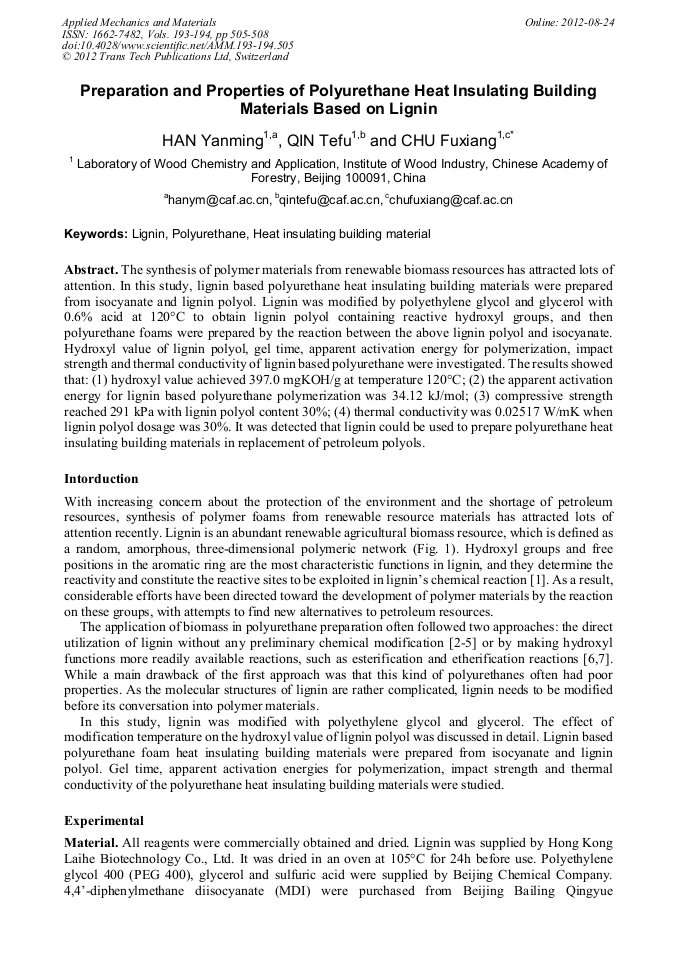

Preparation and Properties of Polyurethane Heat Insulating Building Materials Based on Lignin

Abstract:

The synthesis of polymer materials from renewable biomass resources has attracted lots of attention. In this study, lignin based polyurethane heat insulating building materials were prepared from isocyanate and lignin polyol. Lignin was modified by polyethylene glycol and glycerol with 0.6% acid at 120°C to obtain lignin polyol containing reactive hydroxyl groups, and then polyurethane foams were prepared by the reaction between the above lignin polyol and isocyanate. Hydroxyl value of lignin polyol, gel time, apparent activation energy for polymerization, impact strength and thermal conductivity of lignin based polyurethane were investigated. The results showed that: (1) hydroxyl value achieved 397.0 mgKOH/g at temperature 120°C; (2) the apparent activation energy for lignin based polyurethane polymerization was 34.12 kJ/mol; (3) compressive strength reached 291 kPa with lignin polyol content 30%; (4) thermal conductivity was 0.02517 W/mK when lignin polyol dosage was 30%. It was detected that lignin could be used to prepare polyurethane heat insulating building materials in replacement of petroleum polyols.
