Organic Modification and Ball Milling of Bentonite and its Retention Properties

Abstract:

Stearyltrimethyl ammonium bromide(STAB) was used for organic modification of bentonite and then ball milled the modified bentonite. The organically modified bentonite was analyzed by FT-IR and XRD. The results show that the stearyltrimethyl ammonium bromide has been interalated into the layers of bentonite. The layer distance of the bentonite is increased from 1.256nm to 2.694nm. The appropriate experimental conditions of interplanar spacing increasing were the dosage of STAB 40%, reaction time 4h, temperature 75°C. The ball milled organically modified bentonite was analyzed by SEM. The results show that the particle mainly reach submicron to nanometer when ball mill 2h. The particle size distribution range is from 100nm to 500nm. Ball milled organically modified bentonite/ cationic guar gum(CGG) can improve retention rate of paper-process reconstituted tobacco pulp obviously than organically modified bentonite/CGG because of smaller grains and better unigormity of ball milled bentonite.

You might also be interested in these eBooks

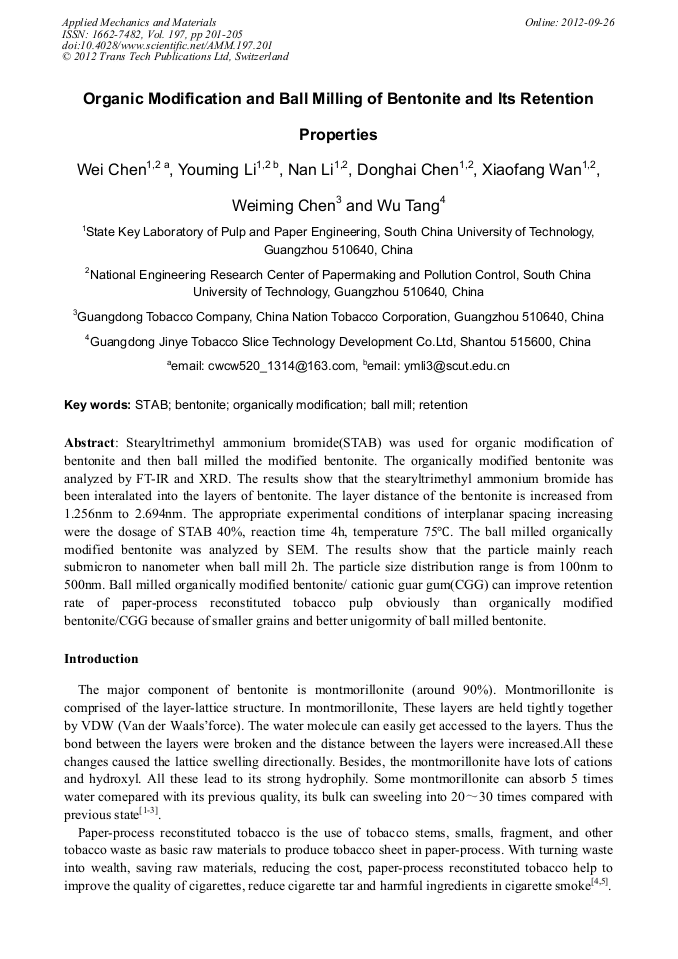

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 197)

Pages:

201-205

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.197.201

Citation:

Cite this paper

Online since:

September 2012

Authors:

Wei Chen, You Ming Li, Nan Li, Dong Hai Chen, Xiao Fang Wan, Wei Ming Chen, Wu Tang

Keywords:

Ball Mill, Bentonite, Organically Modification, Retention, STAB

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wang Duoren. Development of Nanometer Wilkinite [J]. China Powder Science and Technology, 2002, 8(4): 33-37.

Google Scholar

[2] Xia Xinxing, Peng Yuxiu, Li Zhongzheng. CPAM/Bentonite Micropartical Retention and Drainage Aid System [J]. China Pulp and Paper, 2003, (01): 42-45.

Google Scholar

[3] Liu Na, Liu Wenxia. Study of modified bentonite in CPAM/bentonite microparticle retention system [J]. Paper and Papermaking, 2005, 24(2): 64-67.

Google Scholar

[4] Su Wenqiang, Yang Kaiji, Zhu Minghua, et al. Synthesis of a novel CPAM and its synergetic effect with bentonite on furnish retention and drainage [J]. Paper Chemicals, 2006, 18(1): 13-16.

Google Scholar

[5] Liu W, Ni Y, Xiao H. Cationic montmorillonite: Preparation andsynergy with anionic polymer in filler flocculation [J]. Journal of Pulp and Paper Science, 2003, 29 (5) : 145-149.

Google Scholar
