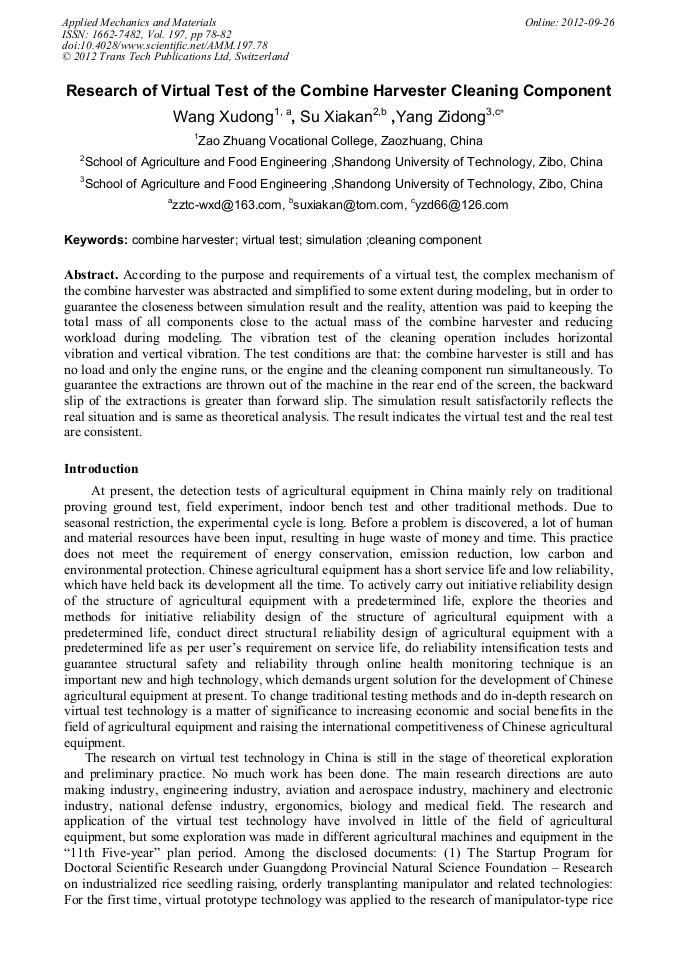

Research of Virtual Test of the Combine Harvester Cleaning Component

Abstract:

According to the purpose and requirements of a virtual test, the complex mechanism of the combine harvester was abstracted and simplified to some extent during modeling, but in order to guarantee the closeness between simulation result and the reality, attention was paid to keeping the total mass of all components close to the actual mass of the combine harvester and reducing workload during modeling. The vibration test of the cleaning operation includes horizontal vibration and vertical vibration. The test conditions are that: the combine harvester is still and has no load and only the engine runs, or the engine and the cleaning component run simultaneously. To guarantee the extractions are thrown out of the machine in the rear end of the screen, the backward slip of the extractions is greater than forward slip. The simulation result satisfactorily reflects the real situation and is same as theoretical analysis. The result indicates the virtual test and the real test are consistent.

• Periodical: Applied Mechanics and Materials (Volume 197)
• Pages: 78-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.197.78
• Online since: September 2012
• Authors: Xu Dong Wang, Xia Kan Su, Zi Dong Yang
• Keywords: Cleaning Component, Combine Harvester, Simulation, Virtual Test

References

[1] Jingxia Jia, Dongxing Zhang, Xinming Hao , Hanwu Liu: Transactions of the Chinese Society of Agricultural Machinery Vol. 36, 11(2005) , p.64.

[2] Jie Li, Chuliang Yan, Fangfei Yang: Transactions of the Chinese Society of Agricultural Machinery Vol. 37, 10(2006) , p.74.

[3] Ping Xia, Song Yin, Liqing Chen, Dequan Zhu, Bing Li: Transactions of the Chinese Society of Agricultural Machinery Vol. 38, 3(2007) , p.65.

[4] Lizhang Xu , Yaoming Li , Chaoxing Ma, Zengfu He , Feng Lü: Transactions of the ChineseSociety of Agricultural Machinery Vol. 39, 8(2008) , p.54.

[5] Ni Chen, Yongjian Gong, Dejun Chen, Hongjuan Yu, Yongsen Xiong: Transactions of the Chinese Society of Agricultural Machinery Vol. 39, 9(2008) , p.60.

[6] T. Suzuki: Proc. IASS Symp. vol. 2 (1995), p.915.

[7] B. Tabarrok , Z. Qin: Microcomputers in civil engineering vol. 8, Elsevier Science Publishers Ltd, Amsterdam (1993), p.377.

[8] H. Tsubota , A. Yoshida: Proc. IASS Symposium, Madrid vol. 3 (1989), p.11.

[9] Yagi T.: figuration of membrane structures (in Japanese). PhD Dissertation. Nagoya (Japan): Nagoya National University, (1998).

[10] Mahmoud Omid, Majid Lashgari, Hossein Mobli, Reza Alimardani, Saeid Mohtasebi, Reza Hesamifard: Expert Systems with Applications, Vol. 37(2010), p.7080.

DOI: 10.1016/j.eswa.2010.03.010

[11] K Maertens, J De Baerdemaeker : Mathematics and Computers in Simulation, Vol. 65(2004), p.49.
