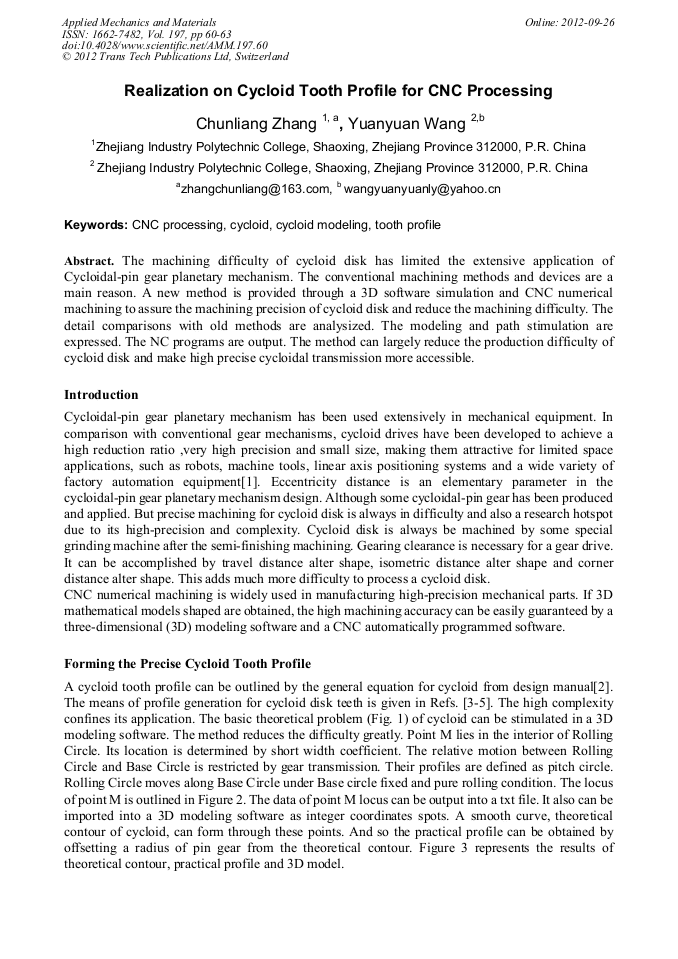

Realization on Cycloid Tooth Profile for CNC Processing

Abstract:

The machining difficulty of cycloid disk has limited the extensive application of Cycloidal-pin gear planetary mechanism. The conventional machining methods and devices are a main reason. A new method is provided through a 3D software simulation and CNC numerical machining to assure the machining precision of cycloid disk and reduce the machining difficulty. The detail comparisons with old methods are analysized. The modeling and path stimulation are expressed. The NC programs are output. The method can largely reduce the production difficulty of cycloid disk and make high precise cycloidal transmission more accessible.

• Periodical: Applied Mechanics and Materials (Volume 197)
• Pages: 60-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.197.60
• Online since: September 2012
• Authors: Chun Liang Zhang, Yuan Yuan Wang
• Keywords: CNC Processing, Cycloid, Cycloid Modeling, Tooth Profile

References

[1] Botsiber, D.W. and Kingston, L., Design and performance of the cycloid speed reducer, Machine Design (1956), pp.65-69.

[2] Editorial Board of mechanical Design Manual. Mechanical design manual (separate) [M]. Beijing: China Machine Press, (2007).

[3] Malhotra, S. K., and Parameswaran, M. A., 1983, Analysis of a Cycloid Speed Reducer, Mech. Mach. Theory, 18(6), p.491–499.

DOI: 10.1016/0094-114x(83)90066-6

[4] Litvin, F., 1989, Theory of Gearing, NASA, Washington DC.

[5] Blanche, J. G., and Yang, D. C. H., 1989, Cycloid Drives with Machining Tolerances, J. Mech. Trans. Autom. Des., 111, p.337–344.

DOI: 10.1115/1.3259004

[6] Xu Yongyuan. Solidworks Automation Solutions (CamWorks) [M]. Taiwan: Acore Press, (2009).
