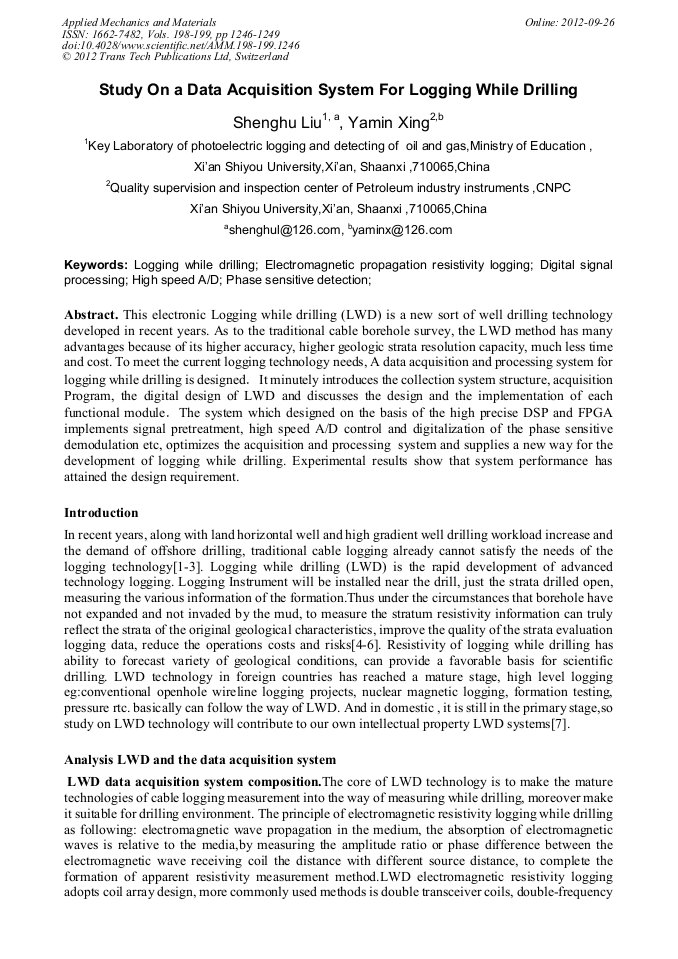

Study on a Data Acquisition System for Logging while Drilling

Abstract:

This electronic Logging while drilling (LWD) is a new sort of well drilling technology developed in recent years. As to the traditional cable borehole survey, the LWD method has many advantages because of its higher accuracy, higher geologic strata resolution capacity, much less time and cost. To meet the current logging technology needs, A data acquisition and processing system for logging while drilling is designed．It minutely introduces the collection system structure, acquisition Program, the digital design of LWD and discusses the design and the implementation of each functional module．The system which designed on the basis of the high precise DSP and FPGA implements signal pretreatment, high speed A/D control and digitalization of the phase sensitive demodulation etc, optimizes the acquisition and processing system and supplies a new way for the development of logging while drilling．Experimental results show that system performance has attained the design requirement.

• Periodical: Applied Mechanics and Materials (Volumes 198-199)
• Pages: 1246-1249
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.198-199.1246
• Online since: September 2012
• Authors: Sheng Hu Liu, Ya Min Xing
• Keywords: Digital Signal Processing, Electromagnetic Propagation Resistivity Logging, High Speed A/D, Logging while Drilling, Phase Sensitive Detection

References

[1] Zou Dejiang, Fan Yiren and Deng Shaogui. The latest development of logging while drilling technology. Petroleum Instruments. xi'an. 2005，19(5)，: 1-4. In Chinese.

[2] LIU Si-xin, TONG Wen-qi. The situation and progress of electromagnetic well logging. Progress In Geophysics, Beijing. 2004, 19(2): 235-237. In Chinese.

[3] Clark, Brian, Allen, David F etc . Electromagnetic Propagation Logging While Drilling: Theory and Experiment[C] ． Society of Petroleum Engineers, 1998: 20-27.

[4] MA Zhe, LI Jun, WANG Chao-yang, CHENG Guo-qiang. Principle of Tool Resistivity Induction MWD and Its In-situ Application. Xi'an. Well Logging Technology, 2004，28(2): 155-157. In Chinese.

[5] D.T. Macune etc．A Compact Compensated Resistivity Tool for Logging While Drilling[C]. Society of Petroleum Engineers，2006: 1-14.

DOI: 10.2118/98106-ms

[6] CHEN Ai-xin Instrument analysis of resistivity logging-while-drilling. Natural Gas Industry, 2007, 27(5): 61-62. In Chinese.

[7] LIU Zhi-di, CUI Xue-jun. The method of recognizing aeolotropy influence and inversing for logging while drilling resistivity. Natural Gas Industry,. 2009, 29(2): 31-33. In Chinese.

[8] Huang Zhiwei. he system design and practice [M]. Beijing. Electronic Industry Press, 2005: 35-52. In Chinese.

[9] Xia Hongquan, Chen Ping, Fan Xiangyu. RESEARCH ON THE SIMULATION OF LWD CURVES AND ITS GEOSTEERING APPLICATION. Natural Gas Industry. 2003; 23(3): 51-55. In Chinese.
