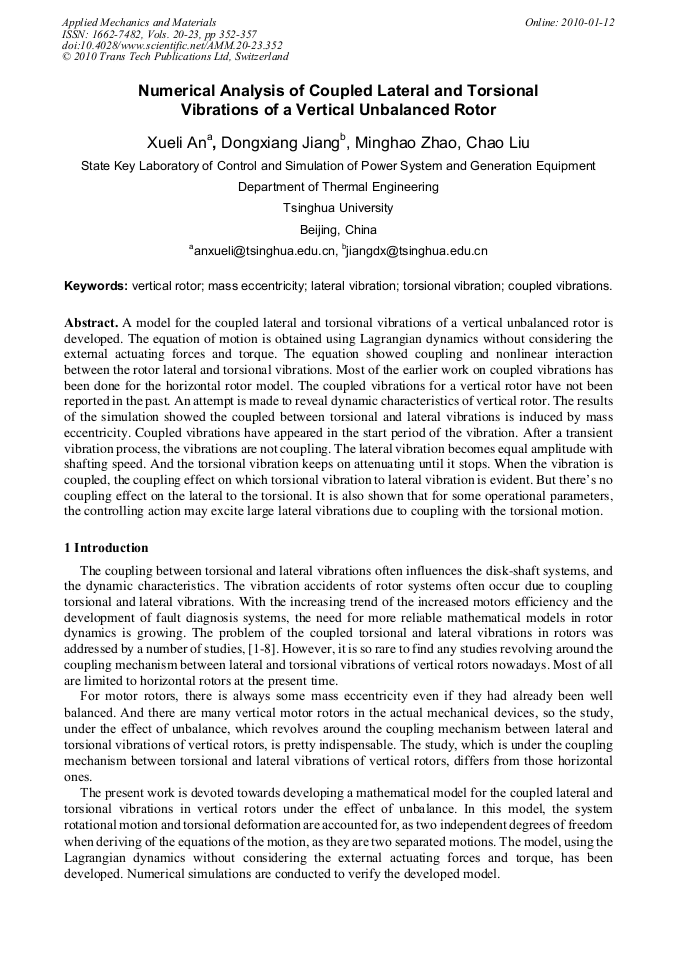

Numerical Analysis of Coupled Lateral and Torsional Vibrations of a Vertical Unbalanced Rotor

Abstract:

A model for the coupled lateral and torsional vibrations of a vertical unbalanced rotor is developed. The equation of motion is obtained using Lagrangian dynamics without considering the external actuating forces and torque. The equation showed coupling and nonlinear interaction between the rotor lateral and torsional vibrations. Most of the earlier work on coupled vibrations has been done for the horizontal rotor model. The coupled vibrations for a vertical rotor have not been reported in the past. An attempt is made to reveal dynamic characteristics of vertical rotor. The results of the simulation showed the coupled between torsional and lateral vibrations is induced by mass eccentricity. Coupled vibrations have appeared in the start period of the vibration. After a transient vibration process, the vibrations are not coupling. The lateral vibration becomes equal amplitude with shafting speed. And the torsional vibration keeps on attenuating until it stops. When the vibration is coupled, the coupling effect on which torsional vibration to lateral vibration is evident. But there’s no coupling effect on the lateral to the torsional. It is also shown that for some operational parameters, the controlling action may excite large lateral vibrations due to coupling with the torsional motion.

• Periodical: Applied Mechanics and Materials (Volumes 20-23)
• Pages: 352-357
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.20-23.352
• Online since: January 2010
• Authors: Xue Li An, Dong Xiang Jiang, Ming Hao Zhao, Chao Liu
• Keywords: Coupled Vibration, Lateral Vibration, Mass Eccentricity, Torsional Vibration, Vertical Rotor

References

[1] Z.W. Yuan, F.L. Chu and Y.L. Lin: External and Internal Coupling Effects of Rotor's Bending and Torsional Vibrations under Unbalances, Journal of Sound and Vibration, Vol. 299, no. 1-2, (2007), pp.339-347.

DOI: 10.1016/j.jsv.2006.06.054

[2] S.C. Hsieh, J.H. Chen and A.C. Lee: A Modified Transfer Matrix Method for the Coupling Lateral and Torsional Vibrations of Symmetric Rotor-bearing Systems, Journal of Sound and Vibration, Vol. 289, no. 1-2, (2006), pp.294-333.

DOI: 10.1016/j.jsv.2005.02.004

[3] M. Li and L. Yu: Analysis of the Coupled Lateral Torsional Vibration of a Rotor-bearing System with a Misaligned Gear Coupling, Journal of Sound and Vibration, Vol. 243, no. 2, (2001), pp.283-300.

DOI: 10.1006/jsvi.2000.3412

[4] A. K. Darpe, K. Gupta and A. Chawla: Coupled Bending, Longitudinal and Torsional Vibrations of a Cracked Rotor, Journal of Sound and Vibration, Vol. 269, no. 1-2, (2004), pp.33-60.

DOI: 10.1016/s0022-460x(03)00003-8

[5] B. O. Al-Bedoor: Modeling the Coupled Torsional and Lateral Vibrations of Unbalanced Rotors, Computer Methods in Applied Mechanics and Engineering, Vol. 190, no. 45, (2001), pp.5999-6008.

DOI: 10.1016/s0045-7825(01)00209-2

[6] M. A. Mohiuddin and Y. A. Khulief: Coupled Bending Torsional Vibration of Rotors Using Finite Element, Journal of Sound and Vibration, Volume 223, no. 2, (1999), pp.297-316.

DOI: 10.1006/jsvi.1998.2095

[7] Z. Luo, X. Sun and J. N. Fawcett: Coupled Torsional-lateral-axial Vibration Analysis of a Geared Shaft System Using Substructure Synthesis, Mechanism and Machine Theory, Vol. 31, no. 3, (1996), pp.345-352.

DOI: 10.1016/0094-114x(95)00012-n

[8] A.S. Yigit and A.P. Christoforou: Coupled Torsional and Bending Vibrations of Actively Controlled Drillstrings, Journal of Sound and Vibration. Vol. 234, no. 1, (2000), pp.67-83.

DOI: 10.1006/jsvi.1999.2854
