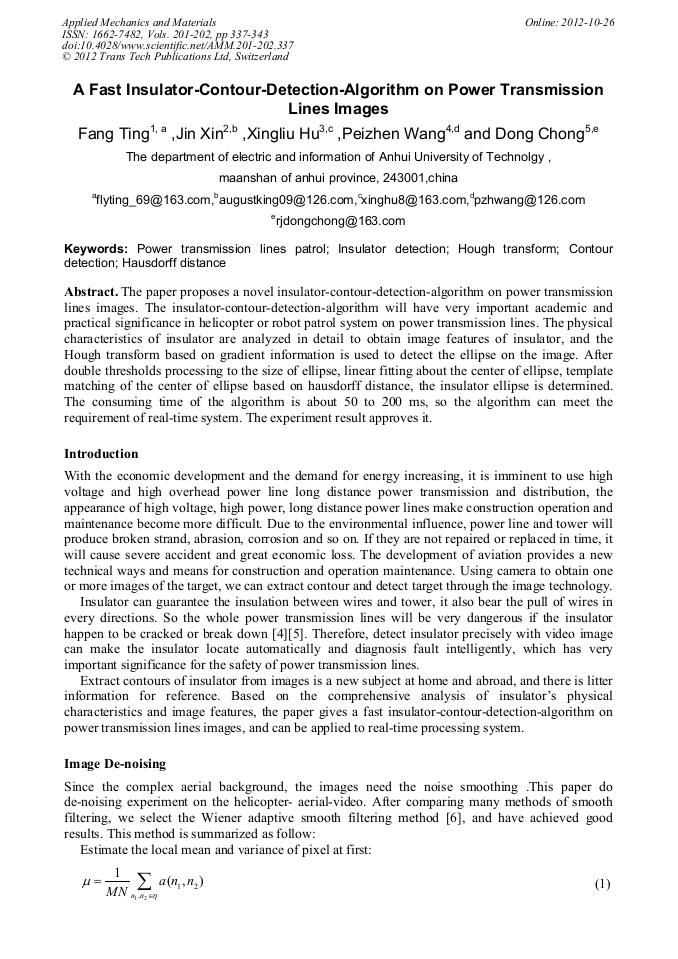

A Fast Insulator-Contour-Detection-Algorithm on Power Transmission Lines Images

Abstract:

The paper proposes a novel insulator-contour-detection-algorithm on power transmission lines images. The insulator-contour-detection-algorithm will have very important academic and practical significance in helicopter or robot patrol system on power transmission lines. The physical characteristics of insulator are analyzed in detail to obtain image features of insulator, and the Hough transform based on gradient information is used to detect the ellipse on the image. After double thresholds processing to the size of ellipse, linear fitting about the center of ellipse, template matching of the center of ellipse based on hausdorff distance, the insulator ellipse is determined. The consuming time of the algorithm is about 50 to 200 ms, so the algorithm can meet the requirement of real-time system. The experiment result approves it.

• Periodical: Applied Mechanics and Materials (Volumes 201-202)
• Pages: 337-343
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.201-202.337
• Online since: October 2012
• Authors: Ting Fang, Xin Jin, Xing Liu Hu, Pei Zhen Wang, Chong Dong
• Keywords: Contour Detection, Hausdorff Distance, Hough Transform (HT), Insulator Detection, Power Transmission Lines Patrol

References

[1] Z.M. Huang: International Power, Vol. 4 (2000), No.3, pp.29-33.

[2] P. Wang, G. Li, K. Zhu: SiChuan Power Technology, Vol. 25 (2002) No.1, pp.4-6.

[3] Qiu guoxin: Technology, Vol. 31 (2005) No.5, p.29.

[4] W. Song, L.J. Zhao, C.R. L: High-Voltage Technology, Vol. 31 (2005) No.5, p.29.

[5] Y. Yang, Y.F. Chen, Y.P. Hong: Nondestructive Testing, Vol. 25 (2003) No.7, pp.337-357.

[6] Rafael C Gonzaiez, etc: Digital image processing (Publishing of Electronic Industry. Second edition, 2007).

[7] J.F. Canny: IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 8 (1986) No. 6, pp.658-663.

[8] L.J. Zhang: Image Analysis (Tsinghua university publish house, China 2005).

[9] D.P. Huttenlocher, C.A. Klanderman: IEEE Tran PAMI, Vol. 15 (1993) No.9, pp.850-863.

[10] M.P. Dubuisson, A.K: Proc 12th Int Conf. Pattern Recognition (1994), pp.566-568.
